PM SERIES FORCED DRAFT EVAPORATIVE CONDENSERS
Appendix A

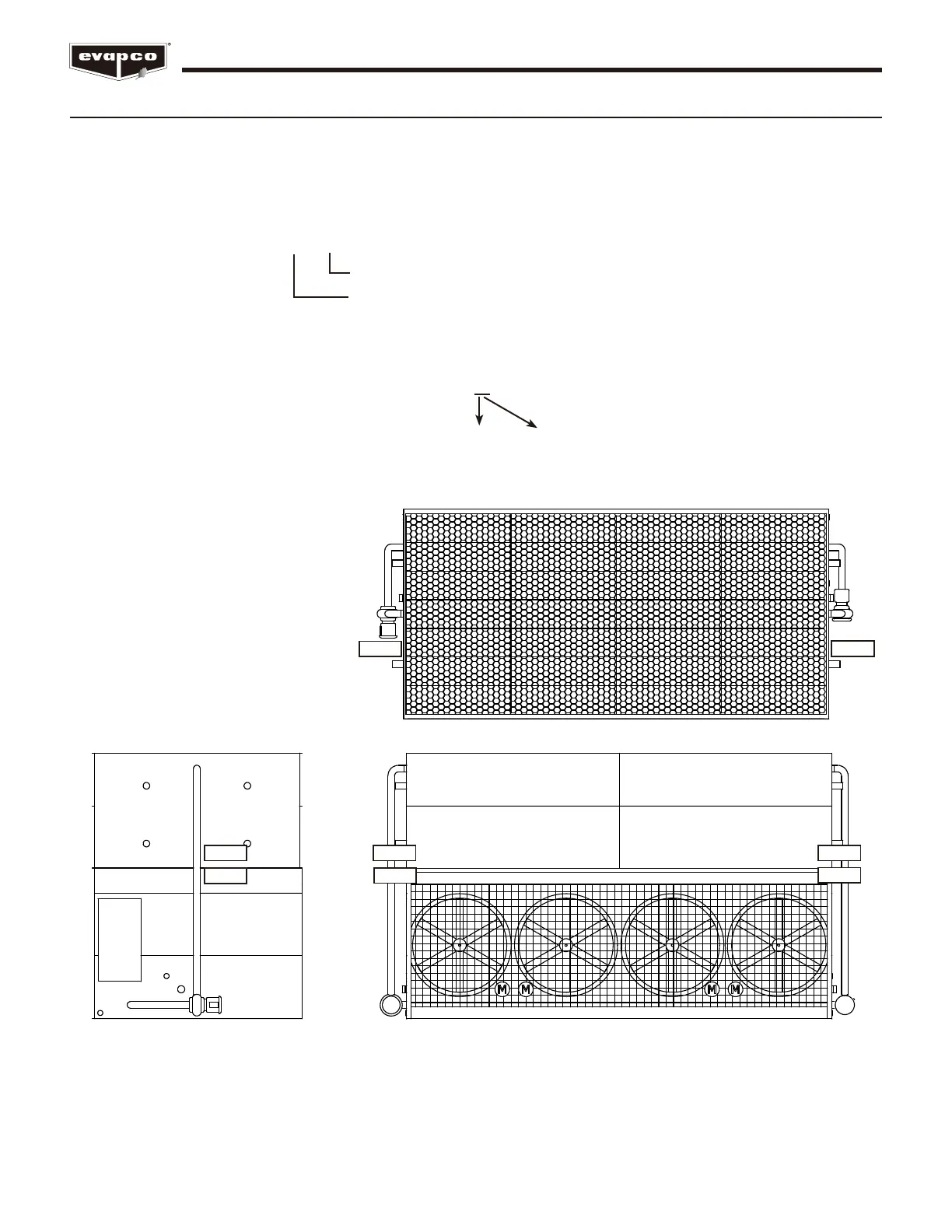

Units are provided with match markings on each section. Standard match marking location is at the rigging seam on the connection face.
Standard match marking designation is shown below:
XX - Y
Cell Number Designator
Last 2 Digit of Serial Number
Example:
Serial Number:
23p123456
Number of Casing Sections:
2
Match Marks:
EVAPCO, INC.
MODEL #
DWG. #
SERIAL #
DATE
REV.SCALE
OPERATING
WEIGHT
HEAVIEST SECTION
WEIGHT
NO. OF SHIPPING SECTIONS
EVAPORATIVE CONDENSER
N.T.S. -CEW122410-DRC-ST
39960 lbs+ [18126] kg+ 51930 lbs+ [23555] kg+ 14830 lbs+ [6727] kg+ 3
EVAPCO, INC.
MODEL #
DWG. #
SERIAL #
DATE
REV.SCALE
OPERATING
WEIGHT
HEAVIEST SECTION
WEIGHT
NO. OF SHIPPING SECTIONS
EVAPORATIVE CONDENSER
N.T.S. -CEW122410-DRC-ST
39960 lbs+ [18126] kg+ 51930 lbs+ [23555] kg+ 14830 lbs+ [6727] kg+ 3
EVAPCO, INC.
MODEL #
DWG. #
SERIAL #
DATE
REV.SCALE
OPERATING
WEIGHT
HEAVIEST SECTION
WEIGHT
NO. OF SHIPPING SECTIONS
EVAPORATIVE CONDENSER
N.T.S. -CEW122410-DRC-ST
39960 lbs+ [18126] kg+ 51930 lbs+ [23555] kg+ 14830 lbs+ [6727] kg+ 3
56-1
56-1
56-1
56-1
56-1
56-2
56-2
56-2
Cell #1: 56 - 1 Cell #2: 56 - 2
