PM SERIES FORCED DRAFT EVAPORATIVE CONDENSERS
LIFTING
U-BOLTS
COIL
ANGLE WITH
HORIZONTAL
MUST
EXCEED
60°
H

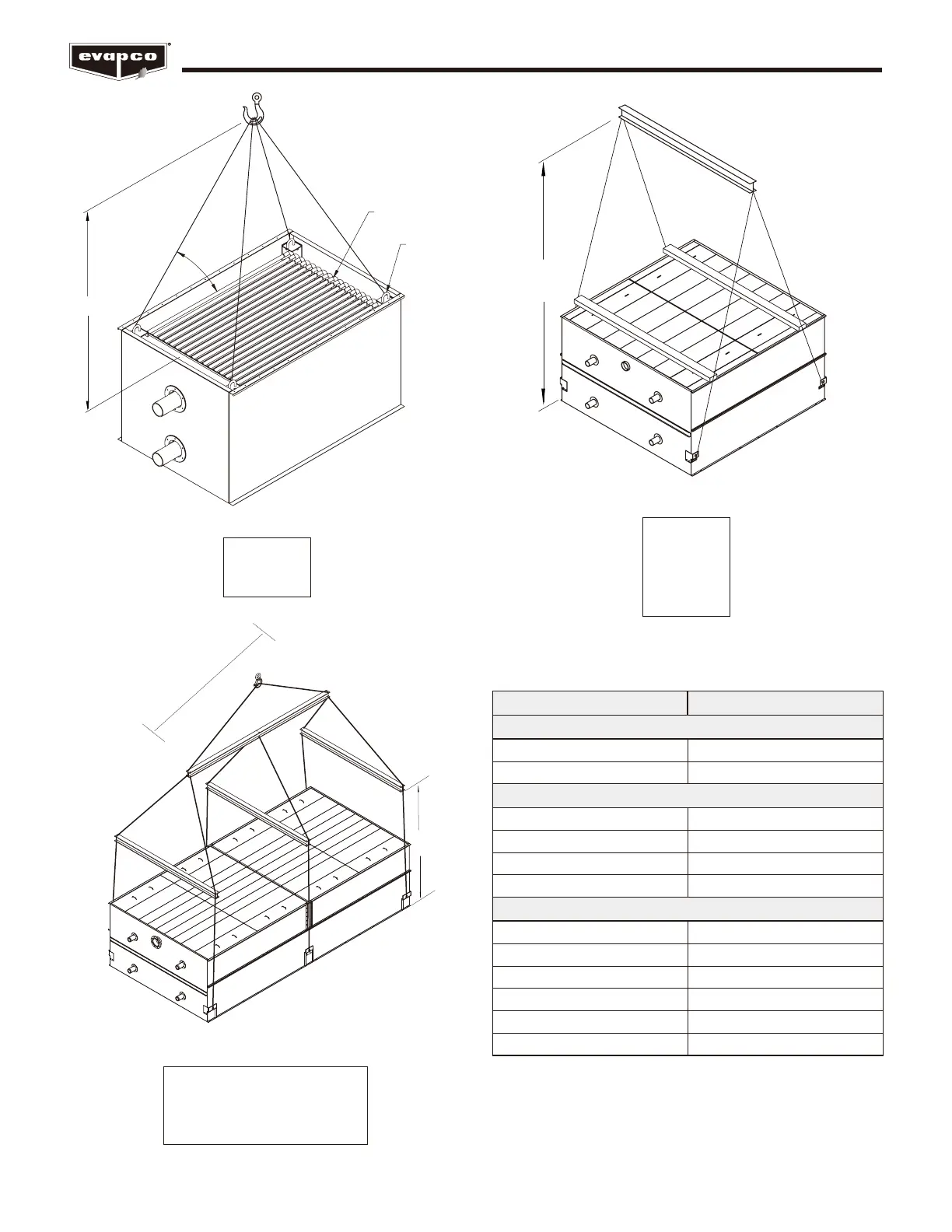

Figure 9 – Large Casing Section (5.5m Long and Up)
BOX SIZES:
3m x 5.5m, 3m x 11m
3.6m x 5.5m, 3.6m x 6m
3.6m x 11m, 3.6m x 12.2m
Figure 7 – Small, Single Casing Sections
BOX SIZES:
1.9m x 3.6m
1.9m x 5.5m
022-02586
PMCE Casing Rigging
H
18’ min
H
Figure 8 – Large Casing Sections (3.6m Long Sections)
BOX SIZES:
3m x 3.6m
3m x 7.3m
3.6m x 3.6m
3.6m x 7.3m
Table 4 – Minimum “H” Dimension for Coil Casing Section
(See Table 2 for model numbers corresponding to box size)
Box Size “H” Dimension (m)
1.9m Wide Models
6’ x 12’ (1.9m x 3.6m) 3.6
6’ x 18’ (1.9m x 5.5m) 5.2
3m Wide Models
10’x12’ (3m x 3.6m) 4.6
10’x18’ (3m x 5.5m) 2.7
10’x24’ (3m x 7.3m) 4.6
10’x36’ (3m x 11m) 2.7
3.6m Wide Models
12’ x 12’ (3.6m x 3.6m) 4.6
12’ x 18’ (3.6m x 5.5m) 2.7
12’ x 20’ (3.6m x 6m) 2.7
12’ x 24’ (3.6m x 7.3m) 4.6
12’ x 36’ (3.6m x 11m) 2.7
12’ x 40’ (3.6m x 12.2m) 2.7
