035-15266-003 Rev. A (0804)
A
E13
2 SPADE (INSUL)TERMINALS
USED WHEN CHANGING SPEEDS
BLOWER
RELAY
CAPACITOR
4-SPEED BLOWER
EB SERIES FURNACES
GRN
WHT
BLK
YEL
FUSE
BLK
CIRCUIT #1
BREAKER
BLEND AIR
CONTROL BOX
HEAT/COOL
T'STAT
CONDUNIT
CONTACTOR
A
240 VAC
• 60 Hz
I PHASE
SINGLE BRANCH
C]RCUIT SERVICE
GND
LUG MODEL: EB12B
ELEMENTS
NOTE:IF ANY OF THE ORIGINAL WIRE SUPPLIED
WITH THIS UNIT MUST BE REPLACED, IT
MUST BE REPLACED WITH TYPE 105°C
THERMOPLASTIC OR ITS EQUIVALENT.
FACTORY WIRING SHOWN SOLID, FIELD
WIRING SHOWN BROKEN,
WIRING MUST CONFORM TO LOCALCODES
APPROVED FOR CU CONDUCTORS ONL_
LIMIT
SWITCHES
3,O,E, OUTPUT CAPACITY - BTU
V_AX,MOTOR-FLA
BINGLE BRANCH
31RCUIT SERVICE
qOMINAL CIRCUIT LOAD-AMPS
NIRE SIZE (75 ° C) COPPER
NIRE SIZE (60 ° C) COPPER
V_AX,FUSE SIZE (OR CB) -AMPS
240 VAC - 60 HZ - 1 PHASE
39,000
4,0
2 LEADS + 1 GROUND
50,7
#6
#4
7O

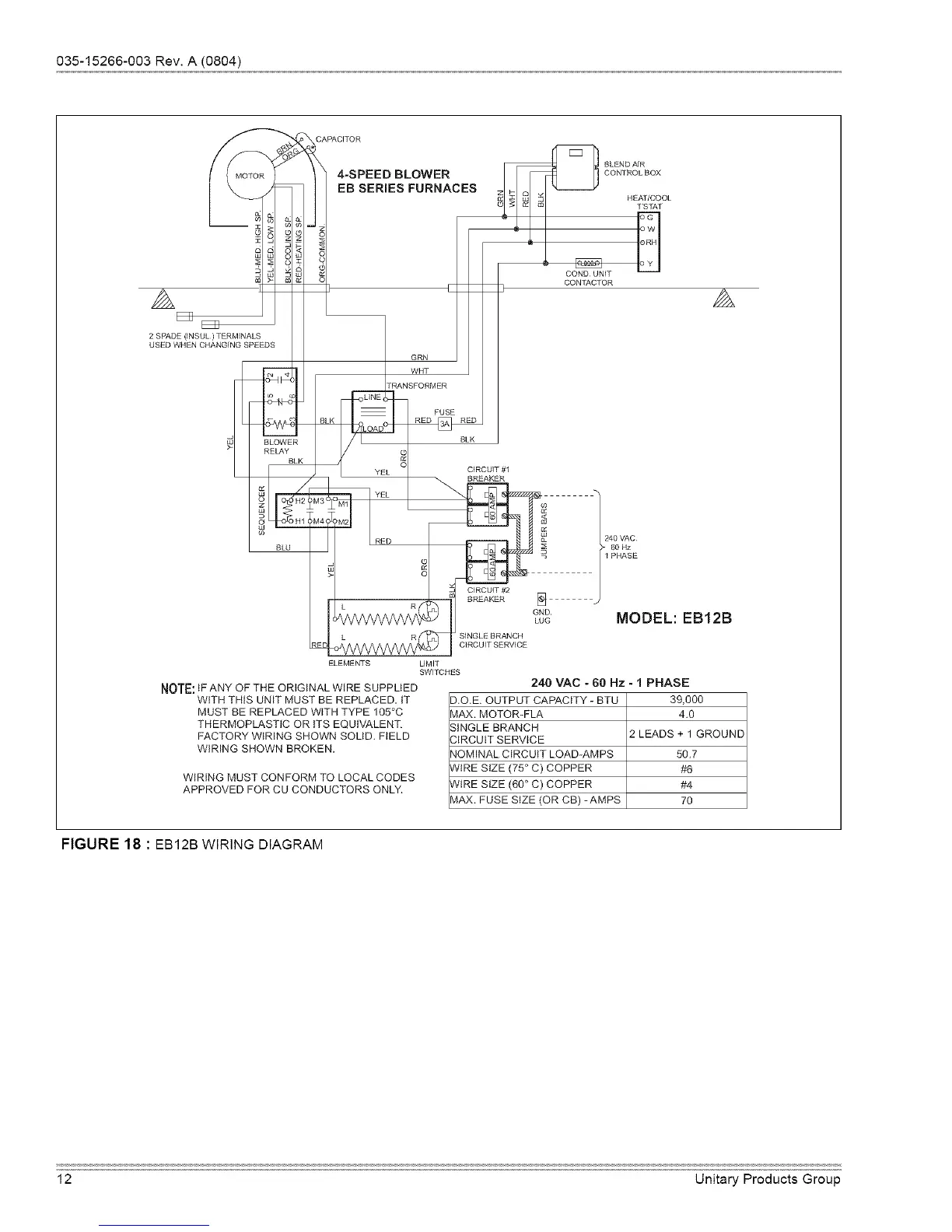

FIGURE 18 : EB12BWIRING DIAGRAM
12 Unitary Products Group
