11
In compliance with current safety standards, contact with the electrical parts of the oven must not
be possible once it has been installed.
All parts, which ensure the safe operation of the appliance, must be removable only with the aid of a
tool.
To fasten the oven to the cabinet, open the door of the oven and attach it by inserting the 4 wooden
screws into the 4 holes located on the perimeter of the frame.
Electrical Connection
Those ovens equipped with a three-pole power supply cable are designed to operate with an
alternating current .The wire for earthling the appliance is yellow-green in color.

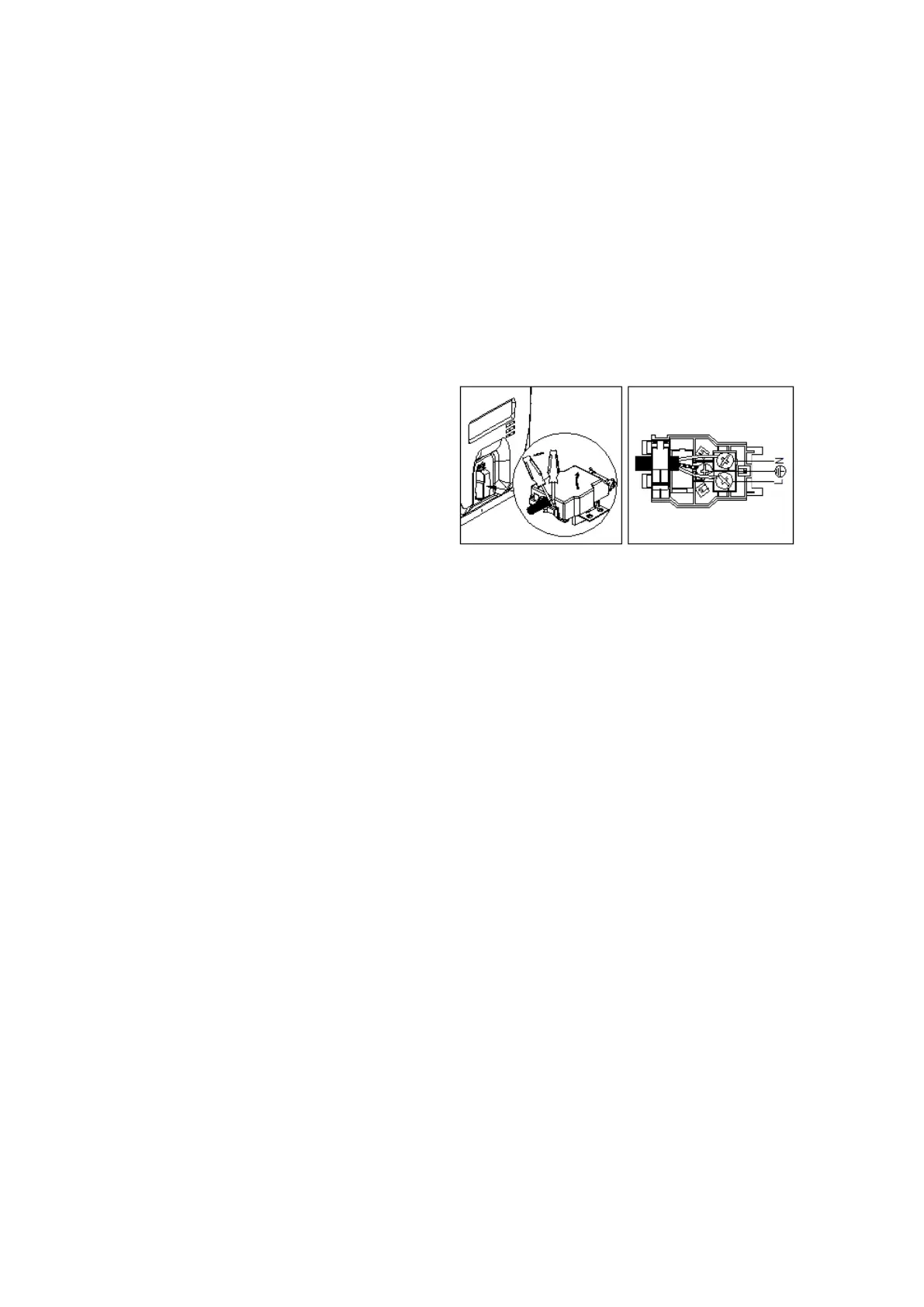

Fitting on a Power Supply Cable
• Opening the terminal board:
· Using a screwdriver ,prize the bolt on the side tabs of the
• terminal board cover ;
· Unscrew the bolt, pull open
the cover of the terminal
board .
• To install the cable, proceed as follows:
· Remove the wire clamp screw
and the three contact screws
L-N -
· Fasten the wires
• beneath the screw heads using the following color scheme :Blue (N) Brown (L) Yellow-Green
· Fasten the supply cable in place with the clamp and close the cover of the terminal
board .
• Connecting the supply cable to the mains
• Install a standardized plug corresponding to the load indicated on the data plate. When
connecting the cable directly to the mains, install an omni polar circuit breaker with a
minimum contact opening of 3 mm between the appliance and the mains .The omni polar
circuit breaker should be sized according to the load and should comply with current
regulations (the earth wire should not be interrupted by the circuit breaker).
• The supply cable should be positioned so that it does not reach a temperature of more than
50℃with respect to the room temperature ,anywhere along its length , or protected by
insulation sleeping having an appropriate rating.
• Before making the connection, check that:
· The electrical safety of this appliance can only be guaranteed if the cooker is
correctly and efficiently earthed ,in compliance with regulations on electrical safety.
Always ensure that the earthling is efficient; if you have any doubts call in a qualified
technician to check the system .The manufacturer declines all responsibility for
damage resulting from a system which has not been earthed.
· Before plugging the appliance into the mains ,check that the specifications indicated
on the date plate (on the appliance and /or packaging )correspond to those of the
electrical mains system of your home .
· Check that the electrical capacity of the system and sockets will support the
maximum power of the appliance ,as indicated on the data plate .If you have any
doubts, call in a qualified technician.
· If the socket and appliance plug are not compatible ,have the socket replaced with a
suitable model by a qualified technician . The latter, in particular, will also have to
ensure that the cross section of the socket cables are suitable for the power
absorbed by the appliance. The use of adapters, multiple sockets and /or extensions,
is not recommended. If their use cannot be avoided, remember to use only single or
