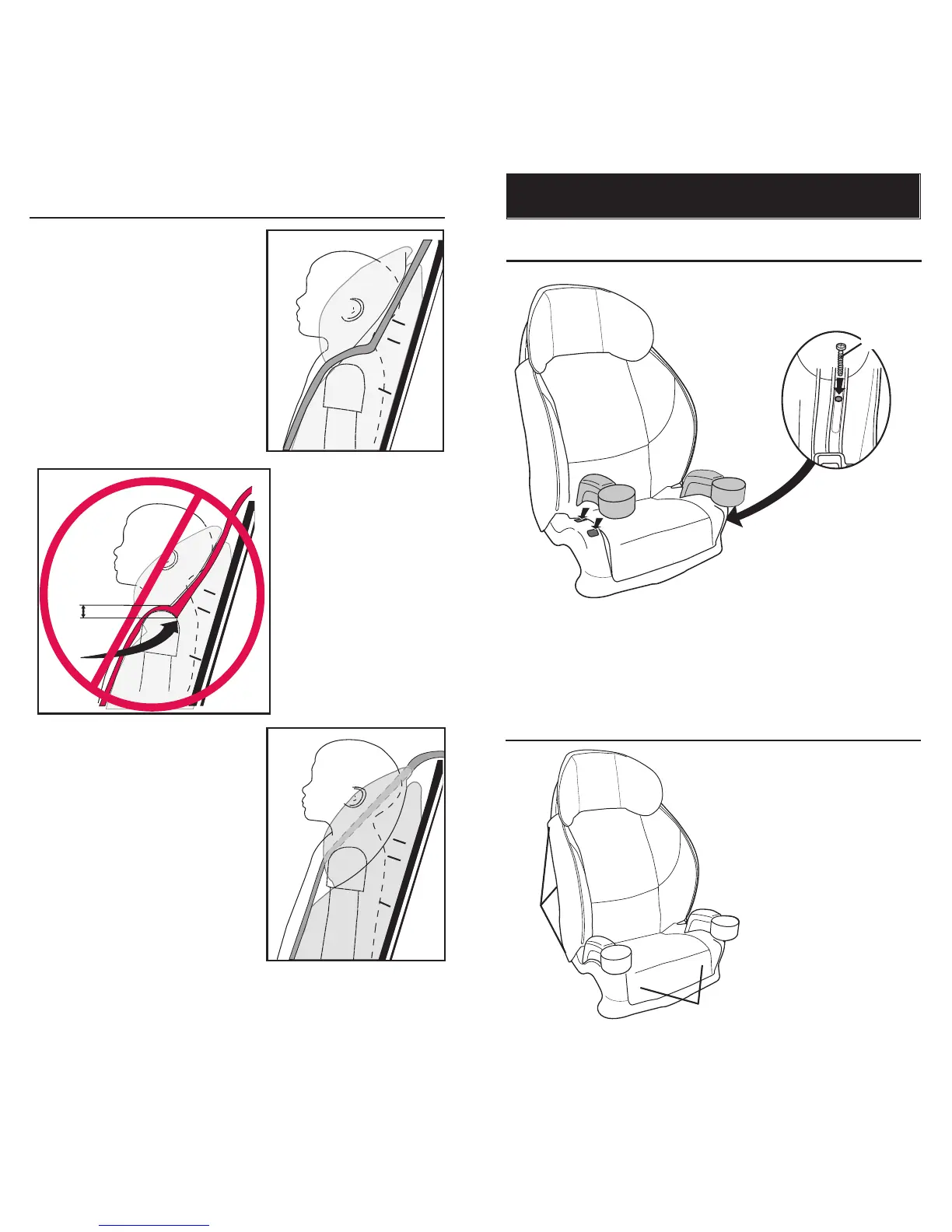

Installing the Cup Holders
14
General Information
Removing Seat Pad
Disconnect six J-clips
and two retaining
strips. Remove the
seat pad.
Retaining
Strips
J-clips
Place each cup holder
onto the seat, then
turn the seat over
and secure each cup
holder with a screw, as shown. Make sure each cup
holder is attached securely in place.
Note: Do not overtighten the screw or use a power tool
to install.
Shoulder belt routing while in booster
mode
While the seat is used in booster
mode the shoulder belt must be
routed over the child’s shoulder.
The belt must pass under the
head rest, between the head rest
and the seat as long as the child’s
shoulders are at or below the
opening betweeen the head rest
and shell.
If the child’s shoulders
are high enough that
routing the shoulder
belt under the head
rest causes the belt to
be pulled down the
back side of the child’s
shoulder (before passing
through the head rest),
the belt should not be
routed between the seat
and the headrest.
If the shoulder height causes the
belt to route behind the back
and the top of the ears are still
at or below the top of the head
rest, the shoulder belt should be
routed on top of the head rest.
15
