Eventide Reverb 2016 - Rear Panel Connections; Footpedal, Power, and MIDI Connectors; Digital and Analog I;O Ports; System Parameters and Specifications

Eventide, Inc. • One Alsan Way • Little Ferry NJ 07643 • (201) 641-1200
© Copyright 2003, Eventide, Inc. Eventide Part No. 141073 Rev 1
MIDI IN and OUT
Footpedal: momentary
1/4” TRS phone jack
(Tip=Bypass, Ring=Kill)
S/PDIF Digital Input/Output
Sample Rate: 44.1 kHz-48 kHz (downsampled to 40 kHz)
Digital output is always active (at 44.1 kHz when not
using digital input). Balanced Analog Output
XLR 3-wire balanced (2);
1/4” TRS phone jacks (2)
Balanced Analog Input
1/4” TRS phone jacks (2);
XLR 3-wire balanced (2)
Input Level
Set to In position for -10 dB/Unbalanced operation:
-14 dBu min for full scale; +8 dBu max; 50 kΩ Impedance
Set to Out position for +4 dB/Balanced operation:
-2 dBu min for full scale, +20 dBu max; 100 kΩ Impedance
For more information on the Reverb 2016, visit www.princetondigital.com
For more information on this and other Eventide products, visit our website at www.eventide.com

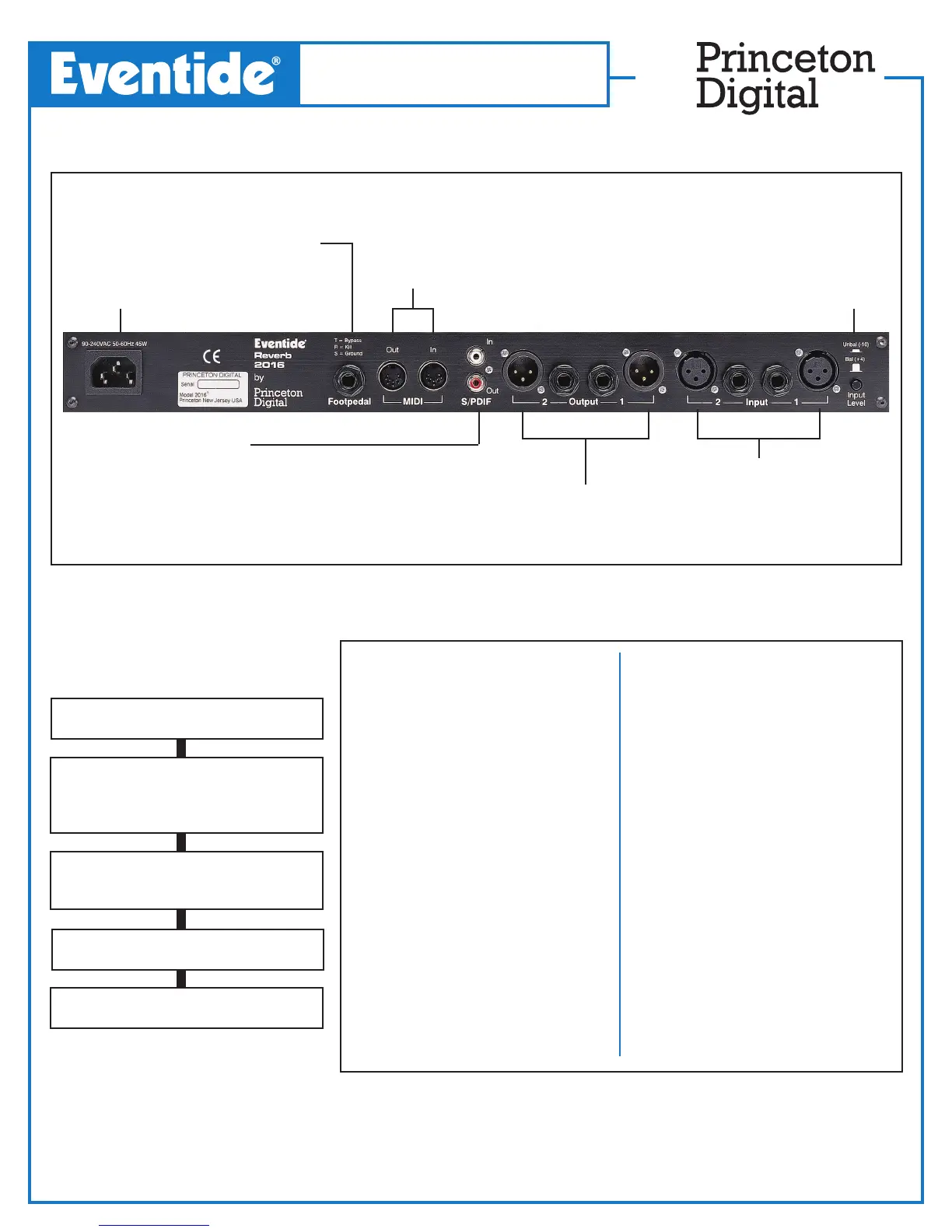

Rear Panel Connections
SpecificationsSystem Parameters
Specifications subject to change without notice.
Universal Power Input
90-240VAC, 50-60 Hz, 40W
Reverb 2016
by
MIDI Channel
Use Preset to select Off, 1-16 or All.
Press System repeatedly to cycle through the
System parameters.
Software Version
Displays the System Software Version.
Dump Current Program
Press the flashing Save button to
execute a MIDI dump of the current
program.
Dump All Programs
Press the flashing Save button to execute
a MIDI dump of all stored programs.
PLD Software Version
Press System from this display to exit.
Audio
Frequency Response:
Wet 20 Hz-16 kHz, ±1 dB
Dynamic Range:
> 98 dB; 20 Hz-20 kHz, non A-weighted
Sample Rate: 40.0 kHz
Conversion: 24 Bits A/D, 24 Bits D/A
Throughput Delay: 1.55 ms
THD: < .006, full bandwidth
Crosstalk: < 86 dB below 1 kHz@Full
Scale
Output Impedance: 125 Ω each side,
balanced
Output Level: +24 dBm max, Full Scale,
balanced/unbalanced
Controls and Indicators
Power: On/Off
Potentiometers for Analog Input and
Output Levels
Rotary Encoders with momentary
pushbutton control for Preset selection/
loading, and Parameter display/control
Pushbutton Controls for Digital In, Kill,
System Bypass, Effect Bypass, Algorithm
Select and Program Save
LEDs indicate Digital input selection,
Algorithm selection, Input signal level,
audio clipping and DSP overflow, and Mono
processing by certain algorithms
3-Digit Numerical Display indicates preset
selections or parameter values
Physical/Environmental
Dimensions: 1.75” Hx 19”W x 8”D
Temperature: Operating: 32 to 104°F
(0 to 40°C); Storage: -20 to 170°F
(-30 to 75°C)
Relative Humidity: 95% non-condensing
