Voltage
Voltage at motor must be not more than 10% above or below motor name plate rated voltage or motor may overheat, causing over load tripping and
reduced component life. If voltage is less than 90% or more than 10% of rated voltage when motor is running at full load, consult power-company.
Grounding/Bonding
Install, ground, bond and wire motor according to local or National Electrical Code requirements. Permanently ground motor. Use ground terminal “G”
provided under motor canopy or access plate; use size and type wire required by code. Connect motor ground terminal to electrical service ground.
Connect a No. 8 AWG (8.4 sq.mm) solid copper bonding wire to the bonding lug provided on the motor housing and to all metal parts of the swimming
pool, spa, or hot tub and to all electrical equipment, metal piping or conduit within 5 ft. (1.5 m) of the inside walls of swimming pool, spa, or hot tub.

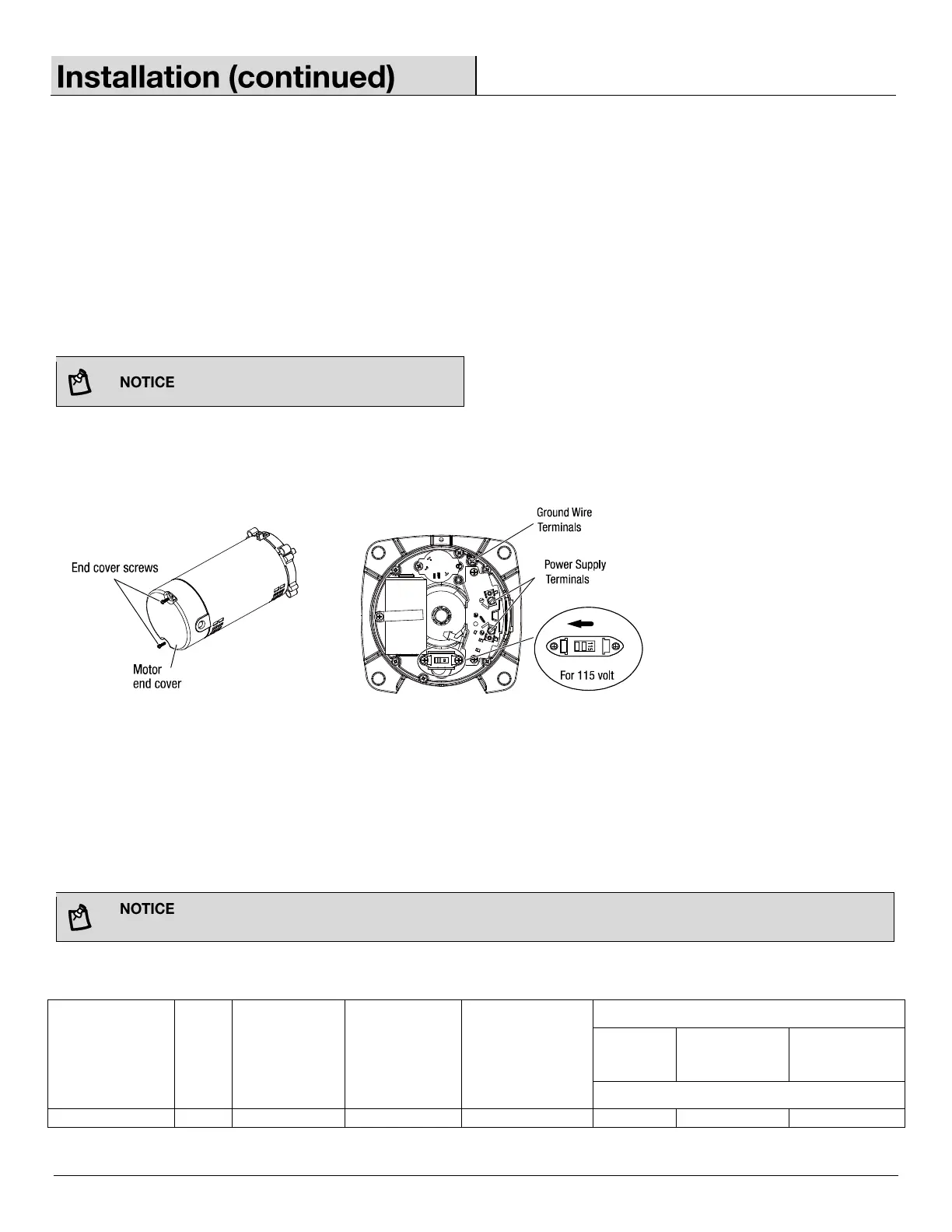

Voltage Setting and Wiring
: Be sure power is off.
 The motor is 115/230 Volt single phase and pre-wired at 230 volts.
 If the power source is 115 volts, remove the motor end cover
 Flip the switch to 115 Volt.
 Re-install the motor end cover.
Pump must be permanently connected to circuit. Table I gives correct wire and circuit breaker sizes for the pump alone. If other lights or appliances
are also on the same circuit, be sure to add their amp loads to pump amp load before figuring wire and circuit breaker sizes. ( If unsure how to do this
or if this is confusing, consult a licensed electrician.) Use the load circuit breaker as the master on-off switch.
Install a Ground Fault Circuit Interrupter (GFCI) in circuit; it will sense a short circuit to ground and disconnect power before it becomes dangerous to
pool users. For size of GFCI required and test procedures, see GFCI manufacturer’s instruction.
In case of power outage, check GFCI for tripping (which will prevent normal pump operation). Reset if necessary.
: If you do not use conduit when wiring motor, be sure to seal wire opening on end of motor to prevent dirt, bugs, etc., from
entering.
Table l- Recommended Fusing Data
Model #
Motor
HP
Branch Fuse
Rating Amps*
Max Load Amps
Voltage/Hz/Phase
Service to Motor – Distance in Ft. (m)
0-100’
(0-30)
101-200’
(30-60)
201-300’
(60-90)
AWG Wire Size (mm
2
)
SPP15002
1-1/2
20
17/8
115,230/60/1
12 (3)
8 (8.4)
6 (14)
* Time delay fuses are recommended instead of standard fuses in any motor circuit.
