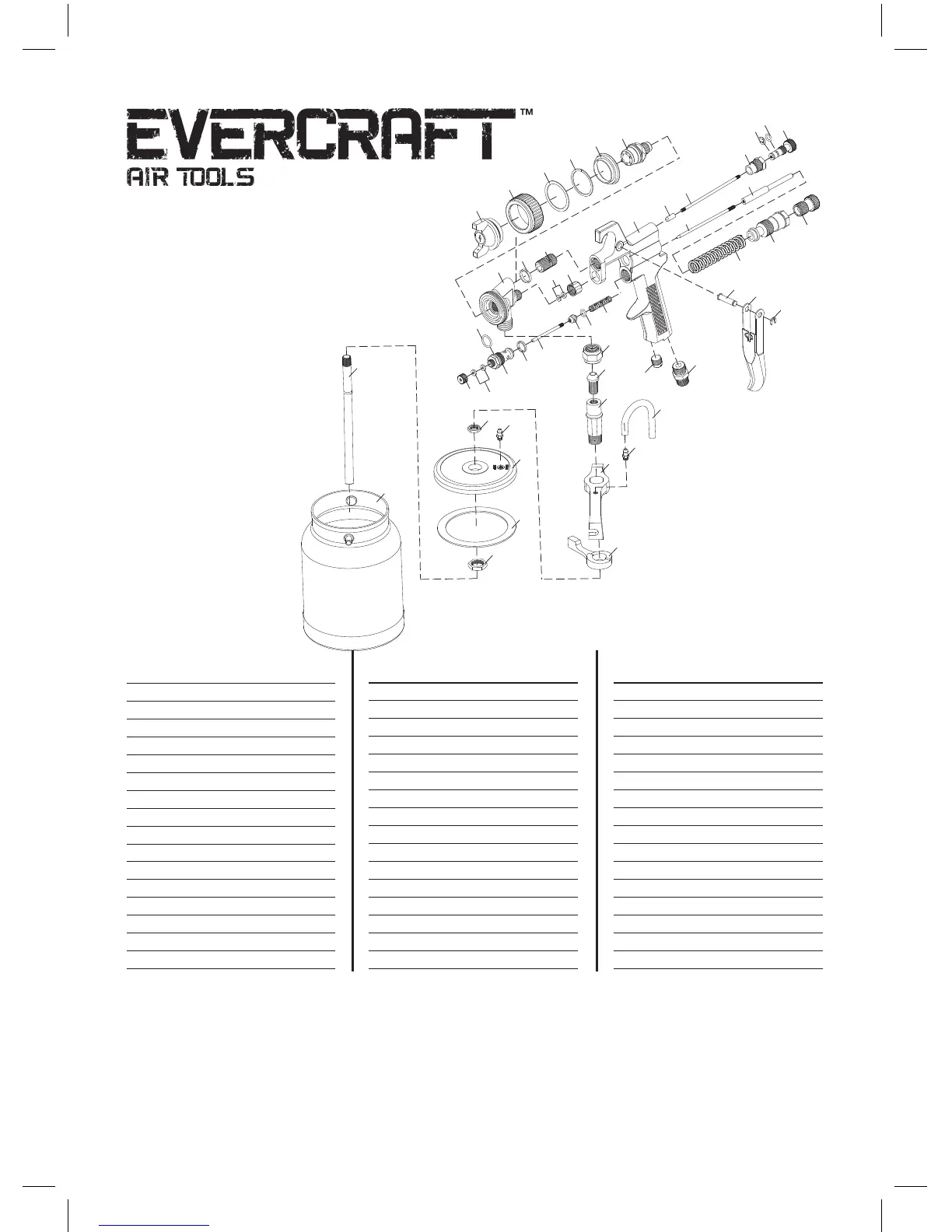

Evercraft 776-3703 - Parts List and Drawing

776-3703 7 09/13/10
776-3703 -
Parts List
and Drawing
1
2
3
6
7
8
9
10
11
12
4
5
26
27
28
29
30
31
5
33
36
37
38
39
41
40
42
40
43
44
45
46
47
48
35
34
24
25
16
13
14
15
18
17
16
19
20
23
22
21
32
ITEM
NO. DESCRIPTION QTY
1 GunBody 1
 2 ConnectorScrew 1
 3 SealingGasket 1
 4 SealingScrew 1
 5 SealingGasket 4
 6 GunHead 1
7 Fluid Nozzle 1
 8 SealingGasket 1
9 Clip 1
 10 SealingGasket 1
11 Air Cap ring 1
12 Air Nozzle 1
 13 SprayWidthAdj.Stopper 1
 14 SprayWidthAdj.Stem 1
 15 SprayWidthAdj.Seat 1
16 Opening Stopper 4 2
ITEM
NO. DESCRIPTION QTY
 17 O-Ring(4x1.8) 1
 18 SprayWidthAdj.Screw 1
19 Needle 1
20 Needle Set 1
 21 AirflowAdj.Spring 1
22 Needle Sleeve 1
 23 NeedleAdj.Screw 1
24 Trigger Pin 1
25 Trigger 1
 26 AirValveSpring 1
 27 O-Ring(4.5x1.8) 1
 28 AirValveSeat 1
 29 AirValveStem 1
 30 AirValveGasket 1
 31 AirValveBody 1
 32 O-Ring(8x1.8) 1
Only items identified by part numbers are available separately.
Replacement Parts Available:
RS63703NK Air Nozzle/Fluid Nozzle/Needle Kit (incl. items # 7-12, 19,20)
RS6370335 Air Inlet Connector
RS63703LA Lid Assembly (incl. items #36-47)
RS63703G Gasket (item #45)
RS63703C Cup (item #48)
RS63703RK Repair Kit (incl. items # 5, 14, 16, 17, 21, 24, 26-30, 32)
ITEM
NO. DESCRIPTION QTY
 33 SealingScrew 1
 34 SealingScrew 1
35 Air Inlet Connector 1
36 Connector Nut 1
 37 ConnectorScrew 1
 38 MaterialTube 1
 39 Pothook 1
 40 Screw 2
 41 AerateTube 1
 42 Handwheel 1
 43 HexHeadNut 1
44 Cup Cover 1
 45 SealingGasket 1
46 Nut 1
 47 MaterialTube 1
48 Cup 1
