PF9800SeriesUser'sManual
Copyright © EVERFINE,Copyorspreadwithoutauthorizationisprohibited.
26

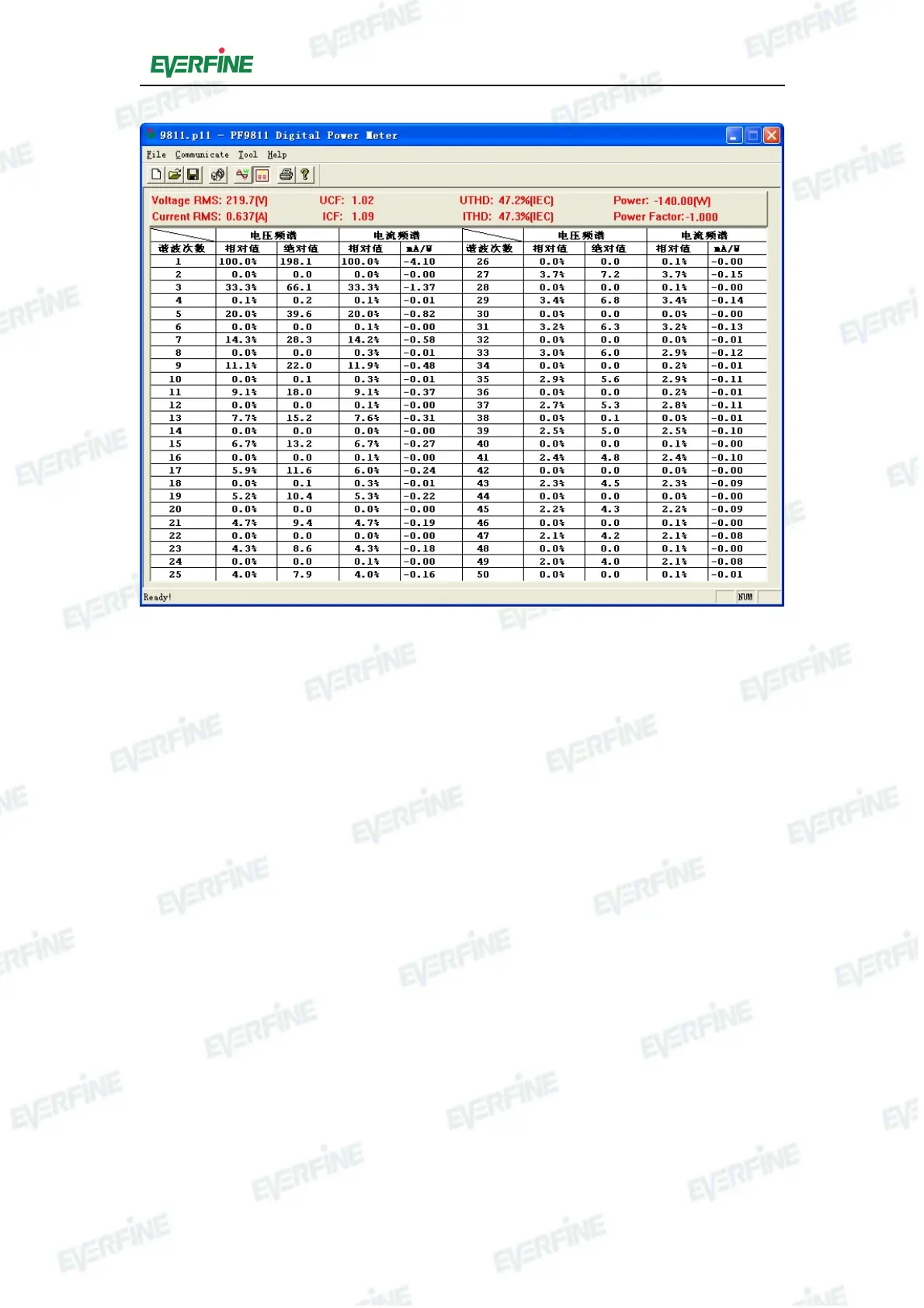

Figure6.2theharmonicwindow
6.3.1 ‘File’menu
(1)New:CreateanewdataFile;
(2)Open:LoadthesavedfileofPF9811/PF9810;
(3)Saveas:Savethecurrenttestdatatothespecifiedfile;
(4)Print:Outputcurrentdisplaytotheprint;
(5)Printpreview:Canpreviewthepaperafterprinting;
(6)Exit:Signoutthesoftware.
6.3.2 ‘Communication’menu
(1)Transferdata:Clicktostarttheinstrumentcommunication;
(2)Totalharmoniccalculation:Settotalharmoniccalculationmethod,canchoose
“IEC” or “CSA”.
(3)Displayharmoniccurrent/watt:Setwhethertodisplaytheharmoniccurrentper
watt;
