HDcctv Solutions

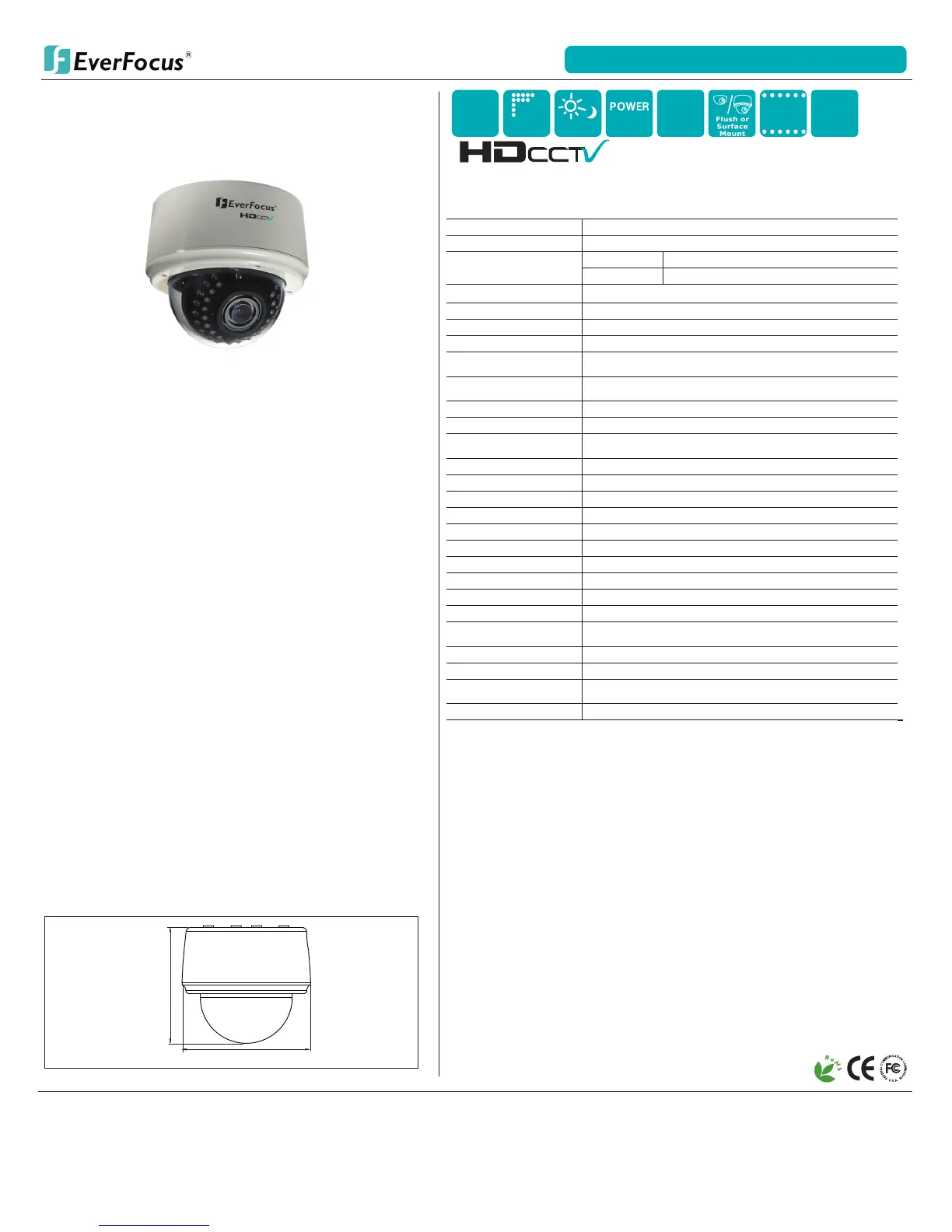

EDH5240
HDcctv 2 Megapixel Indoor IR Dome
Features
• HDcctv Megapixel real time 1920x1080 or 1280x720
HD video over coax for superlative image detail
• True day/night operation with automatic ICR module
• 3.3-12mm Megapixel A/I IR Corrected Lens
• Easy to use OSD setup menu
• The exible angle viewing of its 3-Axis design allows
wall or ceiling mounting
• IR distance up to 65 feet
• Can be installed as a surface or ush mount
• Supports video outputs of 1080i60/50; 1080p30/25;
720p60/50/30/25 (eld select)
• S/D Analog Test TV Out for setup, aim and focus
using a standard hand held test monitor
• Dual power source 12VDC/24VAC
EDH5240: 1080/720 HDcctv IR Indoor Dome
128 mm / 5.1”
140 mm / 5.5”
6
1920
x
1080
2.1
Megapixel
True D/N
12VDC/
24VAC
OSD
IR
Distance
65 Feet
Test SD
TV Out
Specications
Part Number EDH5240
Pickup Device 1/2.7” 2 Megapixel CMOS sensor
Image Area Size
1920 x 1080 Ф 6.61mm; (w x h) 5.76 x 3.24mm
1280 x 720 Ф 4.41mm; (w x h) 3.84 x 2.16mm
Sensitivity 0.5 lux/F=1.4; 0 lux IR ON
True Day/Night Yes (Auto IR cut lter removal)
Effective Pixels 1920x1080
S/N Ratio 45dB
Resolution Main
Output
Supports video outputs of 1080i60/50; 1080p30/25;
720p60/50/30/25 (eld select)
Video Format Test
Output
NTSC/PAL selectable 1V p-p (in test mode only)
Electronic Shutter Auto 1/60(1/50)~1/8000
Lens Type Megapixel vari-focal lens, Auto Iris, f=3.3~12mm, F=1.4
Backlight
Compensation
On/Off selectable
Auto Gain Control High/Middle/Low/Off selectable
Auto White Balance AWB/One Push WB/Manual WB/Indoor/Outdoor
Language Support Multi-Language
Image Flip H_MIR/V_MIR/Rotate
IR Wavelength 850nm
IR Range Up to 65 feet
Gamma Correction PC/TV selectable
OSD Menu yes (controlled from rear 5-axis joystick control)
Vandal Resistant Yes
Power Source 12VDC/24VAC auto polarity detect
Power Consumption
24VAC: 7.2W IR off, 11.3W max IR on | 12VDC:4.7W IR
off, 7.4W max IR on
Dimensions Surface: 5.5” x 5.1” Flush: 5.5” x 2.8”
Weight 1.45 lbs
Operating
Temperature
0° C~ 40°C/ 32° ~ 104°F (20%-80% Humidity)
Certications FCC, CE
