HDcctv Solutions

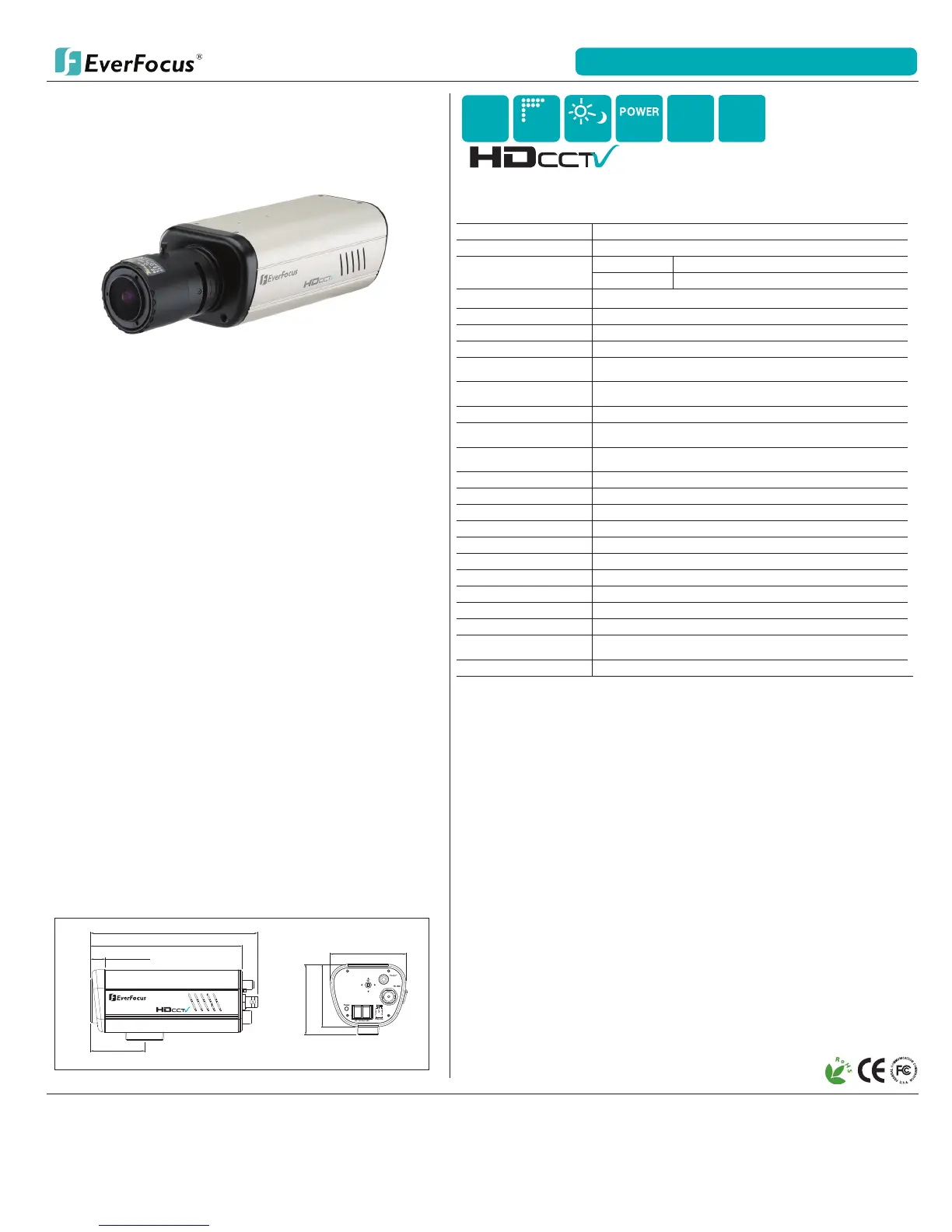

EQH5200
HDcctv 1080p Box Camera
Features
• HDcctv Megapixel 1280x720 HD video over coax for
superlative image detail
• True day/night operation with automatic ICR module
• Accepts C & CS mount lenses for complete freedom
to choose the desired eld of view
• Easy to use OSD setup menu
• Supports video outputs of 1080i60/50; 1080p30/25;
720p60/50/30/25 (eld select)
• S/D Analog Test TV Out for setup, aim and focus
using a standard hand held test monitor
• Dual power source 12VDC/24VAC
EQH5200: 720/1080 Megapixel Box Camera
1920
x
1080
2.1
Megapixel
True D/N
12VDC/
24VAC
OSD
Test SD
TV Out
Specications
Part Number EQH5200
Pickup Device 1/2.5”5 Megapixel CMOS sensor
Image Area Size
1920 x 1080 Ф 4.85mm; (w x h) 4.22 x 2.38mm
1280 x 720 Ф 6.46mm; (w x h) 5.63 x 3.17mm
Sensitivity 0.02 Lux/F=1.2 (AGC ON)
True Day/Night Yes (Auto IR cut lter removal)
Effective Pixels 1920x1080
S/N Ratio 38.1 dB
Resolution Main
Output
1920 x 1080, 2 Megapixel 1080i or 1280 x 720, 1
Megapixel 720p
Video Format Test
Output
NTSC/PAL selectable 1V p-p (in test mode only)
Electronic Shutter 1/60 (1/50)~1/8000
Lens Type
CS mount (Adapter included for C-mount) Lens sold
separately
Backlight
Compensation
On/Off selectable
Auto Gain Control High/Middle/Low/Off selectable
Auto White Balance AWB/One Push WB/Manual WB/Indoor/Outdoor
Language Support Multi-Language
Image Flip H_MIR/V_MIR
Gamma Correction Two settings: optimized for TV or PC display
OSD Menu yes (controlled from rear 5-axis joystick control)
Power Source 12VDC/24VAC
Power Consumption 12VDC: 6W max./ 24VAC: 6W max.
Dimensions 5.7” x 2.7” x 2.2”
Weight 0.9lbs
Operating
Temperature
0° ~ 45°C/ 32° ~ 113°F (20%-80% Humidity)
Certications FCC/CE
9
Note: Lens sold separately
68mm/2.7”
63.5mm/2.5”
56mm/2.2”
150.2mm/5.9”
13mm/0.5”
136mm/5.4”
48.5mm/1.9”
