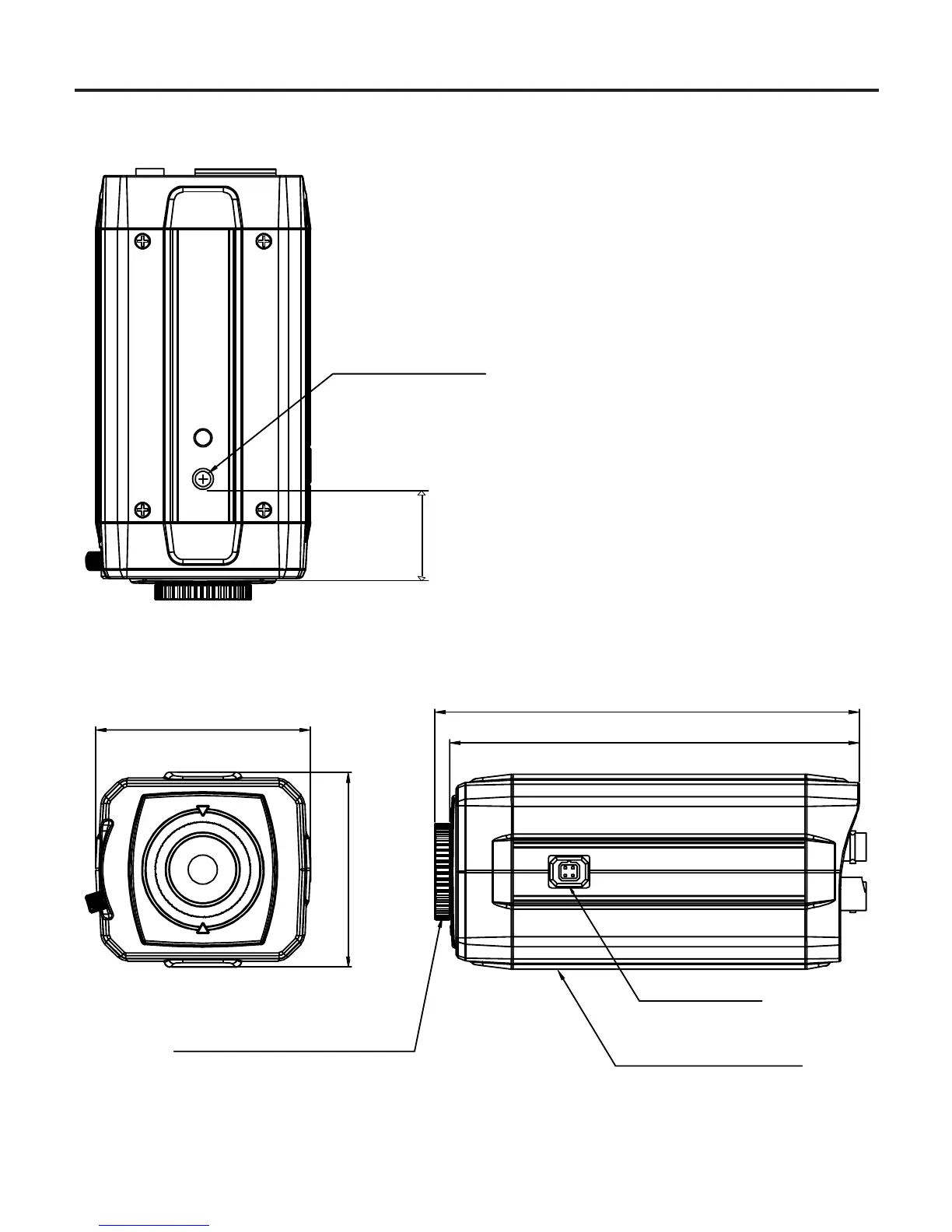

6. DIMENSIONS
Unit: mm(inch)
145(5.71) / (C-Mount)
138.55(5.45) / (CS-Mount)
AUTO IRIS JACK
MOUNTING HOLE
C-MOUNT ADAPTOR RING
(Optional use for C-Mount Lenses only)
72.58(2.86)
66(2.60)
MOUNTING HOLE
(1/4"-20 UNC, Depth 5)
30(1.18)
