Exterior Equipment
Moving lever aft of each armrest forward allows
the arm rests to be adjusted up or down. Re-
leasing the lever locks the armrest in the desired
position.
Notice:
The helm seat is stationary and does not
swivel or have armrests.
The aft facing passenger seat cushion is located
behind forward passenger seat on the rear of the
seat base. It is secured to the shbox/storage
compartment hatch with special bolts and wing
nuts.
Helm
The helm and engine controls are located on the
helm station. The accessory switches are on
the side of the helm and the engine gauges and
molded-in electronics storage is located in a at
panel above. There are also drink holders and
storage to the starboard side of the helm. Fuse
panels behind the helm provide protection for the
12 volt accessory circuits.
The back of the helm station is accessed through
the storage compartment just forward of the helm.
This compartment provides access to service the
helm equipment, accessory switch panels and
other components installed in the helm. Optional
electronics are mounted above the helm and ac-
cessed through the storage compartment.
An acrylic door secured with a lockable ush “push
to close” latch provides access to the compart-
ment. The door could be damaged or hurt a pas-
senger by the motion of the boat if it is allowed
to swing free. It should be in the closed position
and latched whenever the boat is underway. A
12-volt light activated by a switch on the light
xture illuminates the compartment.
Helm Storage Compartment
There are two matched acrylic doors secured with
ush, “push to close” latches that provide access
to the large storage compartment forward of the
helm. The outside door is used to close off the
walk-thru area below the opening windshield
panel when desired and is designed to “nest” to
the storage compartment door when it is open.
To secure the door in either position, push the
door until the latch catches. Periodically clean
and lubricate the latches to protect them from
corrosion and help keep them operating properly.
A 12-volt light activated by a switch on the light
xture illuminates the compartment.

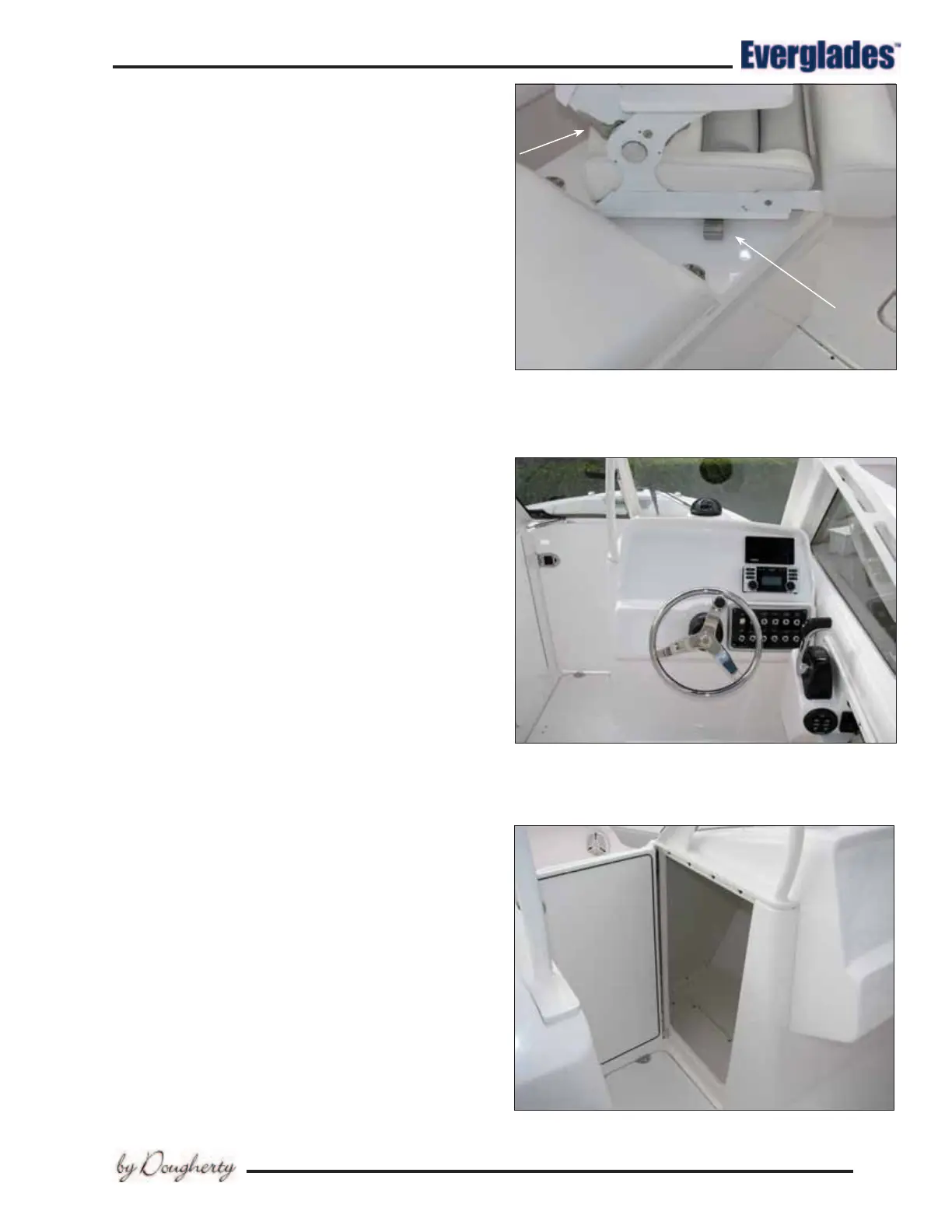

Passenger Seat Swivel and Armrest Levers
Helm Storage Compartment
Helm
