Electrical System
CAUTION
The circuit breakers are labeled for the accessory
circuit they protect. Circuit breakers labeled ACC
are reserved for additional accessories not usually
installed by the factory.
If a breaker trips, the reset button pops out and is
visible through the silicone protective cover. Press
the button to reset the tripped breaker. If the
breaker trips again, nd and correct the problem
before resetting the breaker.
PROPER FUSE OR bREAkER PROTECTION MUST bE PROVIDED
FOR ALL 12 VOLT EQUIPMENT ADDED. DO NOT OVERLOAD
THE ACCESSORY CIRCUIT bREAkERS OR OTHER CIRCUITRY
THROUGH ADDITIONAL 12 VOLT EQUIPMENT.
Power Ports
A 12 volt power port is located below the gunnel on
each side of the cockpit. The power ports provide
a 12 volt DC power connection for downriggers or
electric reels. The power ports are protected by
“push to reset” circuit breakers in the accessory
circuit breaker panel in the head compartment.
Main Circuit Breakers
DC Power is distributed to the head compartment
DC breaker panel, electronics and other main cir-
cuits through heavy duty circuit breakers located
in the systems compartment near the battery
switches. These main circuits are deactivated
when the House battery switch is OFF.
The primary circuits for the 12 volt accessories
are protected and powered by heavy duty cir-
cuit breakers. The breakers are supplied power
whenever the House battery switch is on. These
are heavy duty circuit breakers that are mounted
either above the battery switches on the 275 and
295 models or in the battery switch panel on the
325 CC.
275 and 295 Model Heavy Duty Breakers
These breakers are equipped with a red “push to
test” button and a black or yellow reset lever. If
this circuit breaker is tripped by an overload, a
yellow or black lever near the center of the breaker
will be visible and be pointing downward. Reset
the breaker by pushing the lever until it resets and
locks in the “On” position. The circuit breaker
can be tested for proper operation by pressing
the red test button.

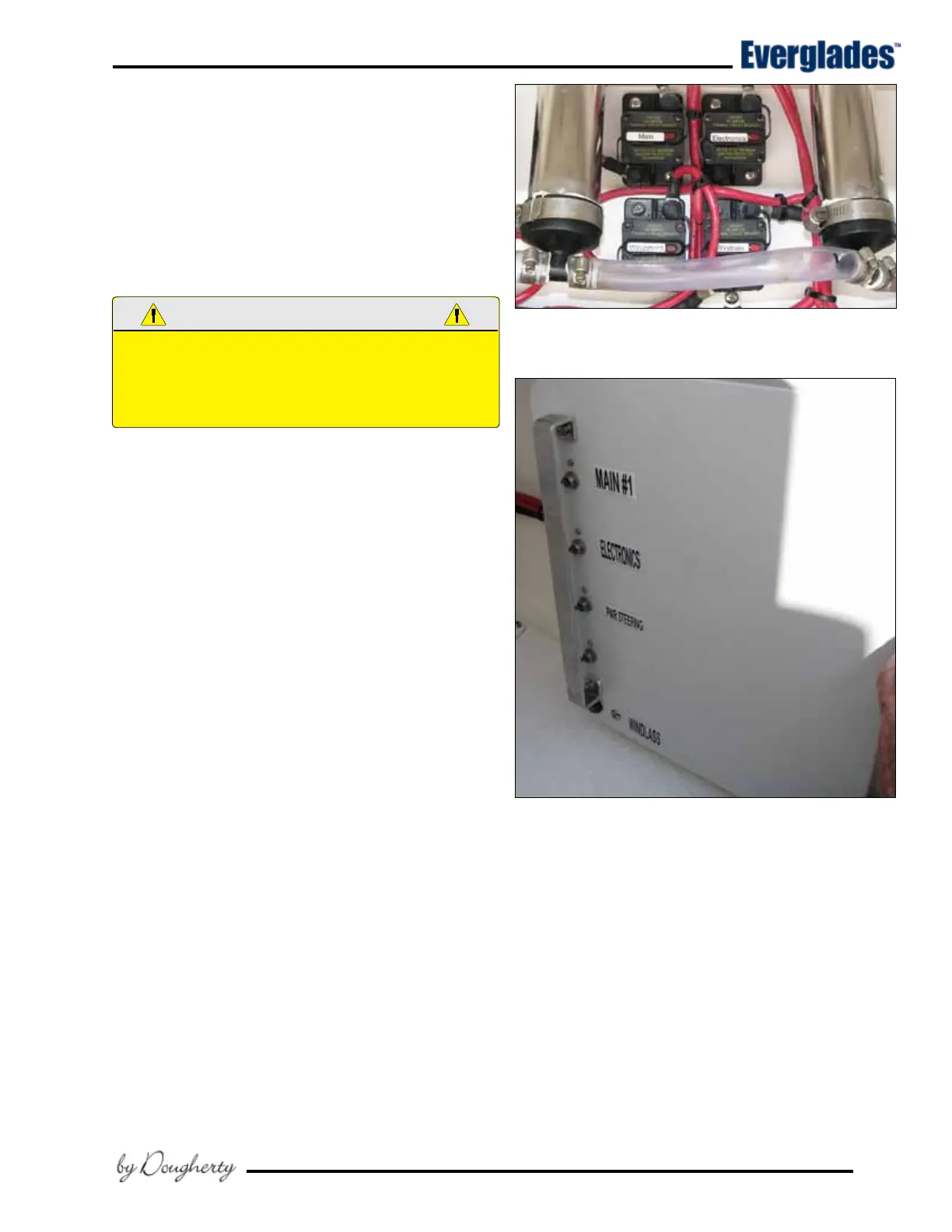

275/295 Center Console
Main Circuit Breakers
325 Center Console
Main Circuit Breakers
325 CC Heavy Duty Breakers
The main circuit breakers for the 325 CC are
mounted to the battery switch panel in the system
compartment. Most of the circuit breakers are
activated or reset by toggle switches in the panel.
The windlass breaker is a heavy duty breaker
with a red, “push to reset” button that requires a
rm push to reset it trips. This breaker is always
activated when the House circuit is on, unless it
has been tripped by an overload.
