B. INSTALLATION (Cabinet Mounting)

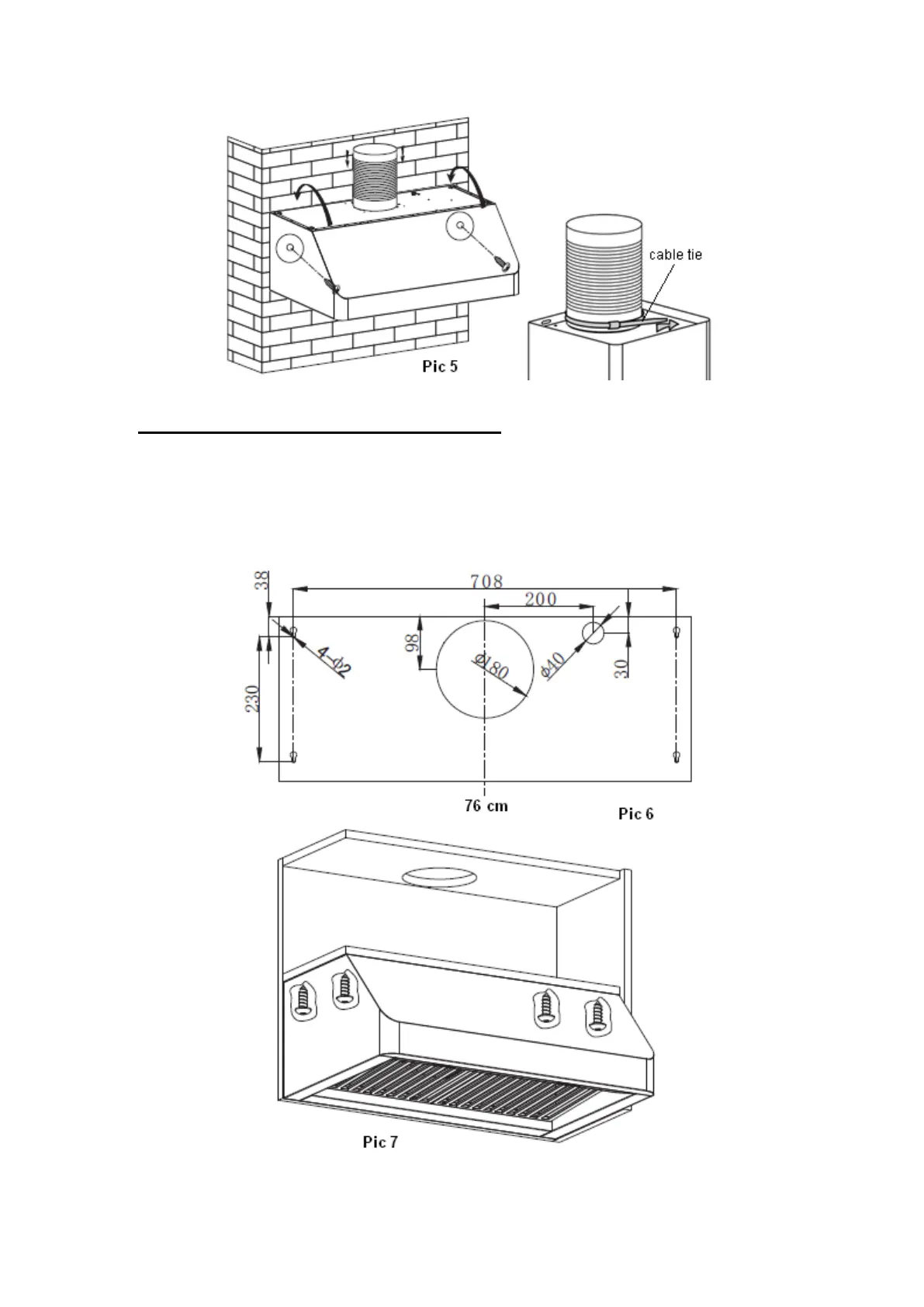

1. Drill 4 holes on the hanging cupboard. See pic 6.
2. Insert the v-flaps in to the outlet, and install the outlet on the cooker hood with 4pcs
screws(see pic 4). Then install the cooker hood on the bottom of the cupboard,
tighten the cooker hood with enclosed 4 pcs ST4*18screws.See pic 7.
3. Lay the expansion pipe on the outlet. Lift up the expansion pipe till it out of the wall
through the hole on the wall.
