Everlast 4812 - Exploded Drawing and Parts List

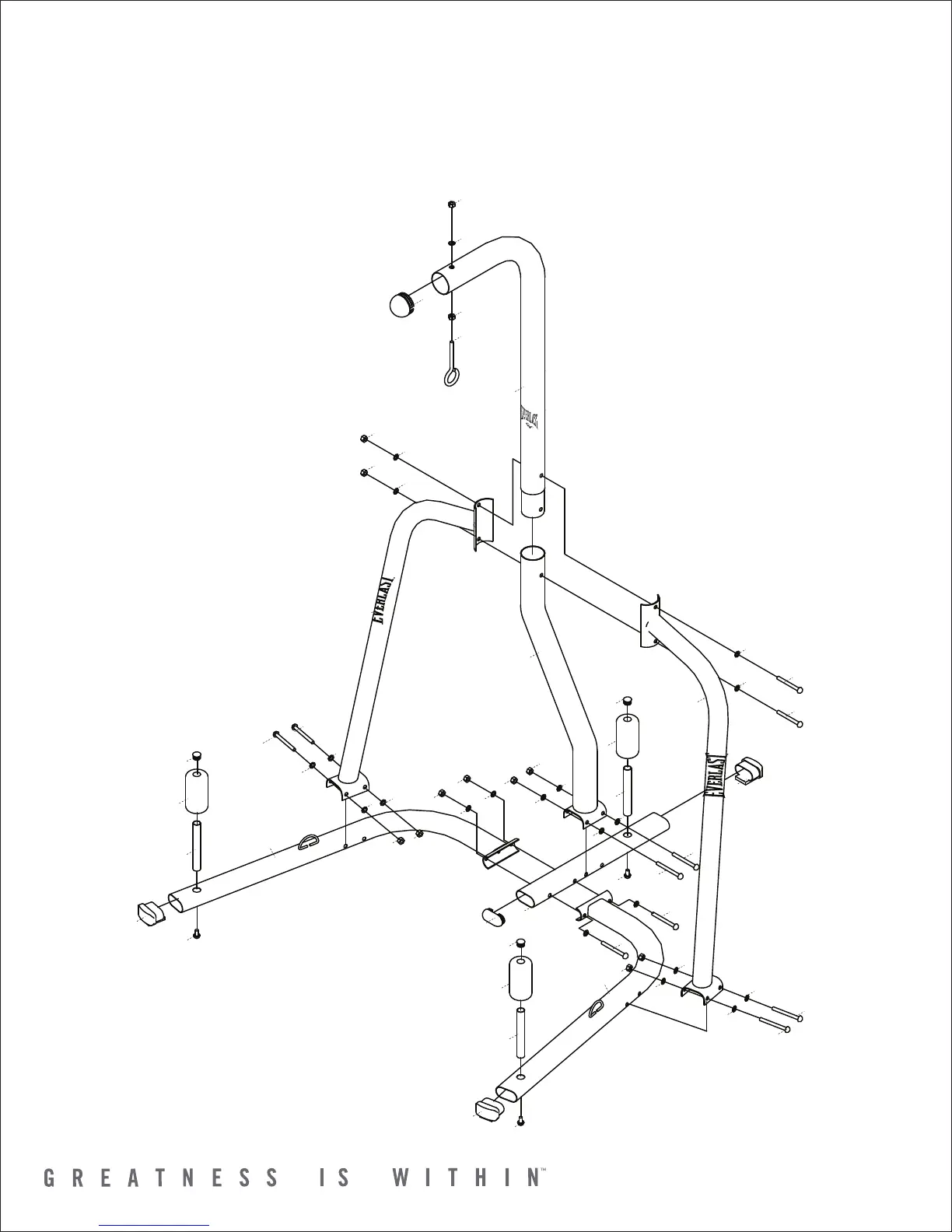

4812 HEAVY BAG STAND EXPLODED DRAWING/PARTS LIST
13
15
15
15
11
10
08
09
12
12
12
07
06
19
08
09
19
08
09
19
11
10
10
10
10
13
15
13
15
15
13
13
13
13
18
17
13
15
15
13
13
15
15
15
15
15
15
15
01
15
15
15
03
02
15
13
14
04
20
16
10
10
15
15
05
17
17
10
No. Description Qty. Pre.- Assembled
4812-01 Center Base Tube 1 No
4812-02 Right Base Tube 1 No
4812-03 Left Base Tube 1 No
4812-04 Heavy Bag Tube 1 No
4812-05 Right Support Tube 1 No
4812-06 Left Support Tube 1 No
4812-07 Upright Tube 1 No
4812-08 Foam Pad 3 Yes
4812-09 Weight Peg 3 No
4812-10 Allen Bolt M10*100mm 8 No
4812-11 Allen Bolt M10*95mm 2 No
4812-12 Allen Bolt M10*20mm 3 No
4812-13 Nylon Nut M10 11 No
4812-14 Normal Nut M10 1 No
4812-15 Washer M10 21 No
4812-16 Eye Bolt M10*150mm 1 No
4812-17 Stabilizer End Cap 3 Yes
4812-18 Stabilizer End Insert 1 Yes
4812-19 Round End Insert 3 Yes
4812-20 Round Plastic Tube Cap 1 Yes
FRONT VIEW
