Everlast 4812 - Assembly Steps; Base Construction; Heavy Bag Tube Construction

Sub Step 1. Place center base tube (01) on floor. Place left and right base tubes (02, 03) on floor in position, loops facing upward.
Sub Step 2. Insert 1 Weight Peg (19, 08, 09) into each of the three Base tubes (01, 02, 03) and secure with 3 M10*20mm Allen Bolts (12).
Sub Step 3. Align left and right base tubes with front hole set on center base tube as shown in Diagram 1.
Sub Step 4. Insert 2 M10*100mm Allen Bolts (10), secure with 4 M10 Washers (15) and 2 M10 Nylon Nuts (13) as shown in Diagram 1,
tighten loosely by hand.
Items needed step 2:
No. Description Qty.
4812-04
Heavy Bag Tube 1
4812-05 Right Support Tube 1
4812-06
Left Support Tube 1
4812-07
Upright Tube 1
4812-11
Allen Bolt M10*95mm 2
4812-13
Nylon Nut M10 8
4812-14
Normal Nut M10 1
4812-15
Washer M10 17
4812-16
Eye Bolt M10*150mm 1
4812-20
Tube Cap Insert 1
4812-10 Allen Bolt M10*100mm 6
STEP 1: BASE CONSTRUCTION
Sub Step 1. Attach M10 Eye Bolt (16) with 1 Normal Nut (14), 1 M10 Washer (15), and 1 M10 Nylon Nut (13)
Sub Step 2. Align Upright Tube (07) to rear holes on Center Base Tube (01) attach by inserting 2 M10*100mm Allen Bolts (10), secure with
4 M10 Washers (15) and 2 M10 Nylon Nuts (13) as shown in Diagram 3, tighten loosely by hand.
Sub Step 3. Insert completed Heavy Bag Tube (04) into Upright Tube (07) as shown in Diagram 4.
Sub Step 4. Attach Left Support Tube (06) to Left Base Tube (03) by inserting 2 M10*100mm Allen Bolts (10),
secure with 4 M10 Washers (15) and 2 M10 Nylon Nuts (13) as shown in Diagram 5, tighten loosely by hand.
Sub Step 5. Attach Right Support Tube (05) to both Main Tube (04, 07) and Right Base Tube (02) by inserting 2 M10*100mm Allen Bolts (10),
and 2 M10*95mm Allen Bolts (11) secure with 8 M10 Washers (15) and 4 M10 Nylon Nuts (13) as shown in Diagram 5,
tighten loosely by hand.
STEP 2: HEAVY BAG TUBE CONSTRUCTION
Items needed for step 1:
No. Description Qty.
4812-01 Center Base Tube 1
4812-02
Right Base Tube 1
4812-03 Left Base Tube 1
4812-08
Foam Pad 3
4812-09
Weight Peg 3
4812-10 Allen Bolt M10*100mm 2
4812-12 Allen Bolt M10*20mm 3
4812-13 Nylon Nut M10 2
4812-15
Washer M10 4
4812-17
Stabilizer End Cap 3
4812-18 Stabilizer End Insert 1
4812-19
Round End Insert 3

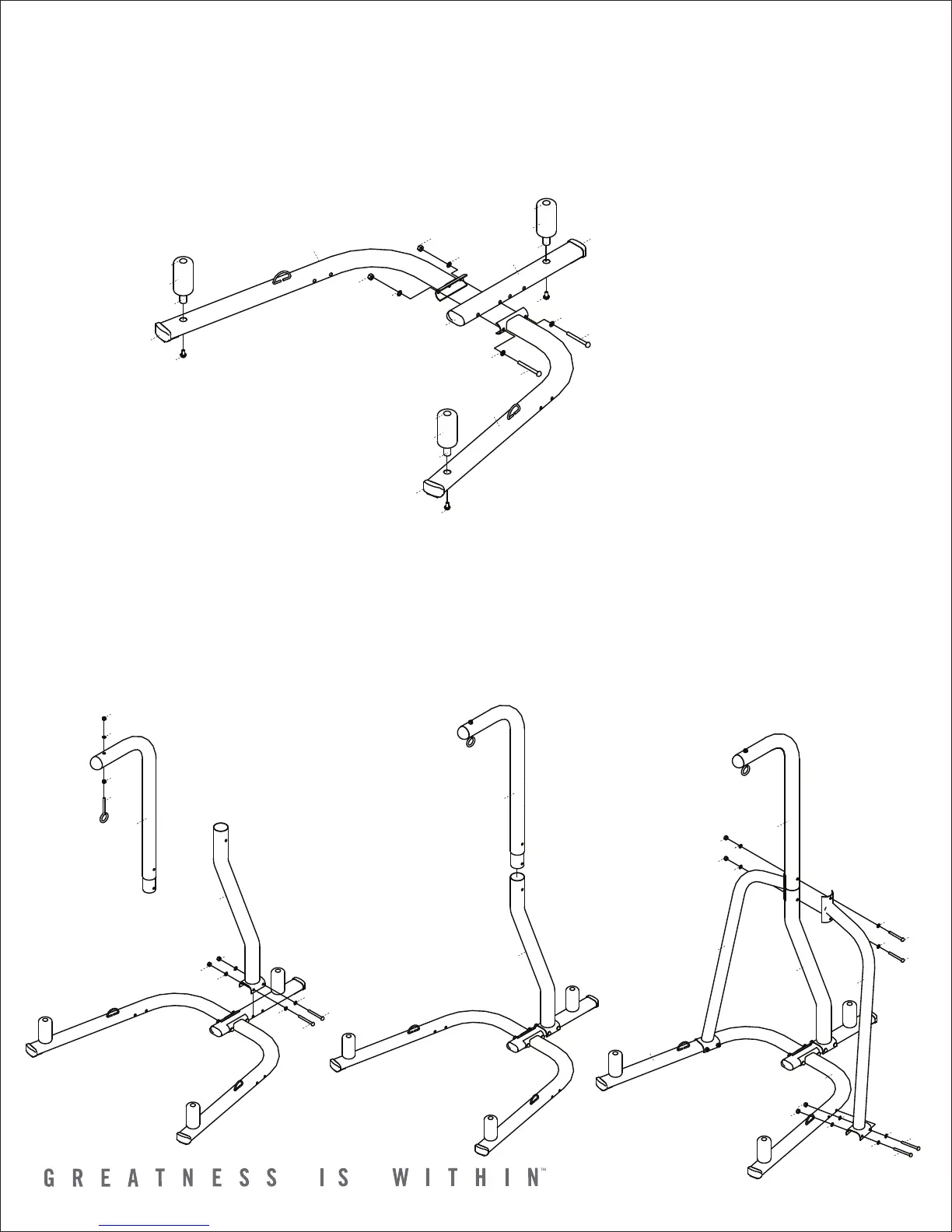

Diagram 1
15
13
14
16
04
Diagram 2
Assembly For EVERLAST Heavy Bag Stand
Model #4812
07
13
13
15
15
15
15
10
10
Diagram 3
04
07
Diagram 4
12
15
15
13
13
15
15
10
10
01
18
17
03
02
04
07
06
05
15
11
15
11
13
15
13
15
02
03
15
15
10
13
13
15
15
10
Diagram 5
08
09
19
12
17
12
17
08
09
19
08
09
19
FRONT VIEW
