Everlasting PROF ABF 20 - Diagram

70

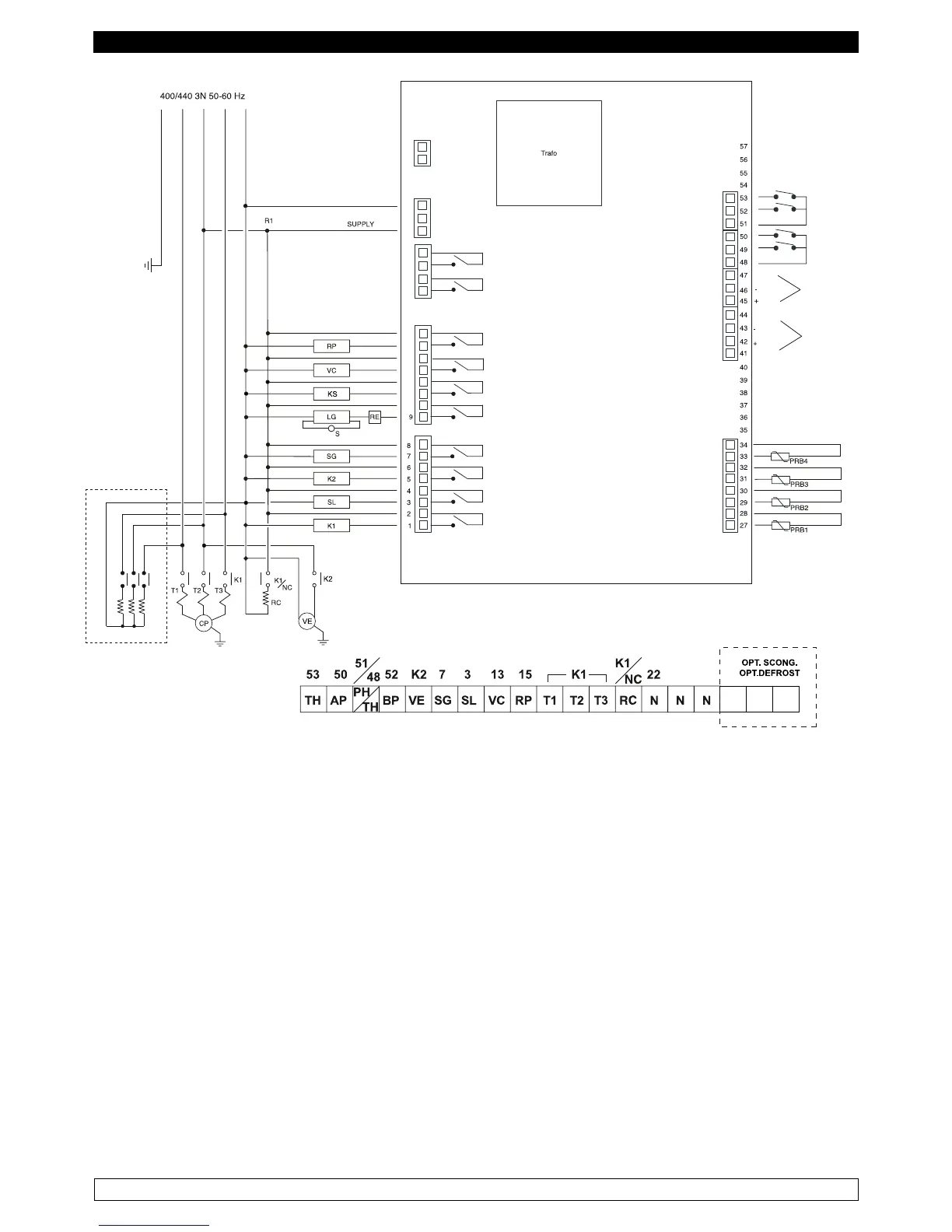

Legenda componenti
CP - Compressore
K1 - Relè compressore
RP - Resistenza anticondensa
VC - Ventilatore condensatore
SL - Valvola solenoide liquido
VE - Ventilatore evaporatore
SG - Valvola solenoide sbrinamento
K2 - Relè ventilatore evaporatore
RE - Reattore lampada germicida
LG - Lampada germicida
PRB1 - Sonda cella
PRB2 - Sonda evaporatore
PRB3 - Sonda spillone
PRB4 - Sonda condensatore
RC - Resistenza carter
RS 1/2/3 - Resistenza scongelamento (opt.)
KS - Relè scongelamento (opt.)
SW1 - Micro porta
SW2 - Pressostato HP
SW3 - Pressostato BP
SW4 - Termica compressore
ABF 10P - 15P - 20P
SW1
SW3
SW2
SW4
POWER
GND
GND
+12V
10
11
12
13
14
15
16
17
18
19
20
21
22
25
23
26
24
KS
RS1 RS2 RS3
MARRONE - BROWN NERO - BLACK GRIGIO - GRAY BLU - BLUE
GIALLO / VERDE - YELLOW / GREEN
RS
OPT.
CONNESSIONE
TASTIERA
ORIZZONTALE
HORIZONTAL
KEYBORD
CONNECTION
RS 485 STAMPANTE
PRINTER
(OPTIONAL)
RS 485 INTERFACCIA
UTENTE
USER INTERFACE
Components key
CP - Compressor
K1 - Compressor relay
RP - Anti-condensate heater
VC - Condenser fan
SL - Liquid solenoid valve
VE - Evaporator fan
SG - Defrost solenoid valve
K2 - Evaporator fan relay
RE - Germicidal lamp reactor
LG - Germicidal Lamp
PRB1 - Cell probe
PRB2 - Evaporator probe
PRB3 - Needle probe
PRB4 - Condenser probe
RC - Housing heater
RS 1/2/3 - Defrost heater (opt.)
KS - Defrost relay (opt.)
SW1 - Micro door
SW2 - Pressostat HP
SW3 - Pressostat BP
SW4 - Thermal compressor
