Everpure H-104 - Verify Under-Sink Mounting Location; Mount Filter Head Under Sink; Attach Inlet Water Supply

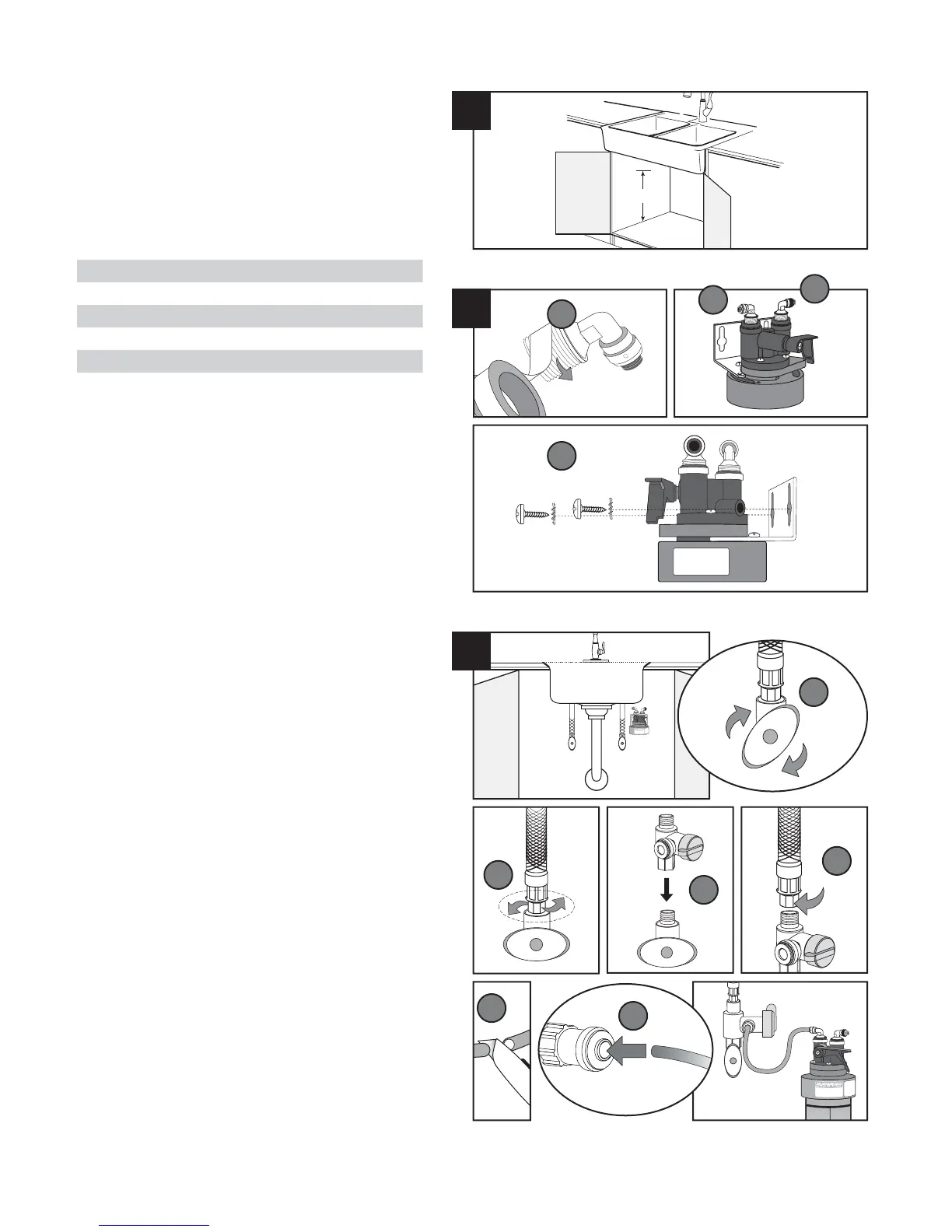

Verify Under-Sink Mounting Location
Measure 22” from the base of the cabinet, and mark the
mounting location for the top of the fi lter head. Make sure
there is adequate space above the head to open and close
the built in shut-off valve and to avoid crimping the water
line tubing. Also, make sure your chosen location offers easy
access for future cartridge changes.
DIMENSION Width
Mounting
Height
Depth
H-54 5" 15" 5"
H-104 5" 20" 5"
H-300 5" 22" 5"
H-300 +M 5" w/monitor 22" 5"
H-300-HSD 5" 22" 5"
NOTE: The head and cartridge must be mounted in the
vertical position, with the cartridge hanging down.
Mount Filter Head Under Sink
Identify Filter Head and the two Elbow Fittings, and
note that the Outlet Fitting has a black band. This fi tting
includes a small restrictor insert to insure maximum fl ow
at 1/2 gallon per minute.
Apply Tefl on Tape to the threads of each Elbow Fitting.
Wrap tape in direction of the threads to assure a tight fi t
and avoid small leaks.
Screw Inlet Elbow Fitting into the left side of the fi lter
head, and hand tighten only.
Screw Outlet Elbow Fitting (black band) into the right side
of the fi lter head in the same manner.
Securely mount the fi lter head on the cabinet wall using
the enclosed mounting screws and washers.
ATTACH INLET WATER SUPPLY
Locate and close the cold water Angle Stop Valve under
your kitchen sink. Open cold water faucet to release
water pressure.
Unscrew and disconnect the braided tubing on top of the
Angle Stop Valve .
Attach the bottom of Angle Stop Adaptor to the existing
cold water Angle Stop Valve.
Attach the braided tubing to the top of the Angle Stop
Adaptor.
Close Side Valve on Angle Stop Adaptor and open cold
water Angle Stop Valve to return water service to kitchen
sink. Check for leaks.
NOTE: Tefl on
®
Tape should not be required for these next
steps.
Measure length of tubing needed to connect Angle
Stop Adaptor to Inlet Elbow Fitting on Filter Head. Allow
adequate tubing to avoid sharp turns.
Cut tubing at a 90° angle using a sharp knife.
Insert ends of tubing into quick-connect fi ttings. Push
tube into fi tting and gently pull to confi rm a tight fi t.
