EVERSPRING AN158 - Troubleshooting and Specifications; Troubleshooting Common Issues; Socket Type Variations

5
Example:
Scale = 0x00 (KWh)
Precision = 1
Size = 4 Bytes (KW/h)
Meter Value 1 = 0x00(W)
Meter Value 2 = 0x01(W)
Meter Value 3 = 0x11(W)
Meter Value 4 = 0x70(W)
Accumulated power consumption (KW/h) = (Meter Value 2*65536) + (Meter
Value 3*256) + (Meter Value 4) = 70.1 (KW/h)
4-3 Clearing accumulated power consumption
Meter Reset Command: [Command Class Meter, Meter Reset]
5. Command Classes
The Module supports Command Classes including…
* COMMAND_CLASS_SWITCH_BINARY
* COMMAND_CLASS_BASIC
* COMMAND_CLASS_MANUFACTURER_SPECIFIC
* COMMAND_CLASS_VERSION
* COMMAND_CLASS_SWITCH_ALL
* COMMAND_CLASS_ASSOCIATION_V2
* COMMAND_CLASS_METER_V2
* COMMAND_CLASS_ALARM
* COMMAND_CLASS_CONFIGURATION

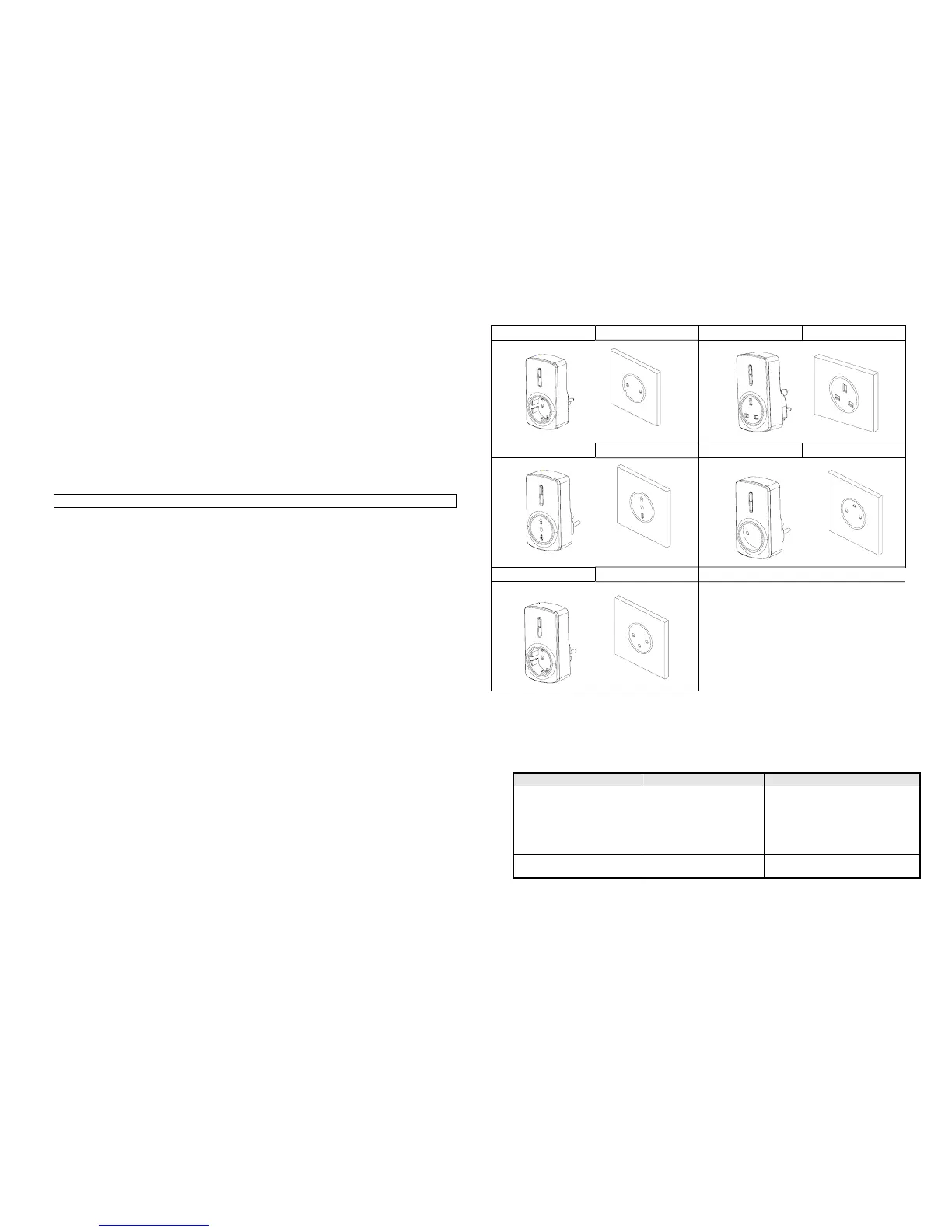

Socket Type
Since the socket type for each country in Europe varies, refer to the outline for each
socket suited for each country as follows:
AN158-2
Germany AN158-3 U.K.
AN158-4 Italy AN158-5 Denmark
AN158-6 France
Note: Please make sure that the intensity of the plug of the electrical device must be
16A and have same head as the enclosed plug before inserting to the socket.
Troubleshooting
Symptom Cause of Failure Recommendation
The Module not working
and LED off
1. The Module is not
plugged into the
electrical outlet
properly
2. The Module break
down
1. Check power connections
2. Don’t open up the Module and
send it for repair.
The Module LED
illuminating, but cannot
Check if the load plugged
into the Module has its
Set the ON/OFF switch of the
load attached to ON
