Everwarm EW18NM - Page 15

15
ELECTRICAL WIRING (MILLIVOLT)
CAUTION: Label all wires prior to disconnection when servicing controls. wiring errors can cause improper
and dangerous operation. Verify proper operation after servicing.
The millivolt valve is a self-powered combination gas control that does not require 110 VAC to OPERATE.

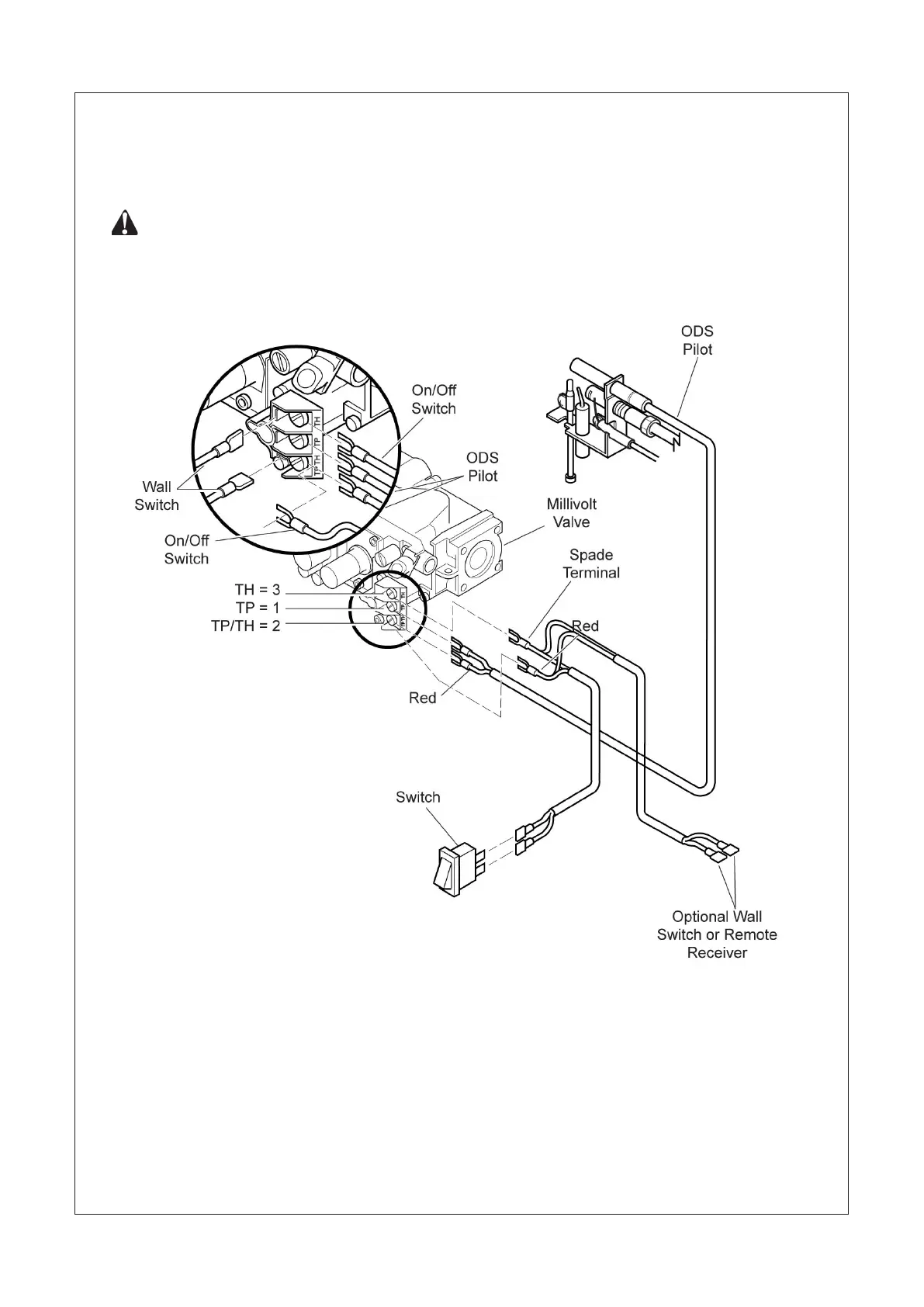

Figure 16 Wiring Diagram
