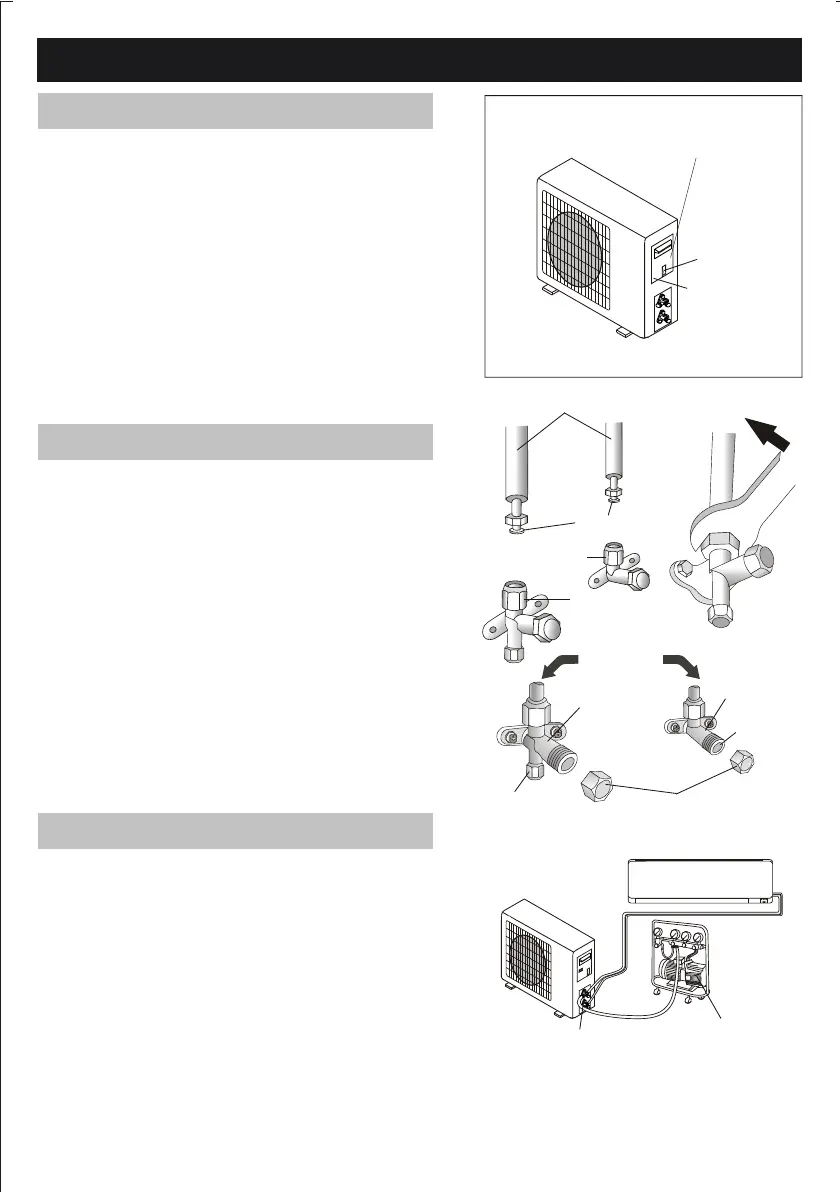

INSTALLA TION MANUAL---Installation of the outdoor unit
outdoor unit
screw
wiring diagram on the
back of the cover
Screw the are nuts to the outdoor unit coupling with
the same tightening procedures described for the indoor
unit.
connection pipes
are nuts
liquid tap
gas tap
indoor unit
protection caps
liquid valve
gas valve
service port nut
To avoid leakage, pay attention to the following points:
1. Tighten the are nuts using two wrenches. Pay atten-
tion not to damage the pipes.
2. If the tightening torque is not sucient , there will
probably be some leakage. With excessive tightening
torque there will also be some leakage, as the ange
could be damaged.
3. The surest system consists in tightening the connecti-
on by using a x wrench and a torque wrench:in this
case use the table on page 23.
vacuum pump
service port
Air and humidity left inside the refrigerant circuit can
cause compressor malfunction. After having connected
the indoor and outdoor units, bleed the air and humidity
from the refrigerant circuit by using a vacuum pump.
21
ELECTRICAL CONNECTIONS
CONNECTING THE PIPES
BLEEDING
tap
1. Remove the handle on the right side plate of outdoor unit.
2. Connect the power connection cord to the terminal board.
Wiring should t that of indoor unit.
3. Fix the power connection cord with wire clamp.
4. Conrm if the wire has been xed properly.
5. An ecient earth connection must be ensured.
6. Recover the handle.
remove
the
right
side plate
