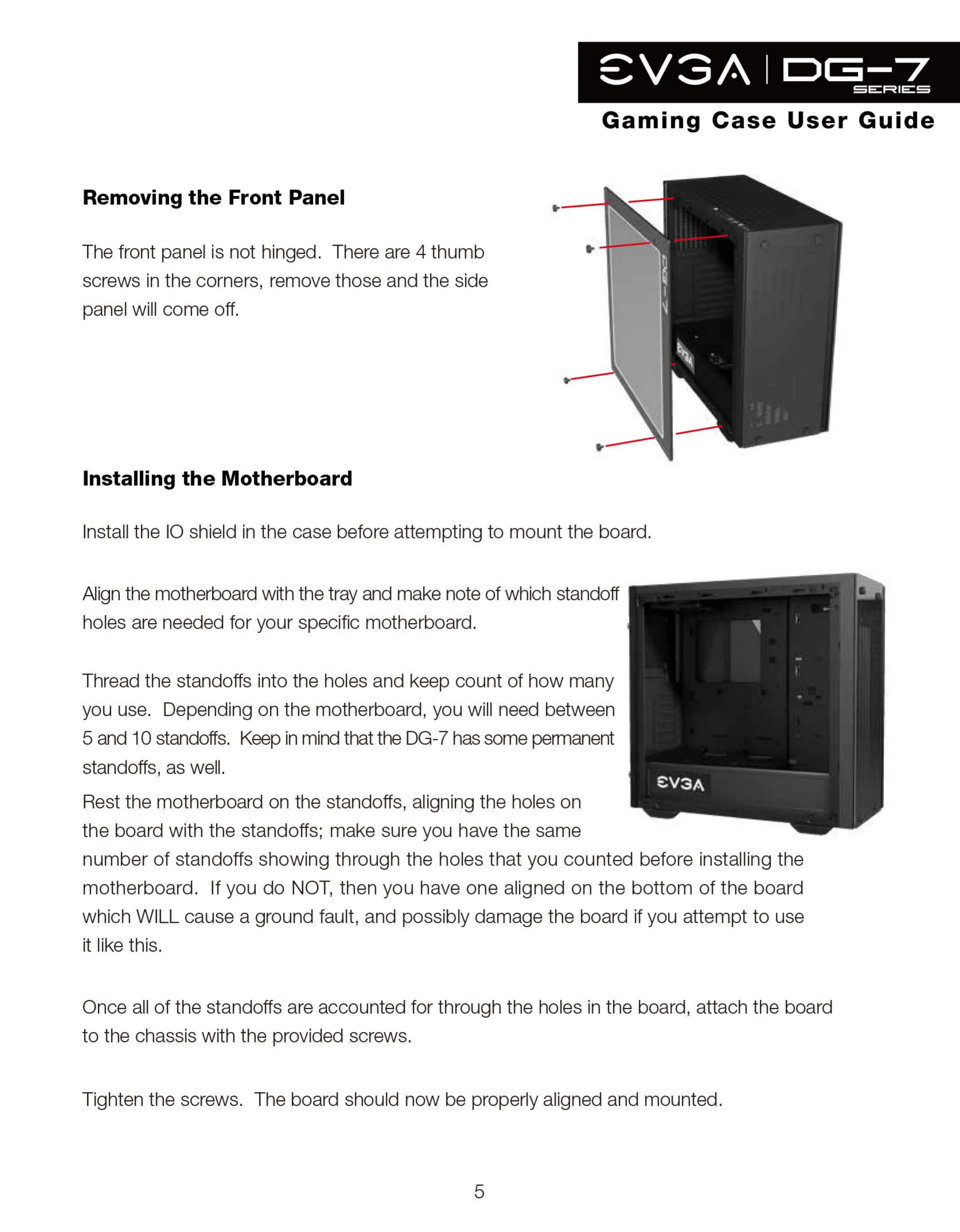

Gaming Case User Guide
Removing the Front Panel
The front panel is not hinged. There are 4 thumb
screws in the corners, remove those and the side
panel will come off.
Installing the Motherboard
Install the 10 shield in the case before attempting to mount the board.
Align the motherboard with the tray and make note of which standoff
holes are needed for your specific motherboard.
Thread the standoffs into the holes and keep count of how many
you use. Depending on the motherboard, you will need between
5 and 10 standoffs. Keep in mind that the DG-7 has some permanent
standoffs, as well.
Rest the motherboard on the standoffs, aligning the holes on
the board with the standoffs; make sure you have the same
number of standoffs showing through the holes that you counted before installing the
motherboard. If you do NOT, then you have one aligned on the bottom of the board
which WILL cause a ground fault, and possibly damage the board if you attempt to use
it like this.
Once all of the standoffs are accounted for through the holes in the board, attach the board
to the chassis with the provided screws.
Tighten the screws. The board should now be properly aligned and mounted.
5
