ASSEMBLY

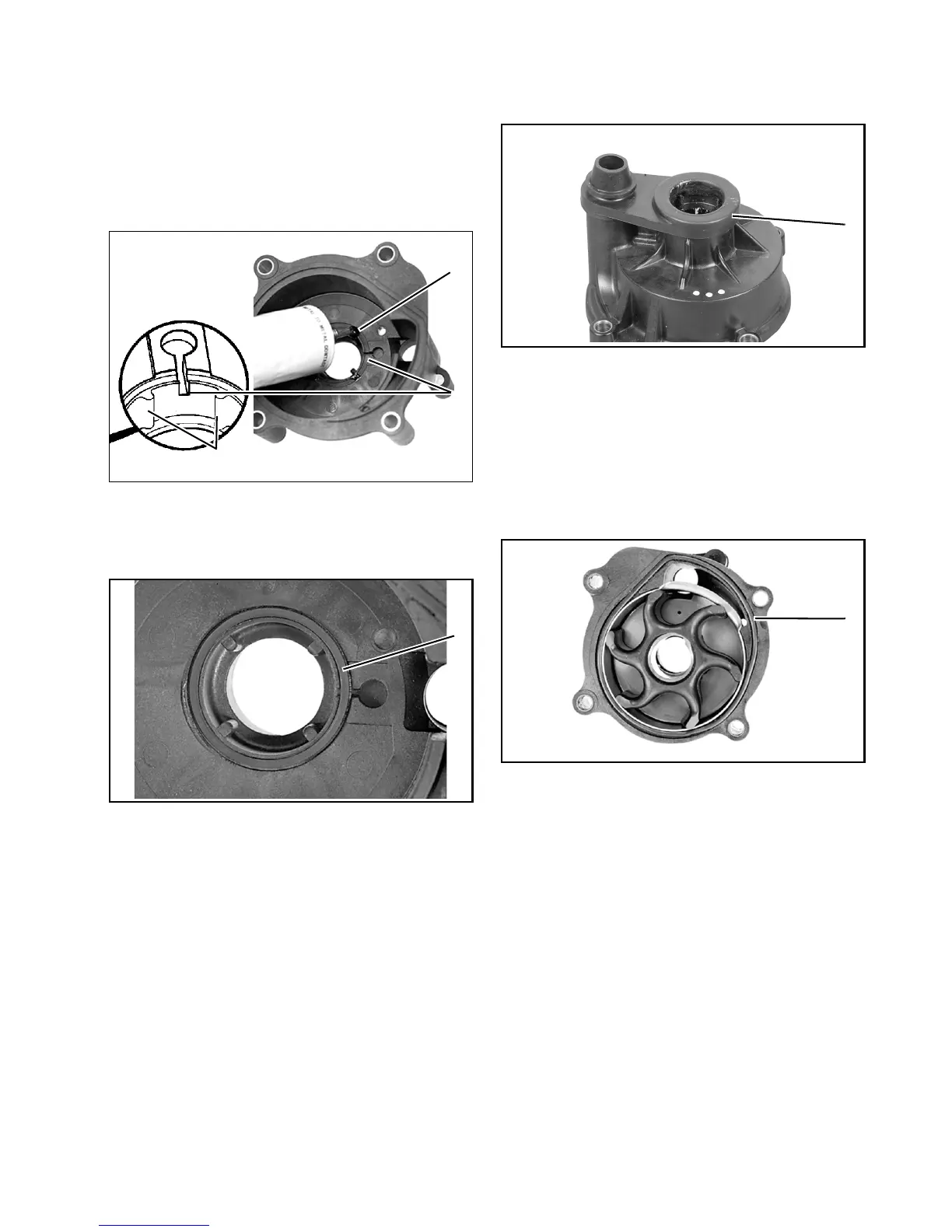

Apply a drop of Adhesive 847 in the seal ring
groove at each of the four ribs.
IMPORTANT: Do not allow any adhesive to get
into the air bleed groove in the impeller housing.
If this groove is blocked by adhesive, the pump
will lose its prime and will not pump water.
Install the O-ring in impeller housing groove.
Lightly coat the exterior of the impeller cup with
Gasket Sealing Compound. Install the cup in the
impeller housing.
Make sure vent hole in impeller cup is open.
Apply Adhesive 847 to flat side of the impeller
housing grommet. Install the grommet, flat side
down.
Lightly coat the liner with Triple-Guard grease.
With a counterclockwise rotation, install the
impeller into the liner with slot for impeller key
facing out.
Apply a thin bead of Adhesive 847 in the seal
groove, and install the special shaped O-ring
seal.
Apply Gasket Sealing Compound to both sides
of a new impeller plate gasket. Install the gasket
and impeller plate.
1. Seal ring groove
2. Ribs
3. Air bleed groove
2311
DR1185
1. O-ring 34814
1
3
2
1
1. Impeller housing grommet 007175
1. O-ring 34815
1
1
