EVO REV 600 ELLIPTICAL TRAINER
Visit us at: www.evofitness.com
13
ASSEMBLY

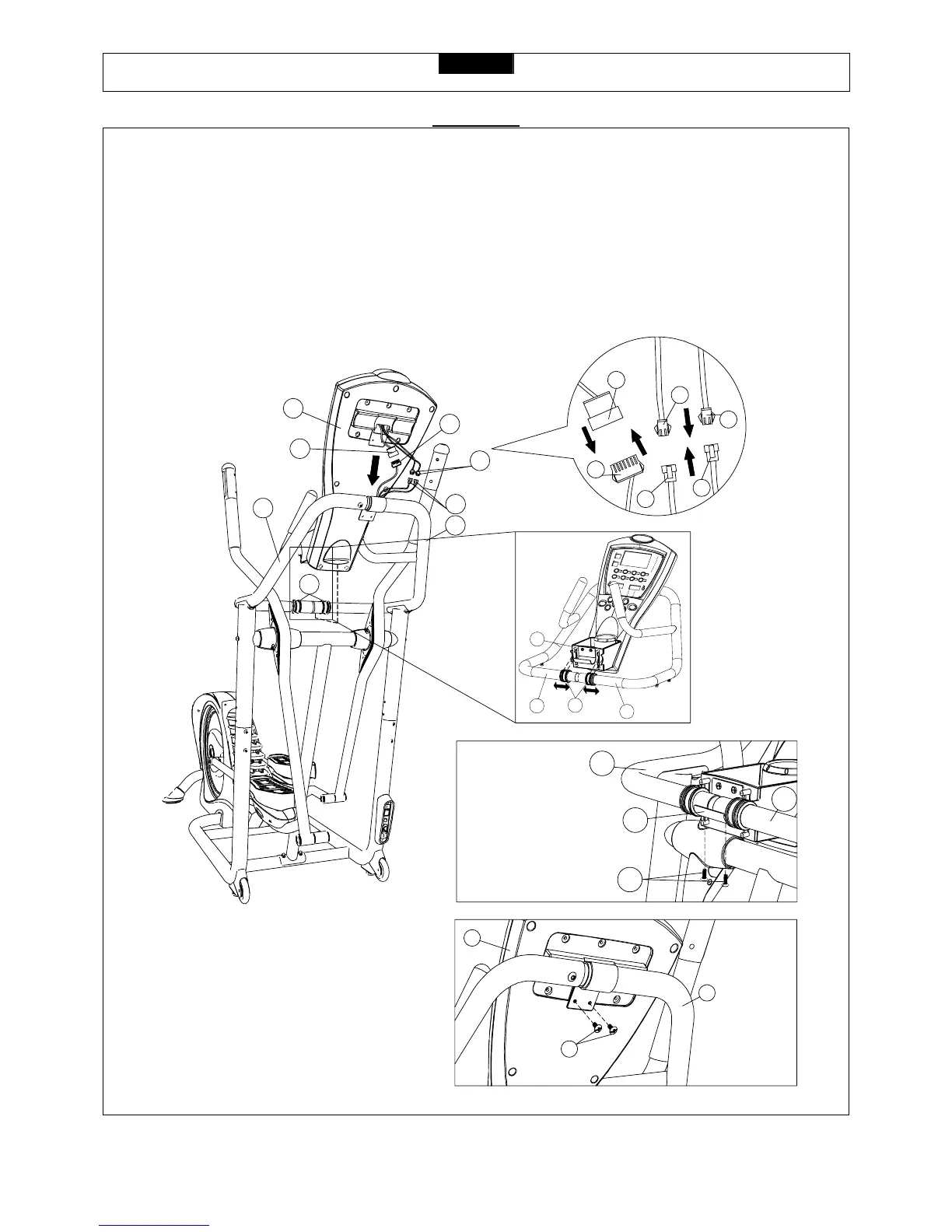

STEP 6:
Connect the Wire Harness – Top (117) to the Wire Harness – Upper (114) and the Hand Pulse Sensor Wires – Top (118) to
the Hand Pulse Sensor Wires – Upper (116) as shown in FIG 10.
Attach the Console Housing (1) to the Handrail – Left (7) and Handrail – Right (8). First fix the fringe of Accessory Tray (45)
to the Rubber Ring (44) on the Handrail – Left (7) and Handrail – Right (8) as shown in FIG.11. Then secure the Accessory
Tray Bracket (96) to the Handrail – Left (7) and Handrail – Right (8) with two M6 x 12mm Screws (105) as shown in FIG.12.
Secure the Console Housing (1) using two M6 x 20mm Screws (104) as shown in FIG.13.
NOTE: Make sure all wires are recessed into the Console Housing, do not trap or pinch any of the wires.
105
96
7
8
104
7
1
1
7
8
44
114
116
117
118
118
117
116
116
114
118
45
8
44
7
FIG.11
FIG.12
FIG.10
FIG.13
