EVO REV 600 ELLIPTICAL TRAINER
Visit us at: www.evofitness.com
12
ASSEMBLY
STEP 5:

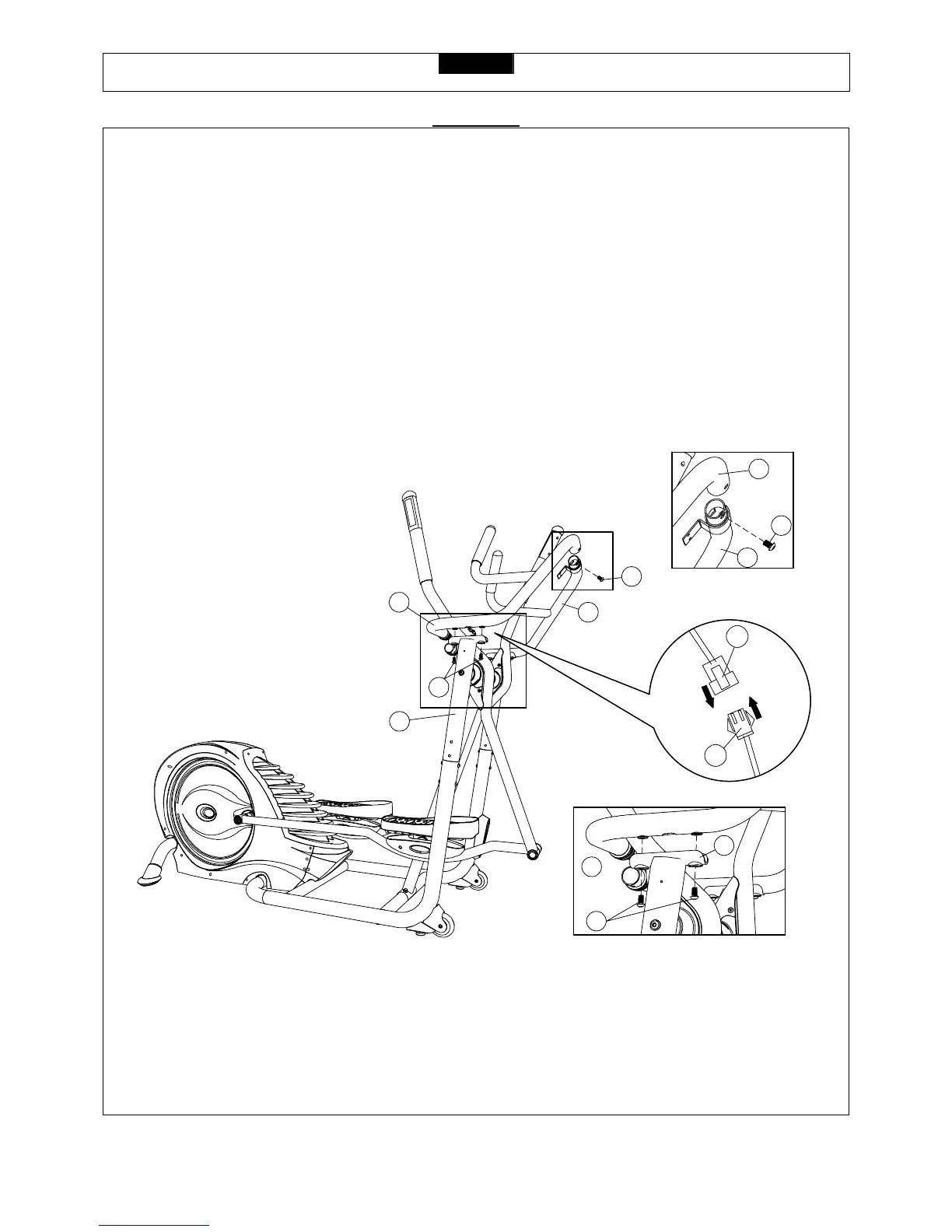

Connect the Hand Pulse Sensor Wire – Upper (116) and Hand Pulse Sensor Wire – Middle (115) as shown in FIG.8.
Attach the Handrail – Right (8) to Side Upright – Right (6) and secure using two M8 x 15mm Allen Head Bolts (74) as shown
in FIG.9. Then secure the Handrail – Left (7) to the Handrail – Right (8) with one M8 x 15mm Allen Head Bolt (74) as shown
in FIG.7.
NOTE:
Make sure the wire is recessed into the Upright, do not trap or pinch the wire.
74
8
7
74
74
7
8
74
8
6
6
115
116
FIG.7
FIG.8
FIG.9
