ASSEMBLY
STEP 3:

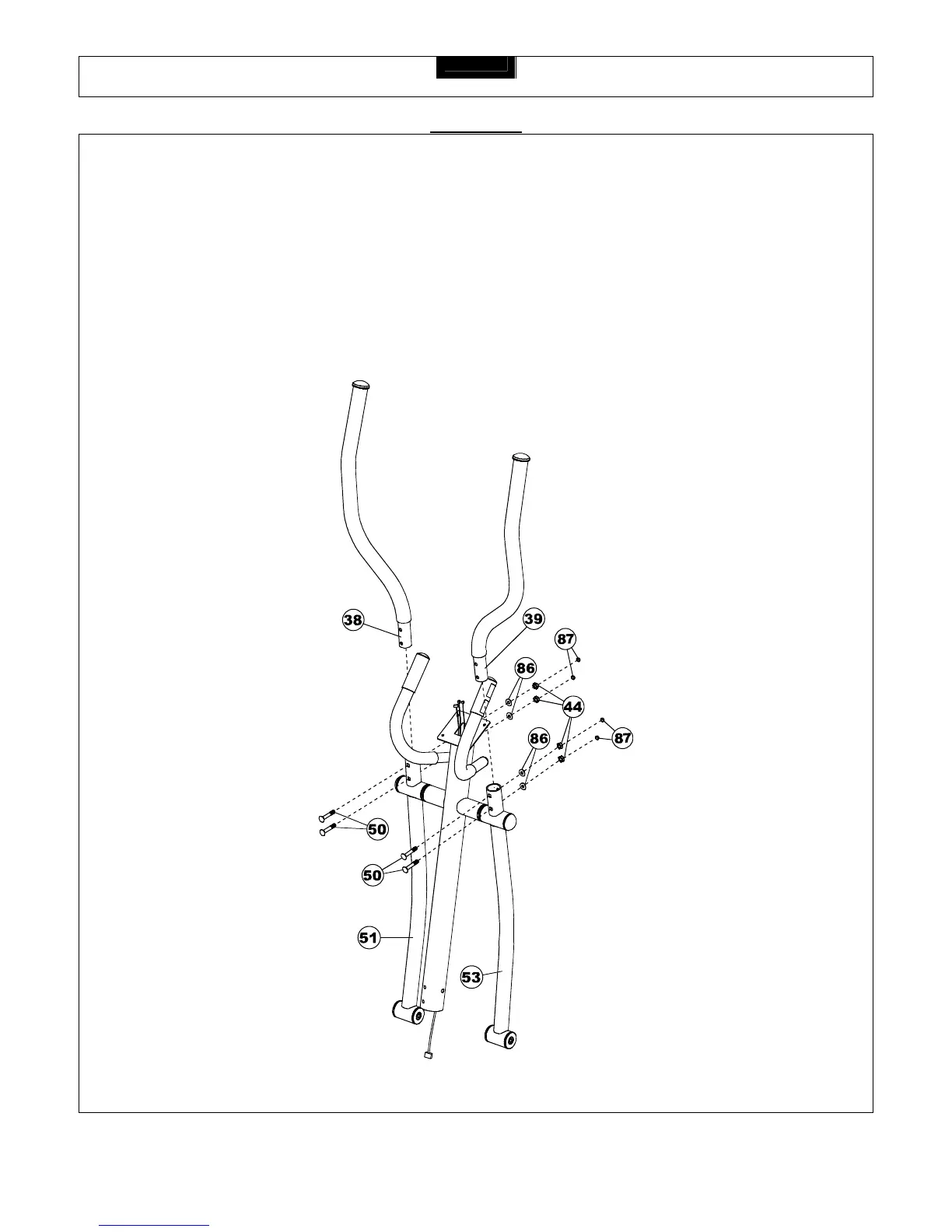

Attach the Right Dual Action Handle (39) to the Right Dual Action Arm (53) using two M8 x 48mm Carriage Bolts (50), M8 x
16mm Washers (86), M8 Nylon Nuts (44) and 13mm Nut Covers (87) as shown. Repeat this procedure to attach the Left
Dual Action Handle (38) to the Left Dual Action Arm (51).
