Evoke BREAKAWAY 125 - CoreDrive Propeller Installation; Step 1: Propeller and Bar Assembly

6
Revision A:_ 3/28/19
STEP
• PART NUMBER
→ TOOLS NEEDED

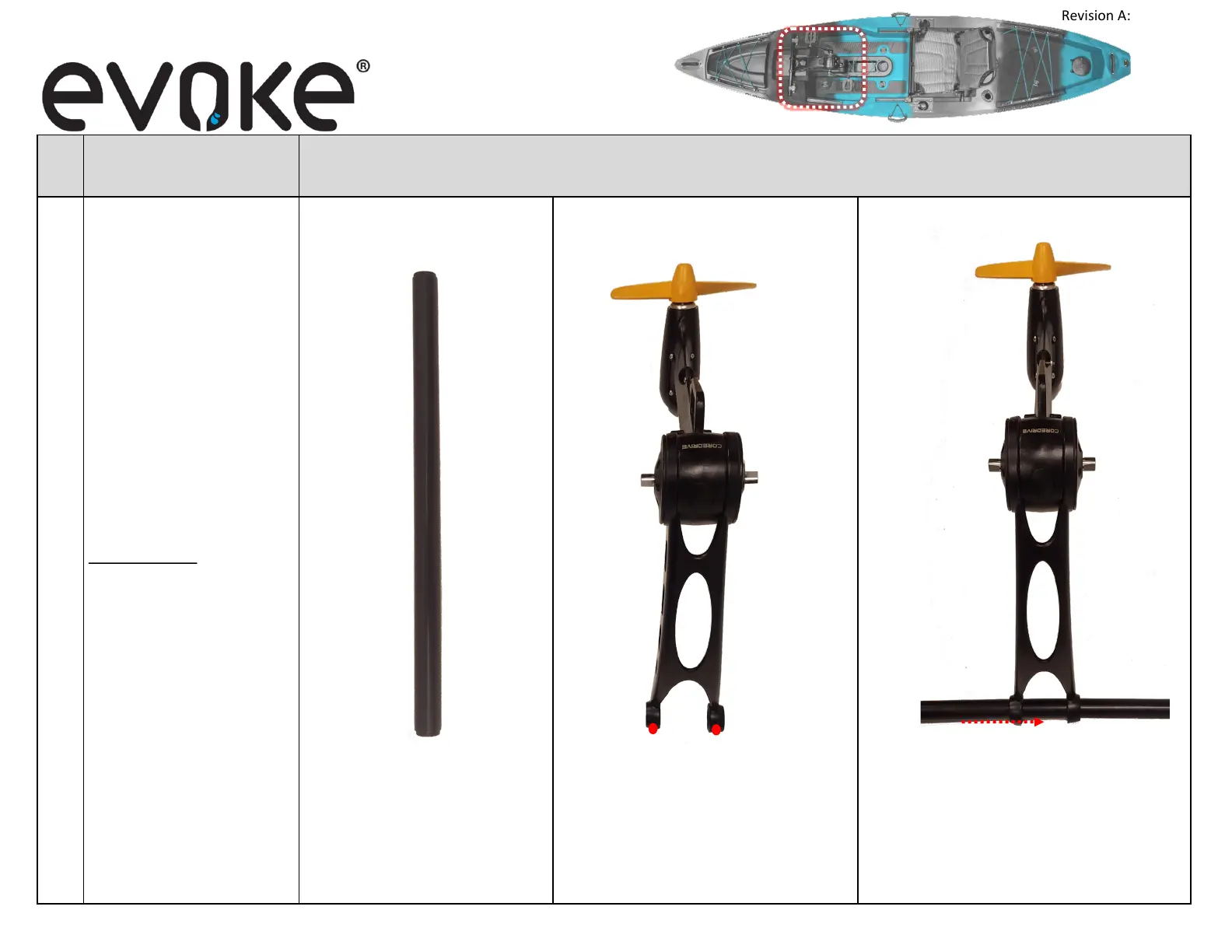

Evoke: Breakaway 125 ~ Pedal Drive Kayak CoreDrive Propeller Installaon
1
• Core Drive Propeller
TOOLS NEEDED
→ Allen Wrench
3mm or 7/64”
20” Bar
 Using an Allen wrench, loosen (2) set
screws on CoreDrive; ensuring 20” bar
is not damaged upon installaon.
 Insert 20” bar into CoreDrive
propeller, as shown.
 Using Allen wrench, ghten set
screws securing bar in place.
Core Drive
Propeller
BOW
(front)
 Remove 20” bar and propeller
from box.
