Revision A:_ 3/28/19

STEP

• PART NUMBER

→ TOOL

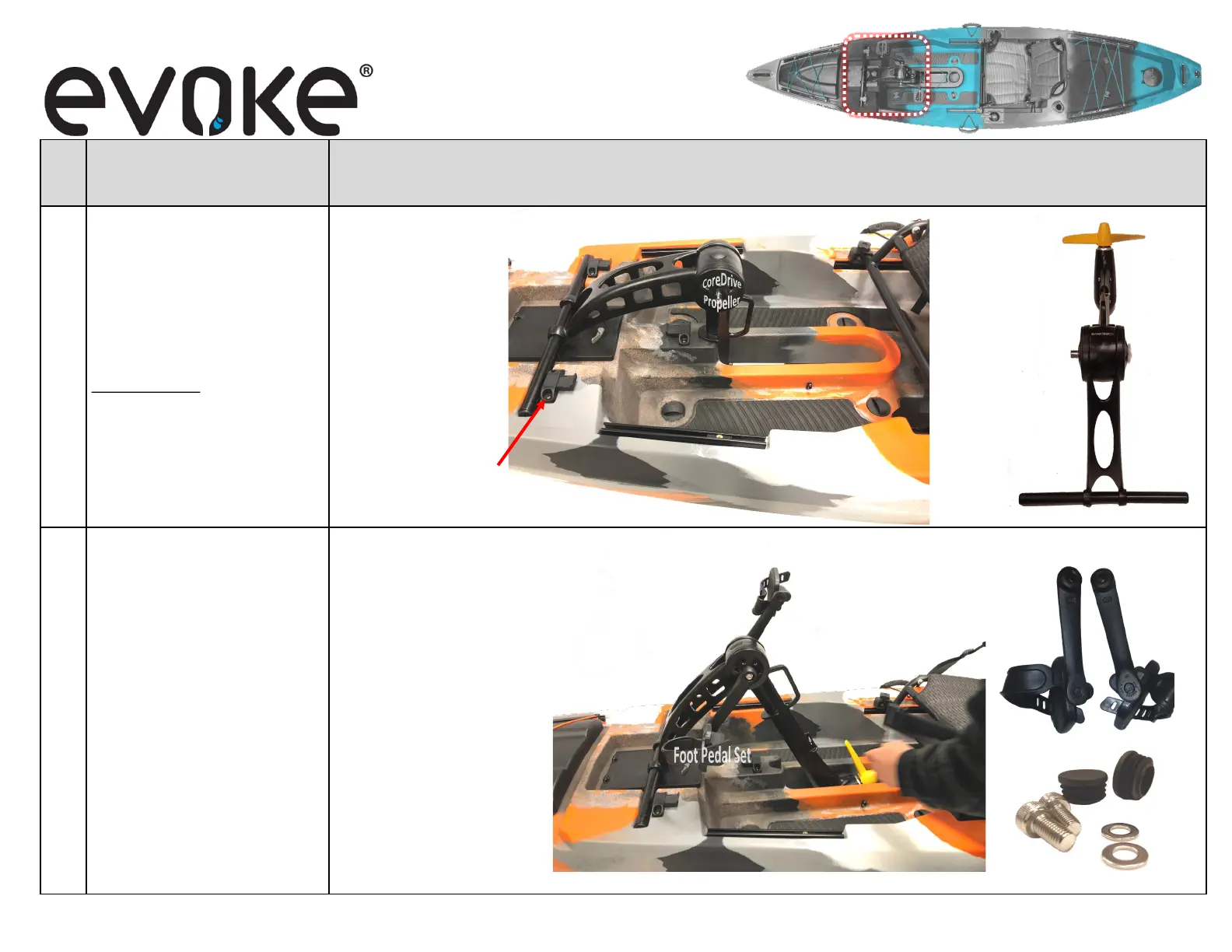

Evoke: Breakaway 125 ~ Pedal Drive Kayak CoreDrive Propeller Installaon

• CoreDrive Propeller

TOOLS NEEDED

→ Allen Wrench

 Insert CoreDrive

propeller into hull,

as shown.

• CoreDrive Propeller

Foot Pedals with bolts &

washers

 Remove foot pedals from box.

 Situate foot pedals on

to CoreDrive pegs; to be

in an exact opposite posion.

 Slide washer over bolt sha.

 Fasten bolt/washer

through foot pedal and

into core drive.

 Repeat for both foot

pedals.

Foot Pedal Set

BOW

(front)

NOTE: Push latches should

be closed over top of bar

and sha edge when in use.
