Evoke BREAKAWAY 125 - Step 4: Installing Splash Guard

8
Revision A:_ 3/28/19
STEP
• PART NUMBER
→ TOOL
Evoke: Breakaway 125 ~ Pedal Drive Kayak CoreDrive Propeller Installaon
4
• CoreDrive Propeller
Splash Guard
• (2) Bolts - secured to
main propeller
• (2) Nuts - secured to
main propeller

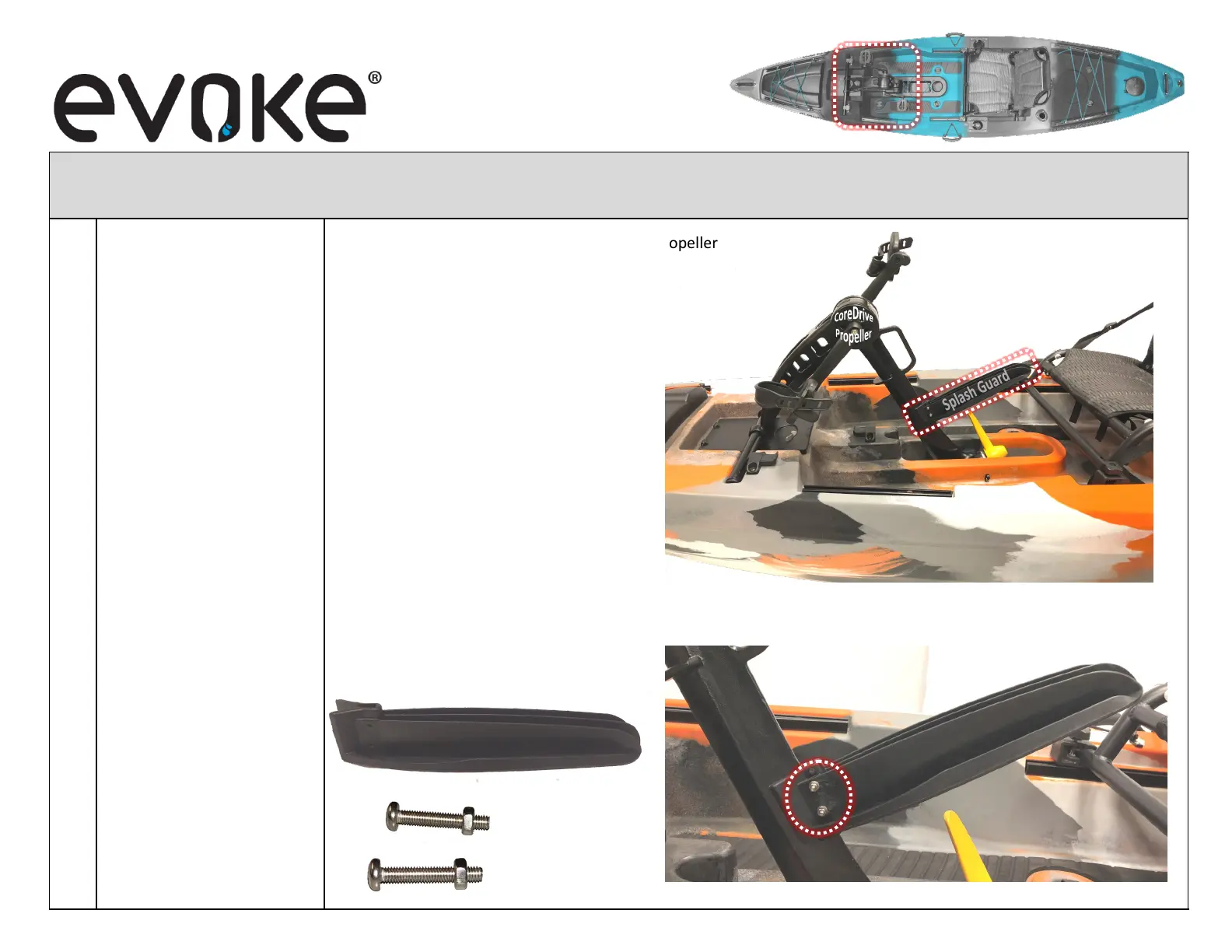

 Remove (2) bolts/nuts from the CoreDrive propeller
at the splash guard install locaon.
 Hold splash guard in place,
ensuring it’s aligned with
holes on the main propeller.
 Insert bolt ends through
STARBOARD side of holes.
 Using nut on each end of bolt,
 Fasten splash guard to
CoreDrive propeller, as shown.
BOW
(front)
STARBOARD (right)
STARBOARD (right)
