GRAVITY FED INSTALLATION INSTRUCTIONS
CONFIGURE YOUR NEXUS 220 FOR GRAVITY FED INSTALLATION

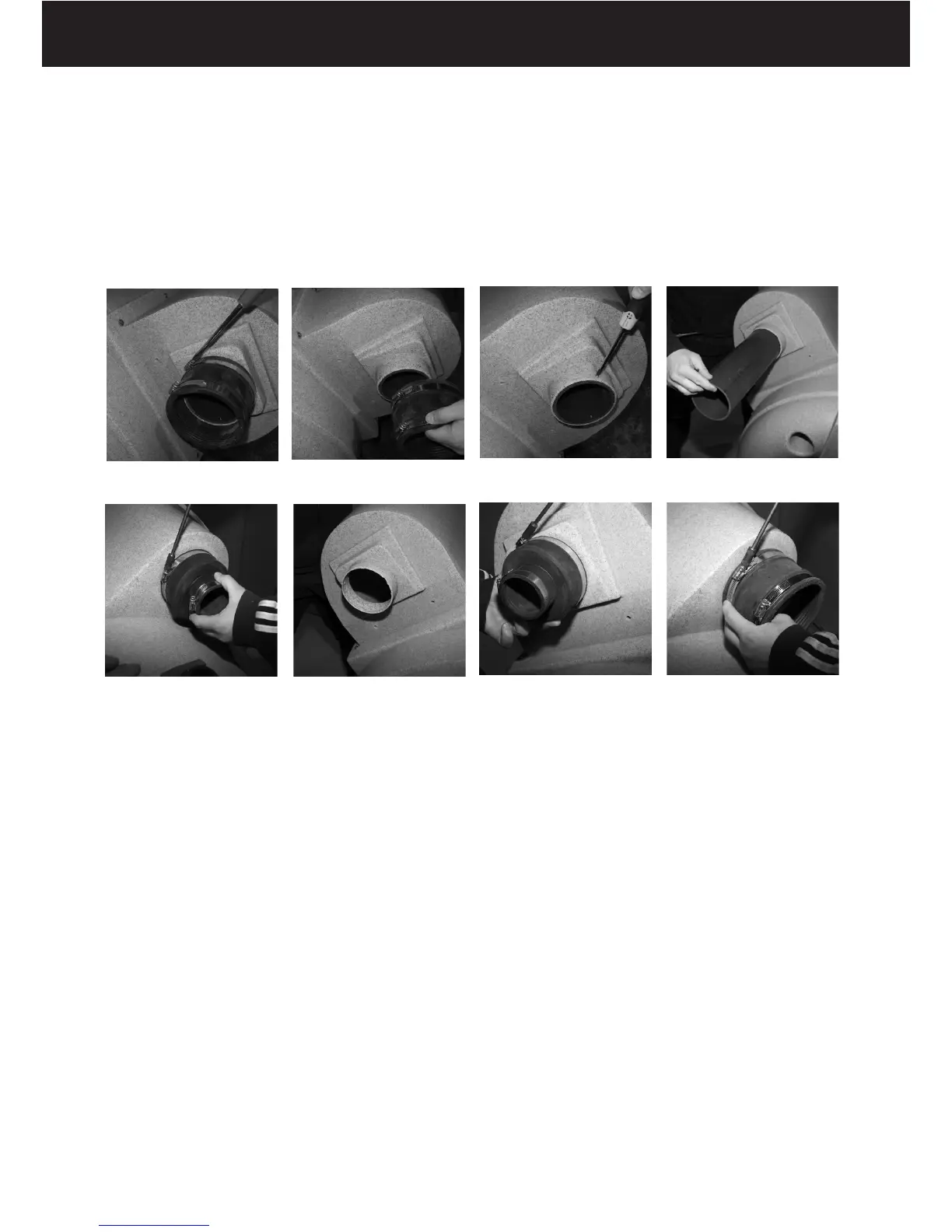

Your Nexus 220 comes with a stand pipe in the outlet. This is for use in PUMP FED
SET-UPS ONLY. Please remove the standpipe from the Nexus outlet by undoing the
jubilee clips (Figure 13.1) and removing the 4”- 4” EazyConnector (Figure 13.2),
remove the 3 retaining screws (Figure 13.3) and slide out the 4” PVC pipe (Figure 13.4).
Figure 13.1 Figure 13.2
Figure 13.3 Figure 13.4
Figure 13.5
Figure 13.8
Figure 13.7
Figure 13.6
1. Remove the 4”- 2” EazyConnector from Nexus inlet (A) (Figure 13.5).
2. On the Nexus Outlet (B) (Figure 13.6) attach the 4”- 2” EazyConnector (Figure 13.7).
3. Attach the 4”- 4” EazyConnector to the Nexus Inlet (A) (Figure 13.8).
4. Ensure the EazyConnector underneath the Nexus is also tight at this time.
19
