GRAVITY FED INSTALLATION INSTRUCTIONS
WASTE PIPE CONNECTION
The waste valves are where the waste from your Nexus is discharged when cleaning and
prior to draining. The 1½” valve is for the Inner Chamber (D) and is used for when cleaning
the Eazy, while the ¾” valve is for draining the outer chamber (C) (only when and if
required).
Both of these valves can be connected using a waste pipe kit (optional extra) as shown in
Figure 15.1 to 15.3 or can just be discharged individually. If the Nexus is located below
your drain height the waste can be either discharged into a sump where a submersible
pump can be used to pump the waste away or an in-line pump can be connected to the
waste line where it can pump directly to waste.
Once your Nexus is installed and plumbed in as described, you are ready to fill the Nexus
and begin treating your pond water.

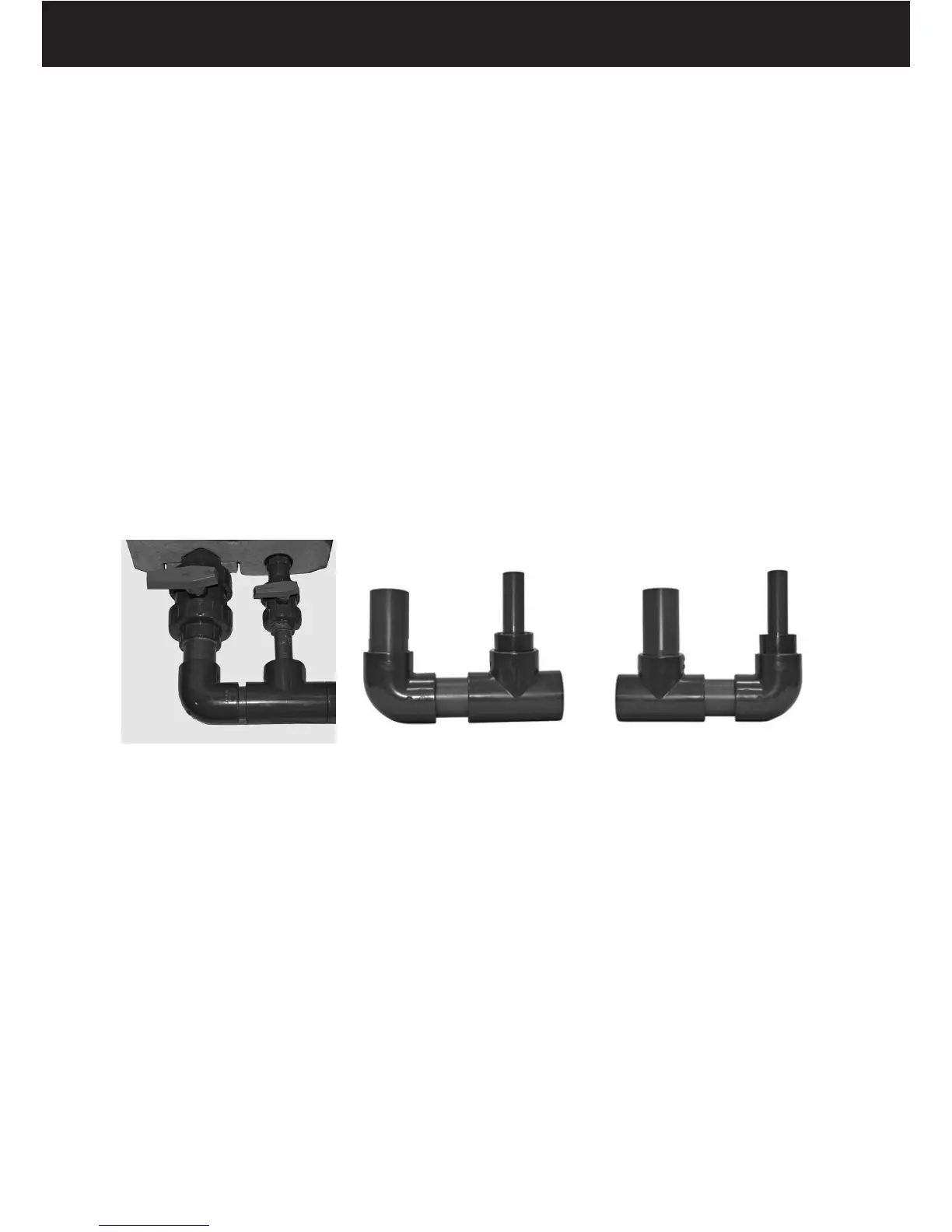

Figure 15.1. Installed
Figure 15.3. Exit to leftFigure 15.2. Exit to right
