www.evolutionsteel.com
8
EVO42
ASSEMBLY
GB
Your Evolution Power Tools saw is shipped
complete. Remove all contents from the box and
inspect to ensure no damage was incurred during
shipping, and that the items listed below are
included.
ITEMS SUPPLIED
Description Quantity
Instruction Manual 1
Coolant System 1
Guard 1
Hex Key 2mm 1
Hex Key 3mm 1
Hex Key 4mm 1
Hex Key 5mm 1
Handles 3
Wing Screws 2
Spring Washers 2
Safety Strap 1
Carry Case 1

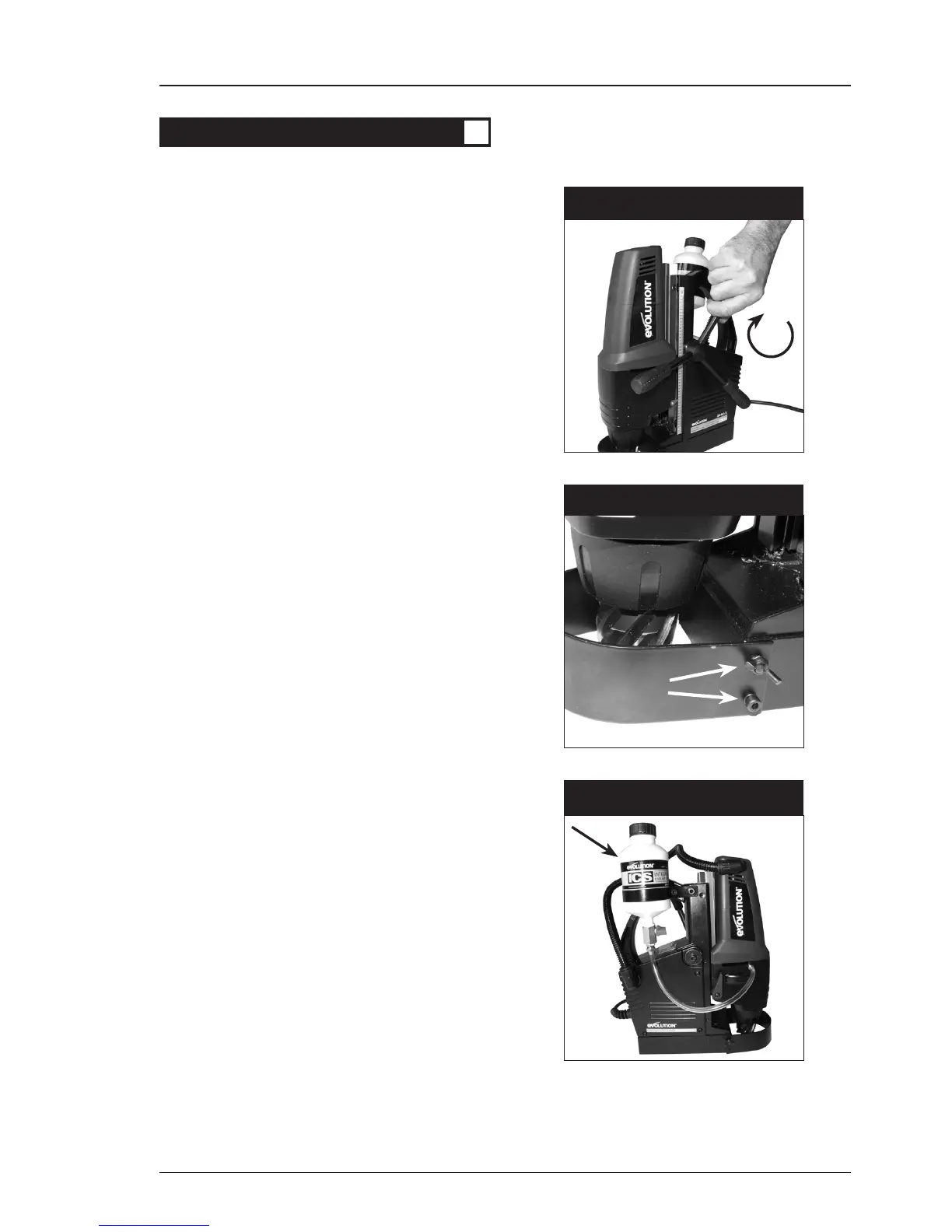

1. Insert the three handles into the spindle boss
and screw them tightly in place. (Fig. 1)
2. Attach the guard using the Wing Screws/ Socket
Headed Screws and washers provided. (Fig. 2)
3. Attach the coolant tank and coolant pipe to the
Left Hand side of the machine. The coolant pipe is
a push fit onto the quick fit connector on Left Hand
side gearbox casing. The coolant tank should be
fastened to the machine using the ø 6 mm socket
headed screw inserted into the threaded hole
located at the top Left Hand side of the machines
carriage. (Fig. 3)
Note: For some operations it may be convenient
to remove the coolant tank and supply pipe, and to
use alternative coolant application methods.
FIG 1
FIG 2
FIG 3
