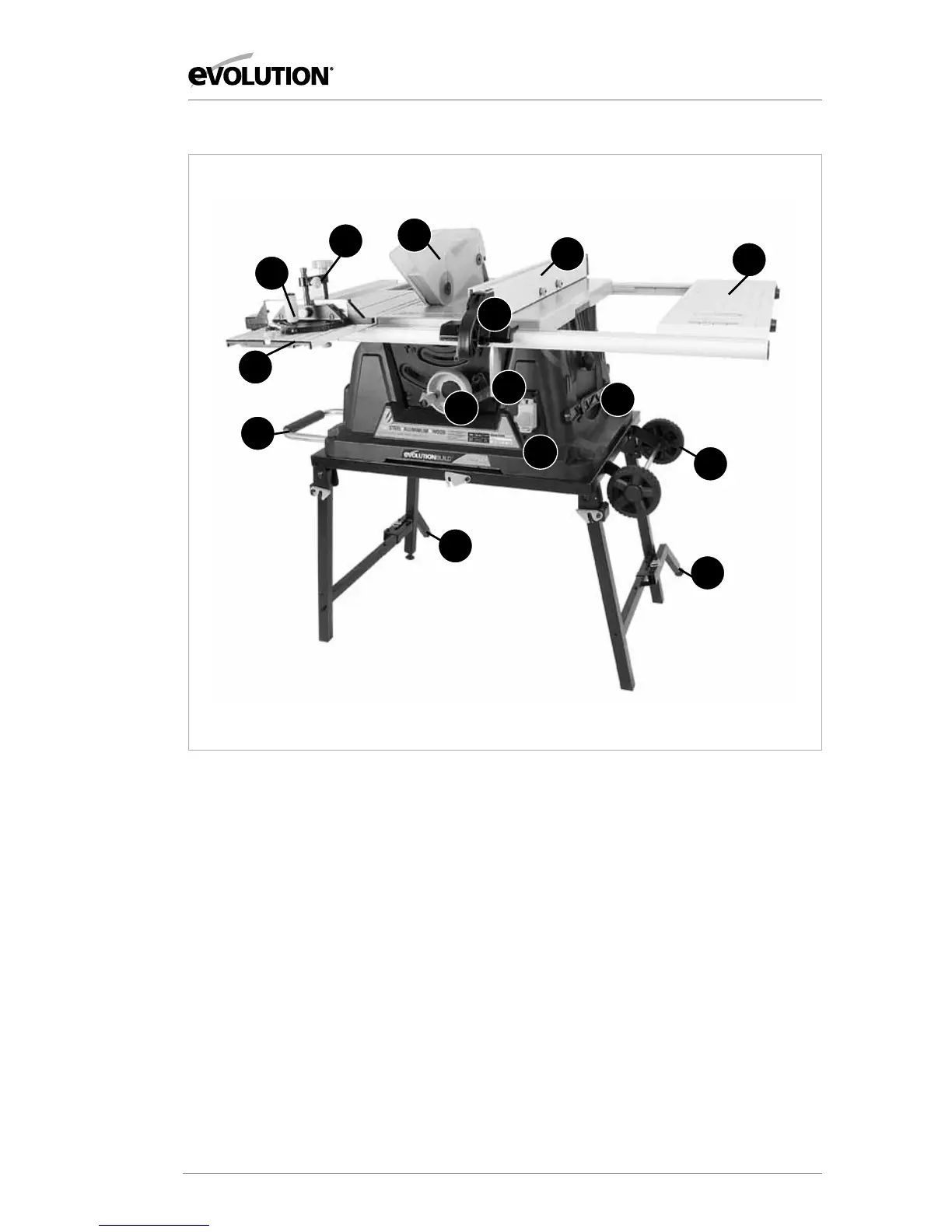

MACHINE OVERVIEW OF EVOLUTION 255mm (10˝) RAGE TABLE SAW
Know your parts
1. On/Off Switch
2. Sliding Carriage
3. Mitre Gauge
4. Blade Guard
5. Rip Fence
6. Rip Fence Locking Handle
7. Transportation Handle
8. Transportation Wheels
9. Hold Down Clamp
10. Dual Function Adjustment Handle
11. RH Table Extension
12. RH Table Locking Lever
13. Push Stick
14. Rear Cantilever Braces
11
5
4
9
3
2
7
10
12
1
13
8
14
14
6

Evolution RAGE 5 Specifications

General

Bevel Capacity	45°
Max. Steel Thickness	6 mm
Max. Square Tube	80 x 80 mm
Bore	25.4 mm
Kerf Thickness	2 mm
Bevel Range	0° - 45°
