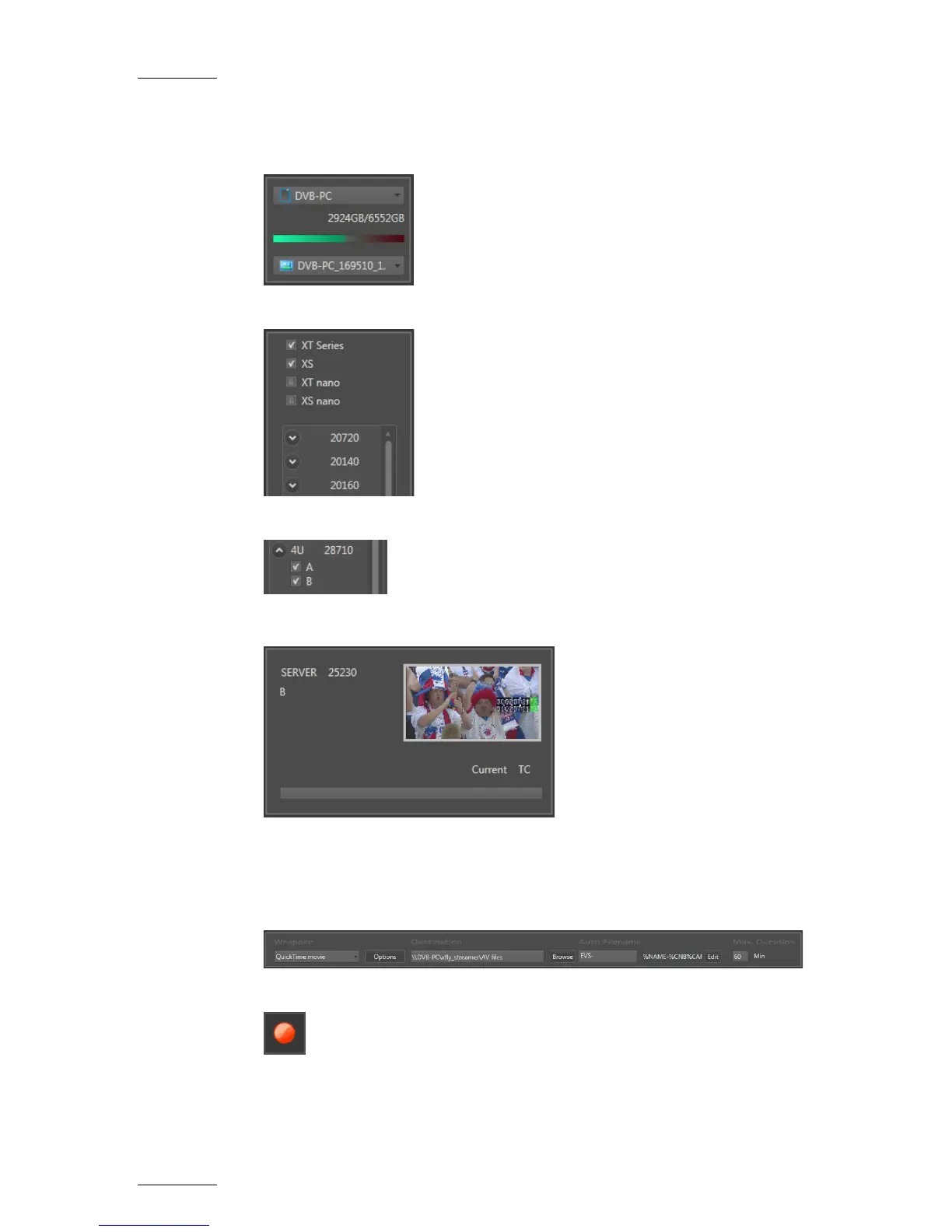

3. Select the XFly hardware and the processing device i.e. XTAccess from the
two drop-down lists in the upper left corner. The local system and software,
if present, always appear at the top of the list.
4. Then set a server type to display the servers list:
5. Into the server list, click the arrow to display the list of available channels:
The selected channel is now displayed in the channel area with thumbnails
generation to preview the channel:
6. Repeat step 5 to select all channels desired.
7. Check and if necessary modify the wrapper selected, the path to save the
file, the format string for automatic filenaming and/or the maximum duration.
8. Then click REC command to start the recording:
The REC command lights red and a red frame is displayed around each
channel. All selections and settings are disabled during the recording.
