EVS XFly

XFly – Version 1.0 – Hardware Technical Reference Manual
EVS Broadcast Equipment – April 2012
Issue 1.0.D
3

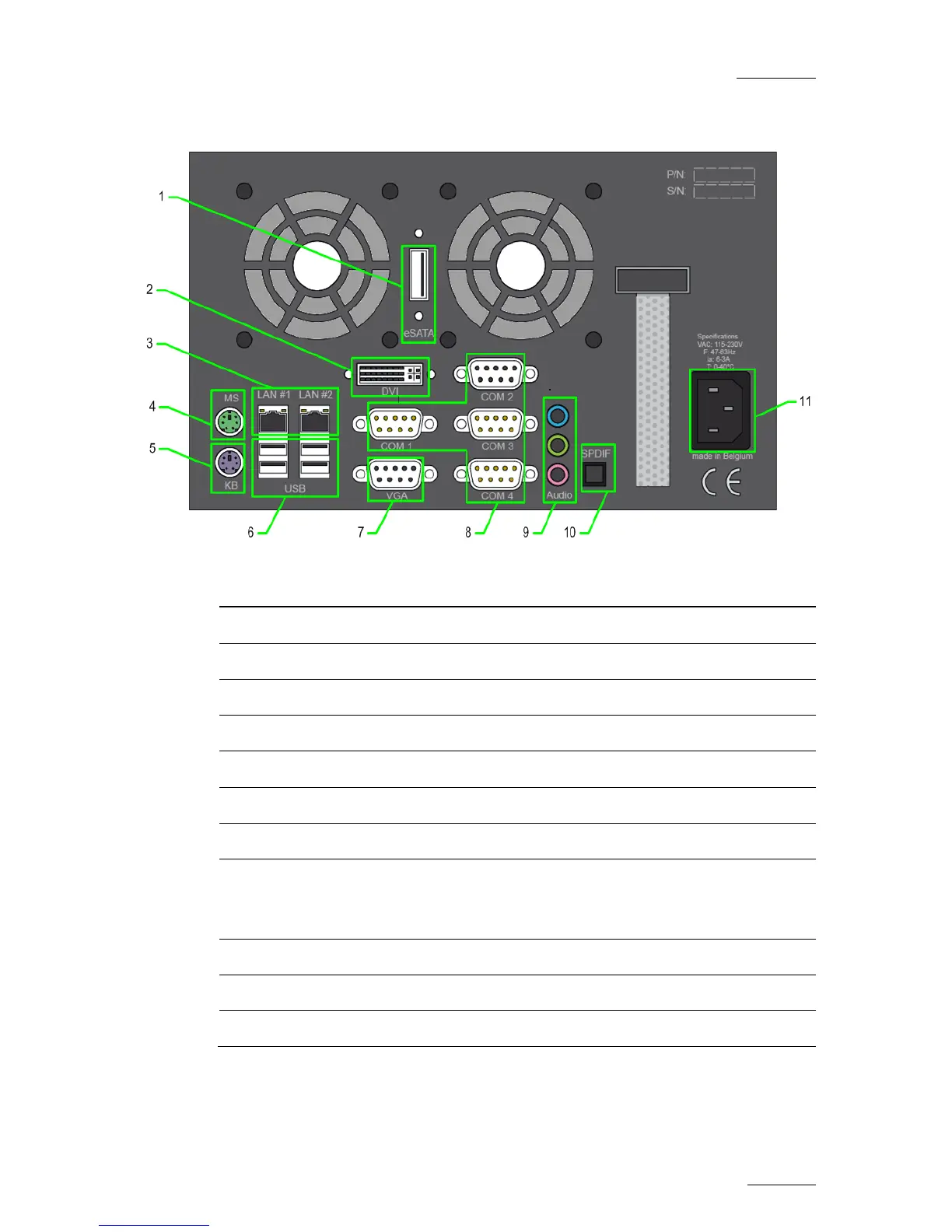

2.2.2 REAR PANEL
Number Element
1 1 x eSATA port
2 1X DVI-D port
3 2 x Ethernet Gigabit ports compatible JumboFrame 9K
4 Mouse connector
5 Keyboard connector
6 4 x USB ports
7 1 x VGA connector
8 3x RS232 port DB9-M and 1X RS422 port DB9-F
The port number 2 is configured as RS422 for EVS video server
control.
9 Audio connectors
10 S/PDIF connector
11 Power supply connector
