eWON FLB 3202 - Front Panel LEDs

Chapter 4
Mechanical Layout and Interfaces
4.1.2. Part Number Structure for Extension Cards
FLB3202_00/S
FL
FL is the prefix for the extensions of the
eWON Flexy family
Only FL (constant)
B
1 alphabetic sign (CAP)
Defines the slots of the base module in
which the extension can be inserted.
See also § 4.5.1 Base Unit Slot
Compatibility
A 2 first slots only ●●○○
B 2 last slots only ○○●●
X In any slot ●●●●
3202_00 3G GSM Extension Card. The suffix _00 is used for software options.
/S
The suffix might have an optional “/” character
It might also be blank or include “S” character => Indicates compliance with
the UL/IEC/EN 60950 standard.

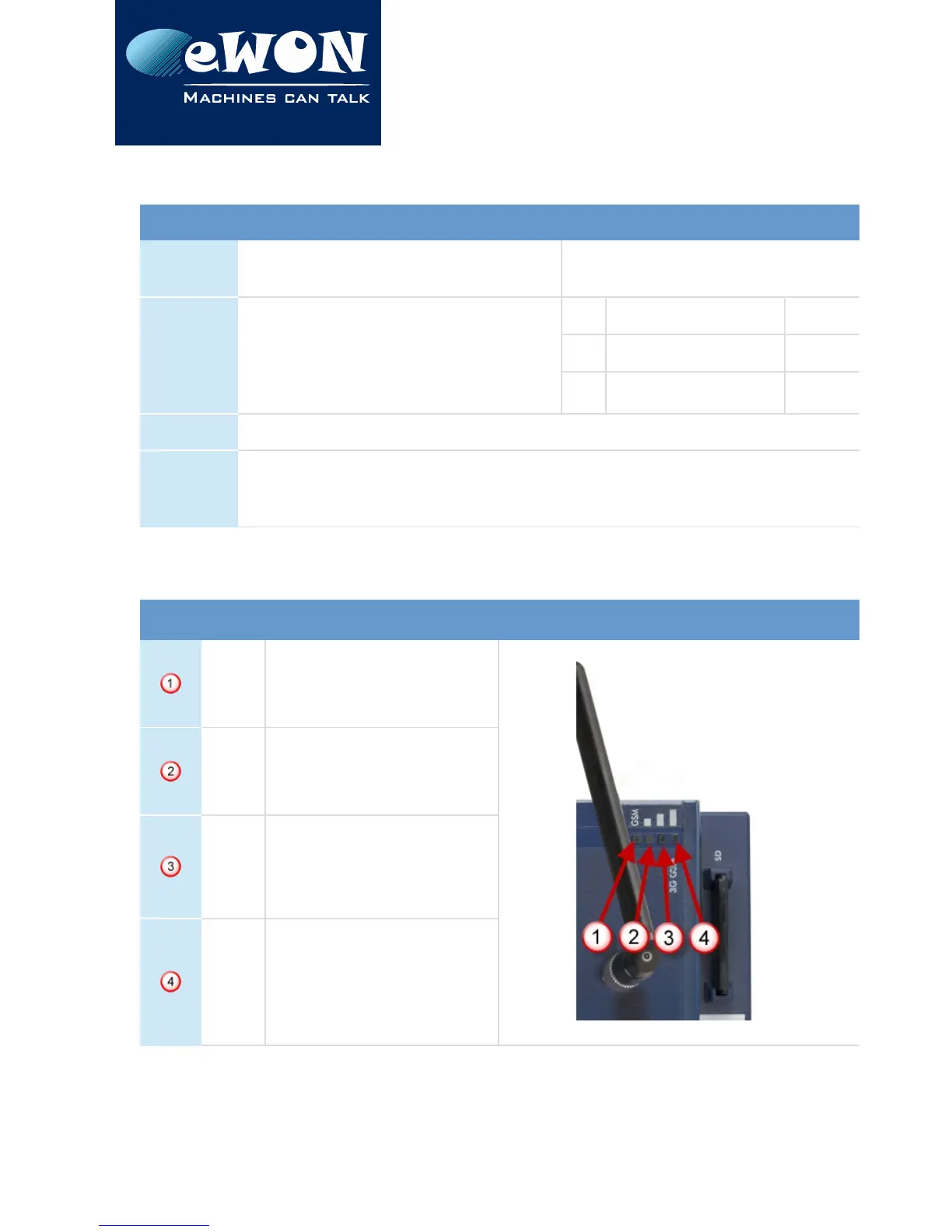

4.2. Front Panel LEDs
Item Mark Function Picture
GSM
Tricolor
RED/ORANGE/GREEN
Green ON =
Modem is online
▄
Reception Signal level
Orange ON = level >1
Poor signal
█
Reception Signal level
Orange ON = level >10
Signal is OK
▄
█
Reception Signal level
Orange ON = level >16
Good signal
Page 8 / 17 eWON Flexy 3G GSM Extension Card FLB 3202 | IG 019
