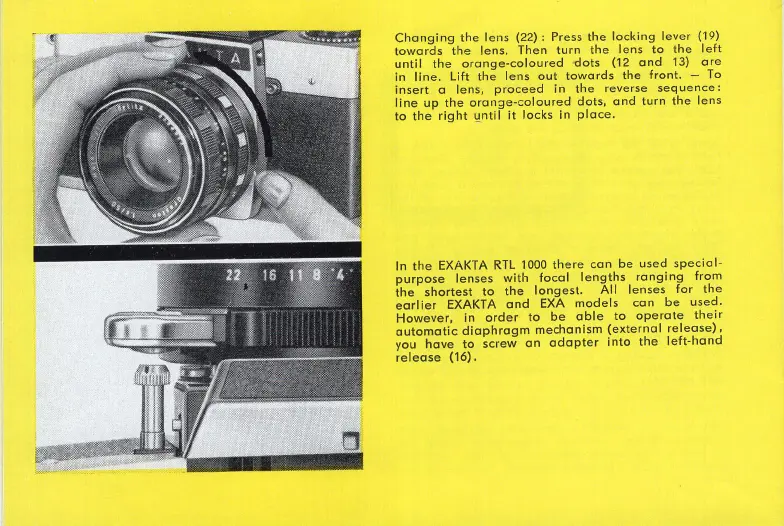

Exakta RTL 1000 - Page 22

Changing the lens (22) : Press the locking lev er (19)
towards the lens. Then turn the lens to the left
until the orange-coloured dots (12 and 13) are
in line . Lift the lens out towards the front. - To
insert a lens, proceed in the reverse sequence :
line up the oran;Je~coloured dots. and turn the lens
to the right 'inti! it locks in place.
In the EXAKTA RTL 1000 there can be used special-
purpose lenses with focal lengths ranging from
the shortest to the longest. All lenses for the
earlier EXAKTA and EXA models can be used.
However. in order to be able to operate their
automatic diaphragm mechanism (external release),
you have to screw an adopter into the left-hand
release (16).
