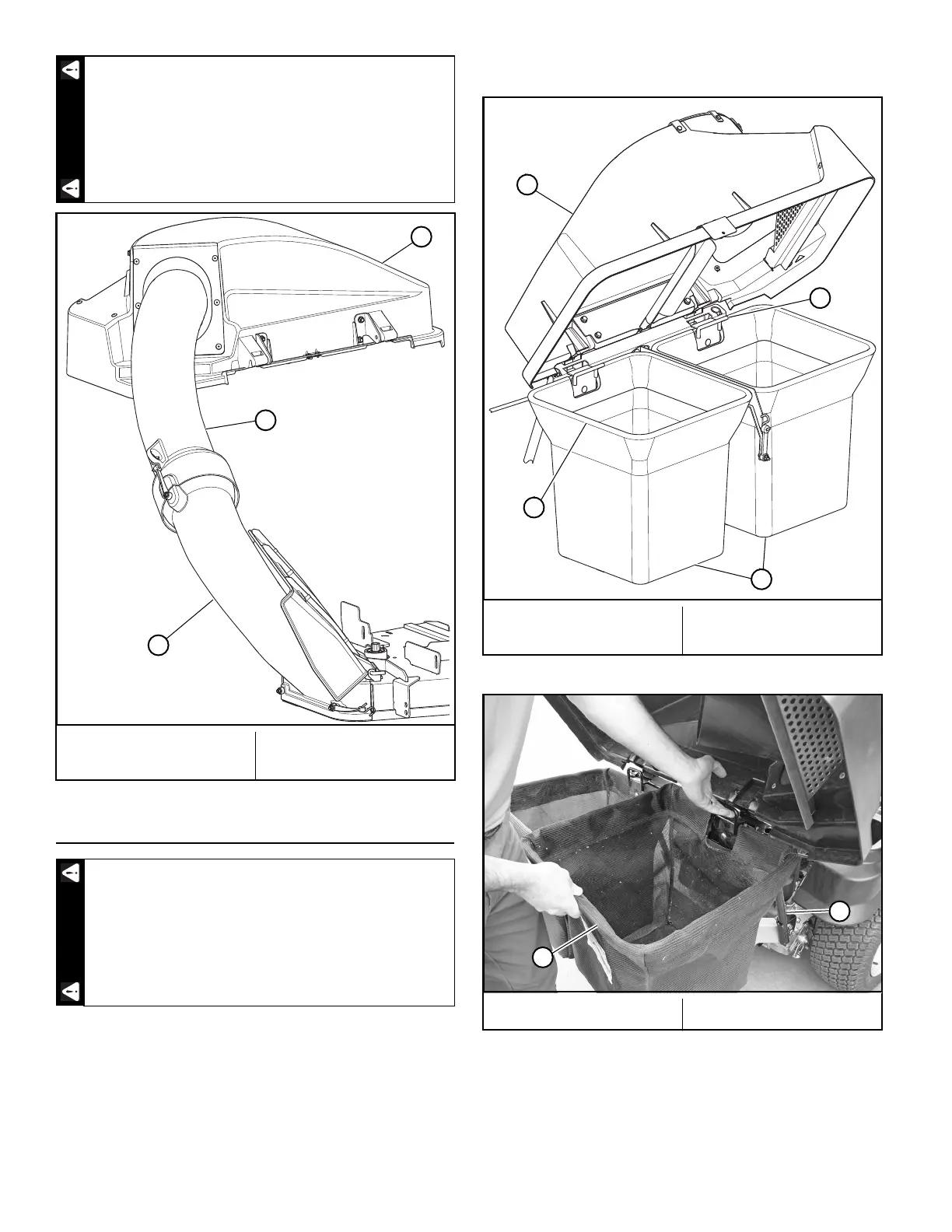

Unloading the Catcher Bags

Get off the mower. Raise the catcher lid and remove the

bag by lifting the bag frame at the rear of the bag and the bag

frame handle. Proceed to dump the bag. Figure 4-2 &

Figure 4-3

Return the bags to the catcher frame and close the catcher

lid. Figure 4-3

Never engage the mower deck unless the catcher

transfer tube is secured in place, with the bungee

latch, on the outlet tube and is inserted into the

catcher lid. Figure 4-1

A. Outlet tube

B. Transfer tube

C. Catcher lid

Figure 4-1

Park the unit on a level surface, disengage the

deck clutch switch, place the steering control

levers in the park brake position and shut the

engine off. Make certain the deck clutch switch is

in the disengaged position before unloading.

WARNING

A. Catcher lid

B. Bag frame

C. Catcher bag

D. Bag frame handle

Figure 4-2

A. Catcher Frame B. Bag

Figure 4-3
