22 | P a g e

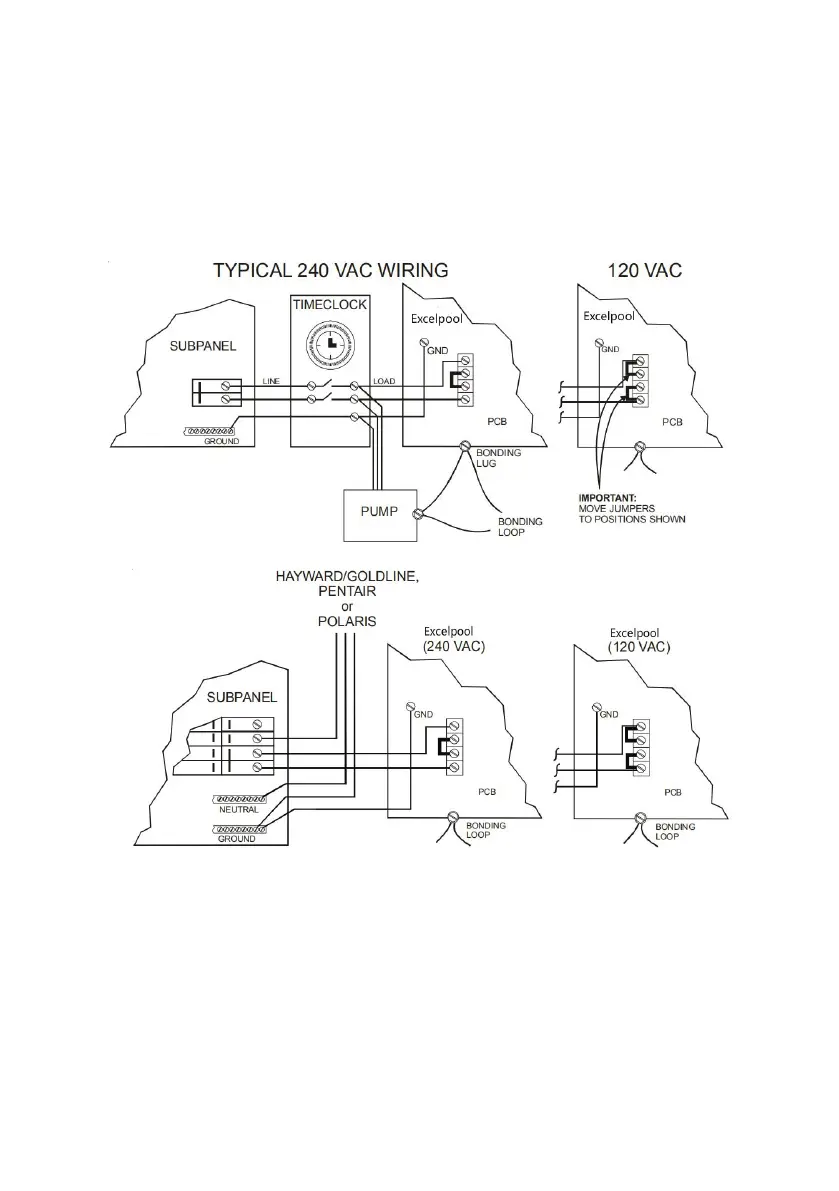

For Canadian models, the Excelpool System shall be connected

to a circuit protected by a class A ground fault interrupter. Be

sure to connect the GROUND wire to the green ground screw

terminal located on the INSIDE WALL of the enclosure.

Note: Wire the pump directly to the time clock—do not use the

Excelpool System as a junction box.
