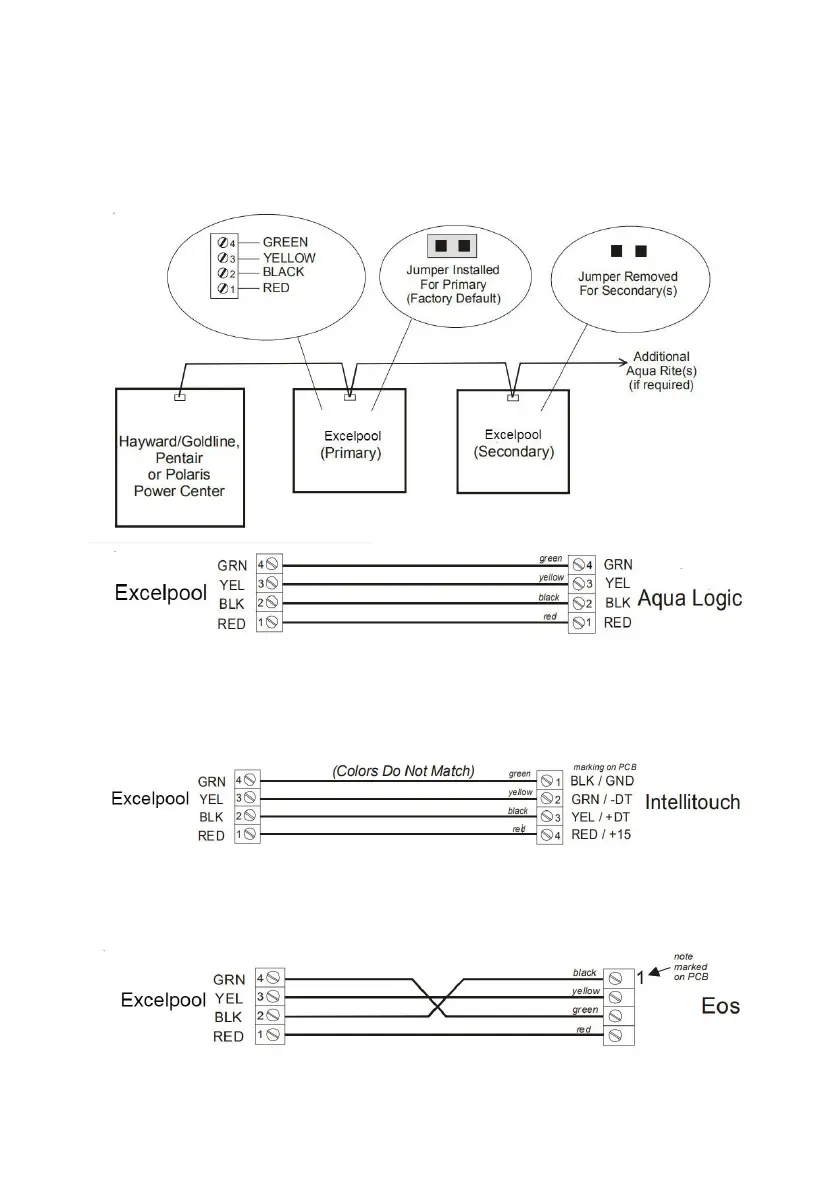

NOTE: There must be only 1 “primary” unit. All other Excelpool
System units must be configured as “secondary”.
Goldline-Attach wires to proper screw terminals as show below.
Pentair-Attach wires to opposite numbered screw terminals as
shown below. Note that the colors marked on the Pentair PCB
do not match the Excelpool System.
Polaris-Attach wires to proper screw terminals as shown below.
Note that screw terminal “1” is marked on the Polaris PCB.
