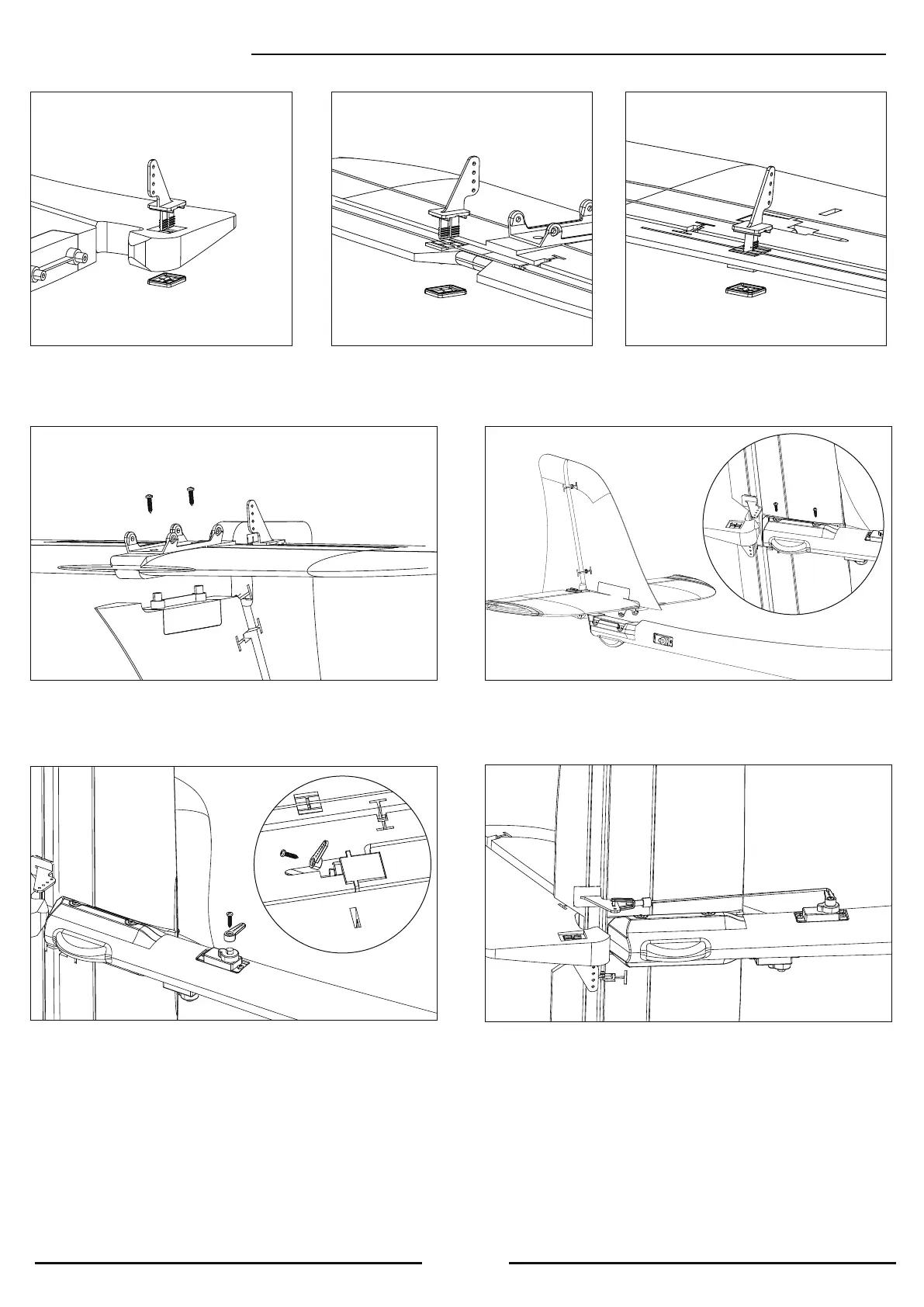

3. Secure the tail part to fuselage with 4pcs
PA2.6*8mm screws.
Setup Instruction
1. Install the control horns to the tail part as shown above. Make sure the horn legs are
secured through the plates.
2. Install the horizontal and vertical tails
with 2pc
s PA2.6*8mm screws.
4. Install the servo arms to each servo
with a PWA2.3*4mm screw.
5. Install the pushrod(1.4*135mm) to
connect the servo arm and the surface
control horn for the horizontal tail. Repeat
this step to install the pushrod(1.4*110mm)
for the vertical tail.
To Next Page
