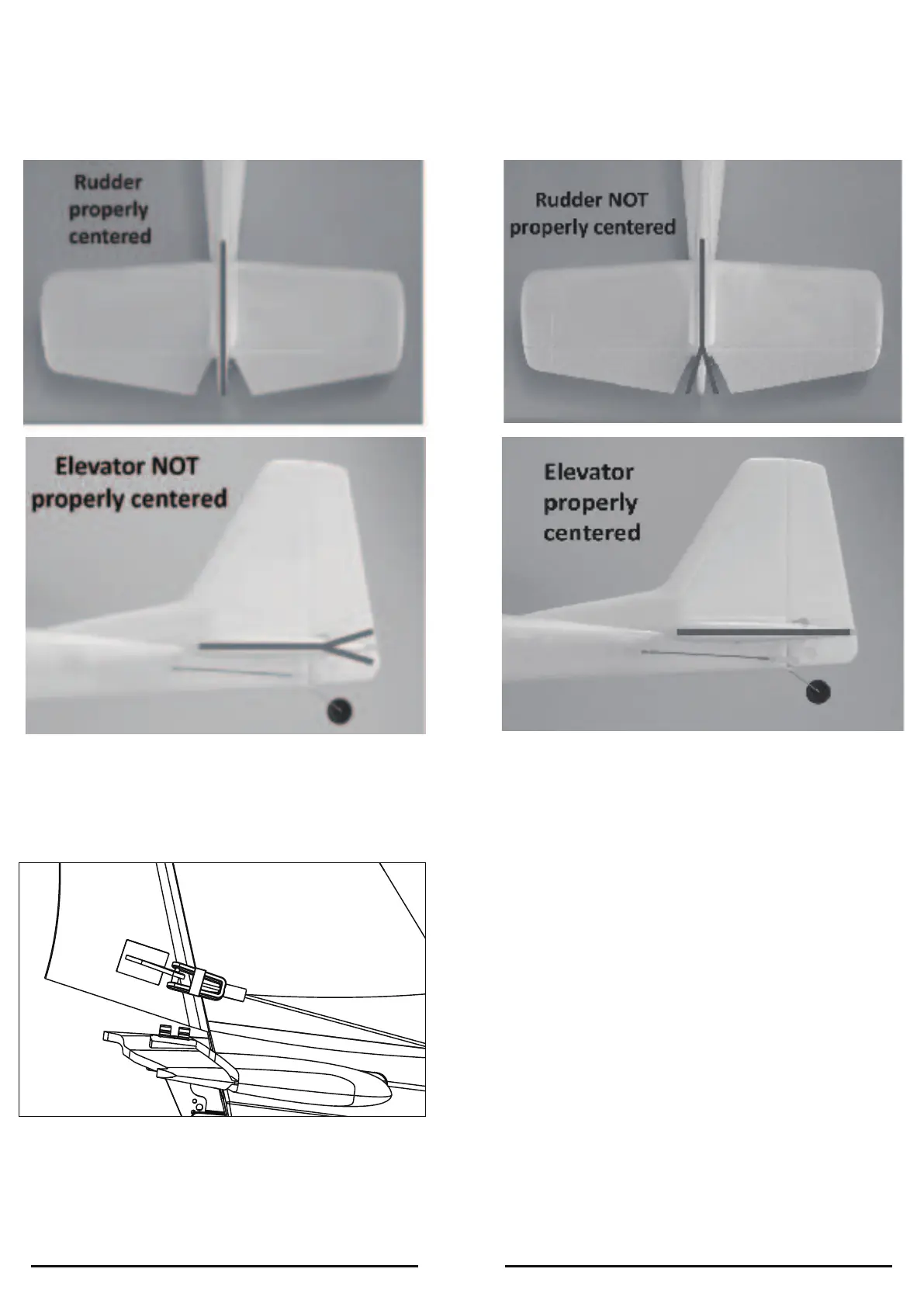

After connecting the clevis to the control horns, observe the rudder to see if it is centered.
If it is angled off to the right or left, you can adjust the length/position of the push rod/
clevis so that the surface is centered. Repeat the steps on elevator and aileron to ensure
the surfaces are center too.
NOTE: You should always rotate the clevis until the pin is vertical with the control horn to
ensure the pin is not under any excessive load/pressure when inserted in the hole and
during operation. If you can’t properly make the pin vertical with the control horn, slightly
adjust the trimmer as needed.
Also, we strongly recommend to install the
included clevis keepers to provide extra
security.
