Exploranium KT-9 - Page 40

32
Taking measurements
The
S
CAN
mode allows for rapid examination of rock faces and
lengths of core. The variable audio allows you to rapidly corre-
late visually the various lithologies being examined. This mode
may also be used for detailed core logging with optional digital
recording.
The procedure for selecting the
S
CAN
mode is described in detail
on page 18 and is shown schematically in the following figure:

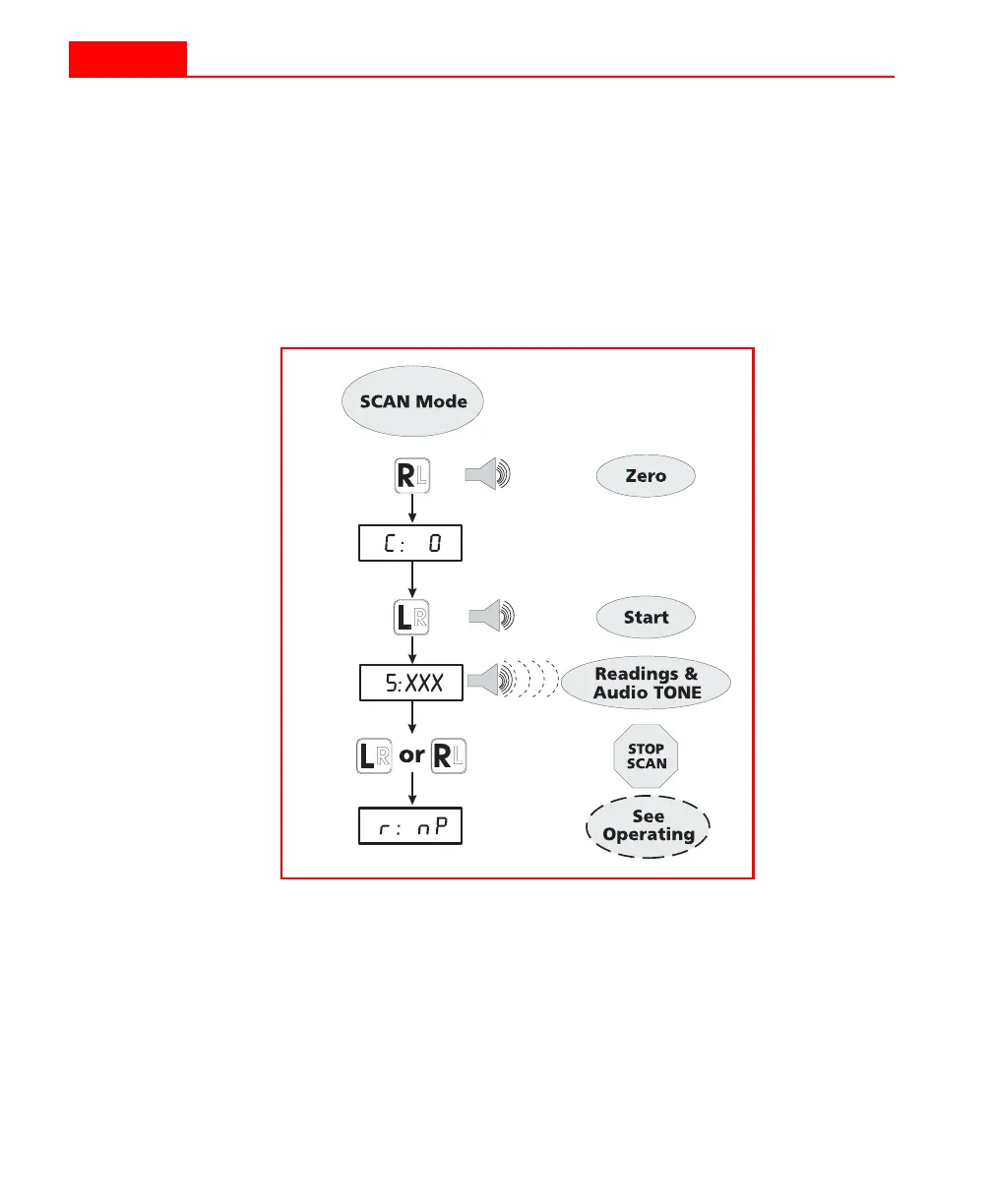

Figure 9
S
CAN
mode flowchart
