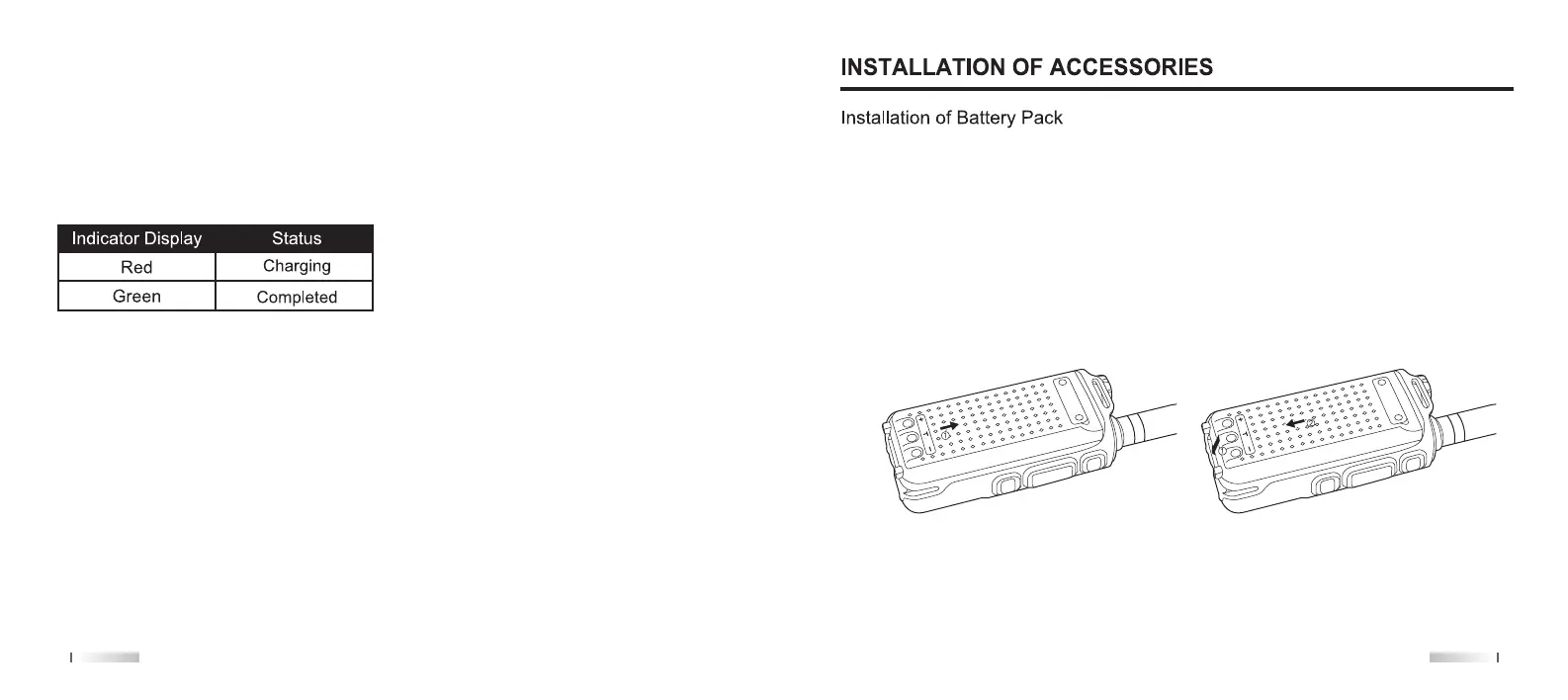

Charging Operation :
The light on the charger will indicate the charging status.
Battery Tips:
• Charge the battery before using for the first time. The battery is not fully charged at the
factory.
• A new battery will reach its optimal performance after two or three charging cycles.
• To optimize battery life, do not operate when the battery voltage is below 7.3 VDC
(approximately 20%) and do not store the battery for more than a couple of days with the
battery voltage above 8.2 VDC (approximately 80%).
1) Align the two grooves of the battery to the guide rail on the back of the aluminum
shell, then push the battery up until the battery latch locks. (Figure1)
2) To remove the battery, make sure the radio is off, then push the battery latch
down and slide the battery out from the radio. (Figure 2)
Figure 1
Figure 2
05 06
