9

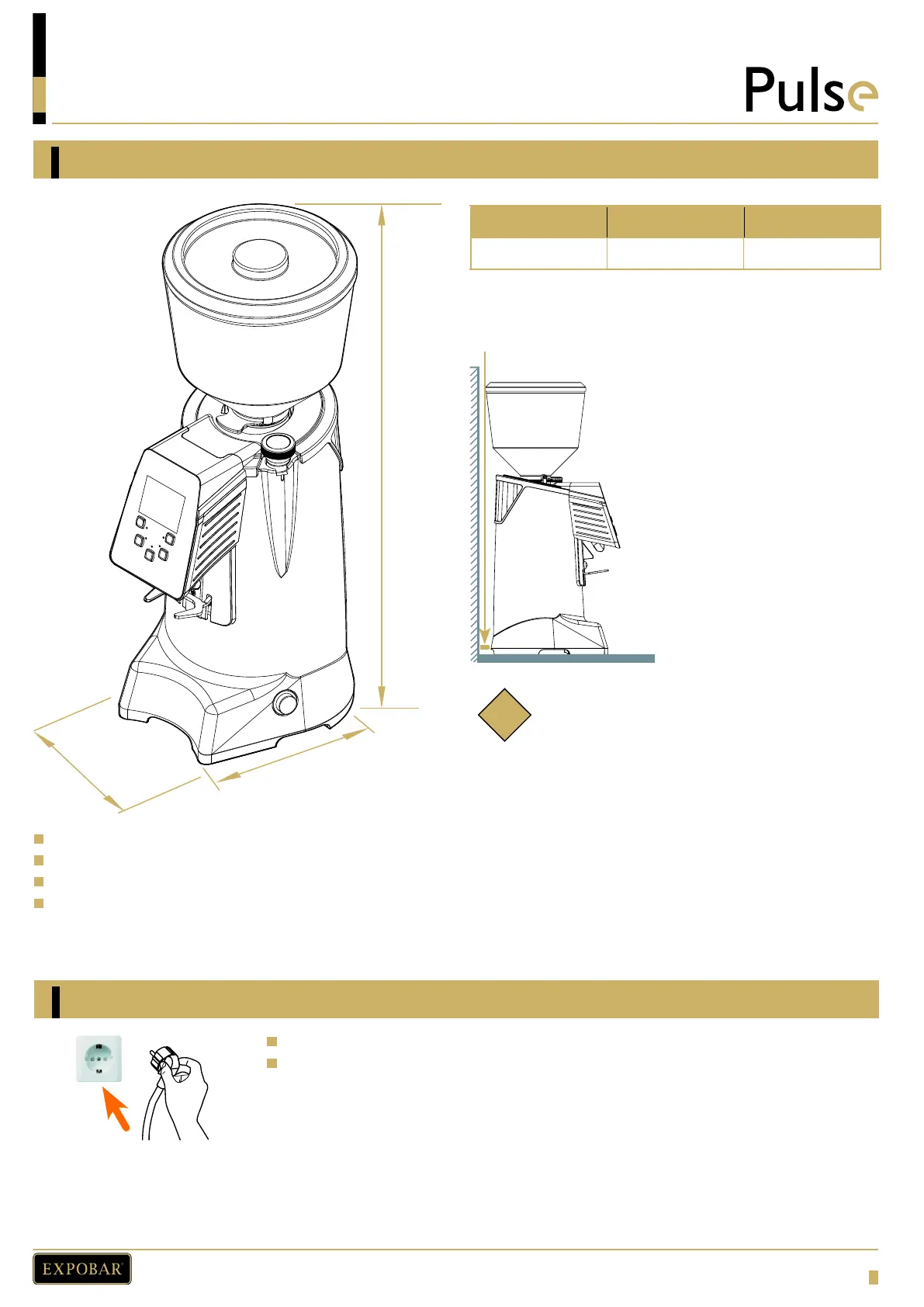

DIMENSION SKETCH
INSTALLATION AND START-UP
The minimum dimensions for the place of the machine must be 230 mm wide x 270 mm depth x 600 mm high.
Positionthemachineonafatandstablesurface, awayfromwaterandsourcesofheat.
It should be located in a dry environment, since excessive humidity will affect the machine negatively.
Donotcoverthemachinewithplasticflmorcloths.
Note:
Make sure that air is able to circulate behind
the machine (minimum 10 cm).
i
Positioning
L H Z
221 mm 554 mm 264 mm
H
Z
L
Only connect the machine to a grounded power supply.
Check the correct voltage and frequency on the technical data plate.
Electrical connection
MIN. 10 cm
