8-line Digital I/O to Ethernet Adapter
13
6. The 4 digital input pins are always monitored and de-bounced by
the firmware. Once their state is changed, the firmware will send
the current state string automatically. Please refer to the following

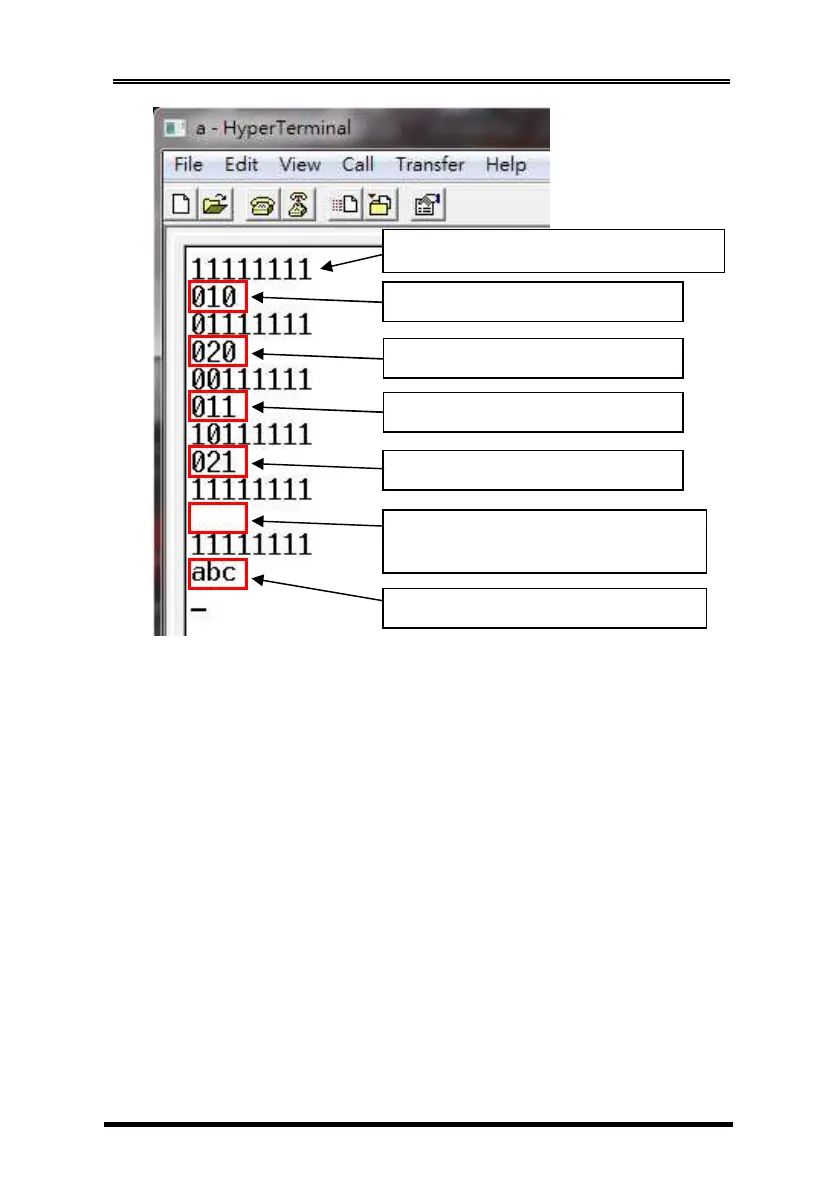

screen shot, it was actually tested with a short wire to ground the
DI_0, DI_1, DI_2, then DI_3 pins sequentially. You will see it
detected 0 (when grounded) then 1 (when released)
sequentially.
Status: Current state sent from Adapter
Command: Set Output #1 to 0
Command: Set Output#2 to 0
Command: Set Output#1 to 1
Command: Set Output#2 to 1
Press Enter only: Null command, to
read current state
Error command: No response
