pH300 V1.0 7/09
3

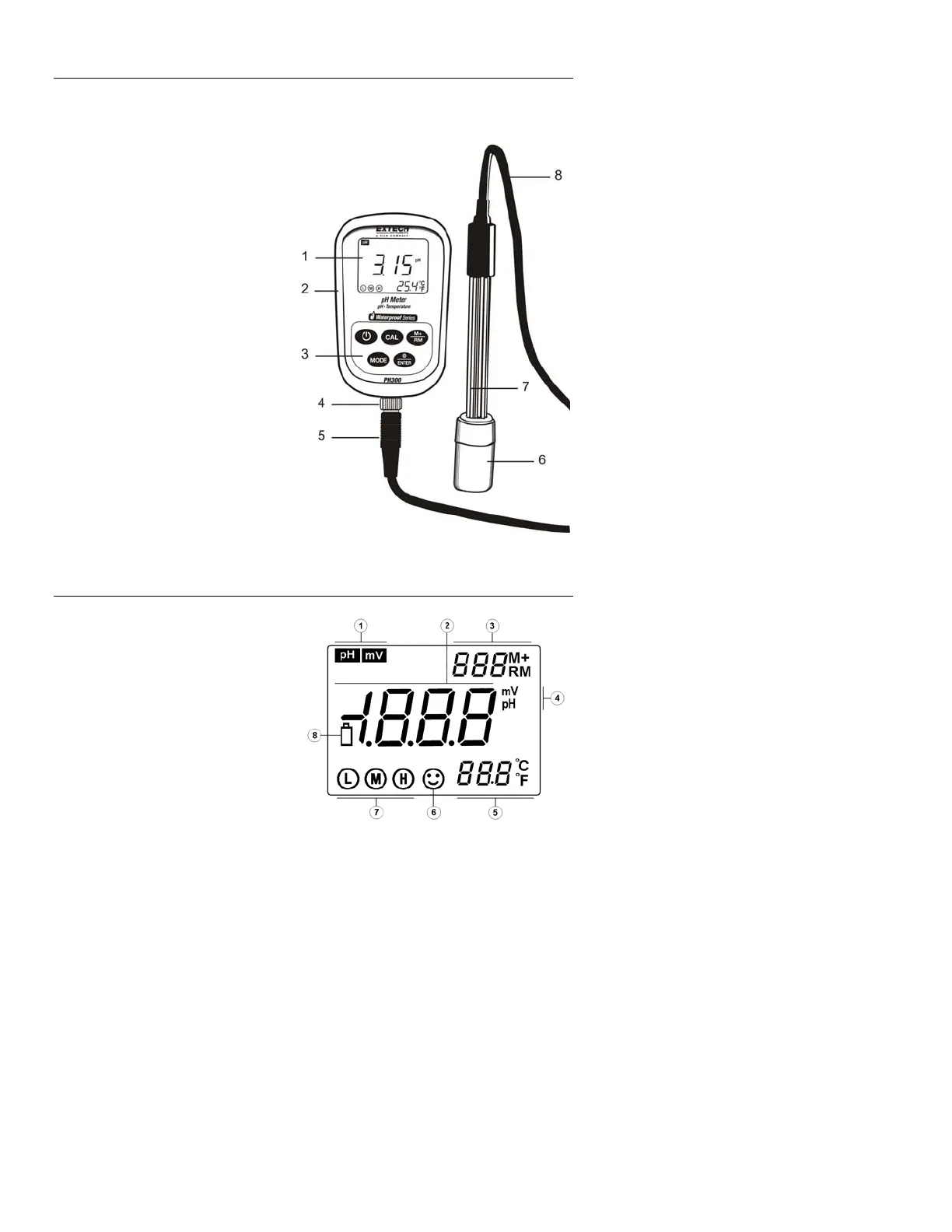

Meter Description
1. LCD Display (detailed in section below)
2. Rubber protective jacket (remove to access the rear battery compartment)
3. Keypad (detailed in section below)
4. Electrode connection jack
5. Electrode plug
6. Electrode measuring bulb
7. Electrode body
8. Electrode cable
Display Description
1. Parameter Mode icon
2. Measurement reading
3. 888 (Stored data serial number),
M+ (measurement to be stored
icon), RM (reading to be recalled
icon)
4. Unit of measure
5. Temperature reading
6. Stable measurement icon
7. Calibration icons
8. Low battery icon
