Page
12
3
3
.
.
2
2
.
.
2
2
S
S
e
e
t
t
t
t
i
i
n
n
g
g
D
D
i
i
p
p
S
S
w
w
i
i
t
t
c
c
h
h
e
e
s
s

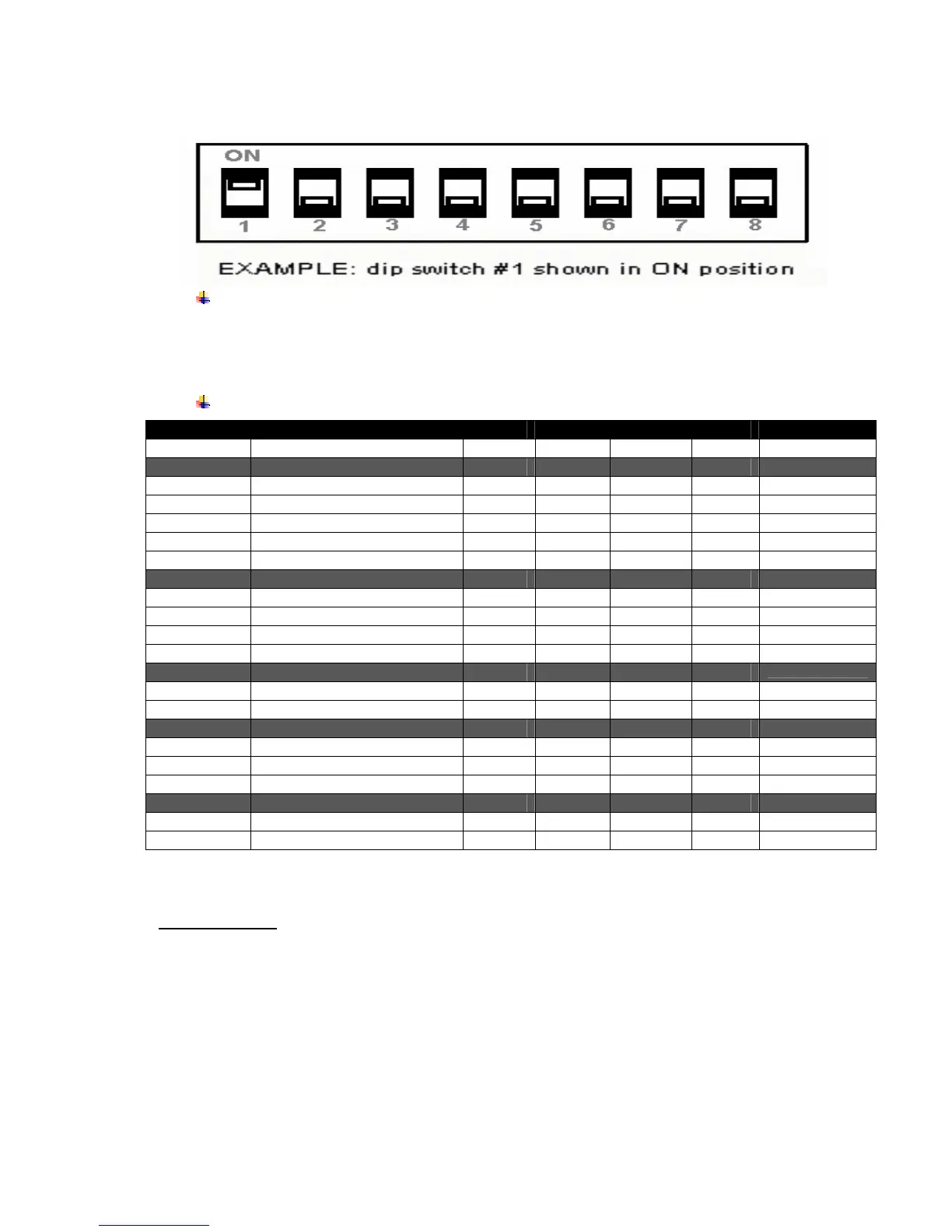

Note: Be careful when changing dip switch settings. Carefully use a
pointer on the dip switch you are going to change. DO NOT use a screw
driver or apply excessive force.
3
3
.
.
2
2
.
.
3
3
D
D
i
i
p
p
S
S
w
w
i
i
t
t
c
c
h
h
F
F
u
u
n
n
c
c
t
t
i
i
o
o
n
n
s
s
Note:(Developer’s refer to Programming Manual for more information)
Table 2 – DIP Switch Setting
Please note: In order for changes to the dip switch configuration to take
effect, the printer power must be reset.
Dip Switch Function Switch Switch Switch Switch Notes
1,2,3,6 Communication Interface SW1 SW2 SW3 SW6
RS 232 Off Off Off Also set 4&5
IrDA On On Off Also set 4&5
802.11b Off On On 38,400 baud
BT Off On On 38,400 baud
IR Direct Mode On On Off On 9600 Baud
4 & 5 COM 1 & 2 - Baud Rate SW4 SW5 RS232 rate
38,400 Off Off BT & 802
19,200 Off On
9,600 On Off
2,400 On On
4 & 5 COM 2 – IrDA Baud Rate SW4 SW5
IrDA BAUD rate
9600 Off Off
Fixed
9600 – 38.4 BAUD On Off
Variable
6 & 7 COM 1 & 2 - Parity Bits SW6 SW7
No Parity Off Off
Odd Parity On Off
Even Parity On On
8 Auto Power Save SW8
Power save disabled OFF
Manual On/Off
Power save enabled ON
Auto Power down
To Next Page
