CFI EXTEL LENA 18 - 02/2011 - V1

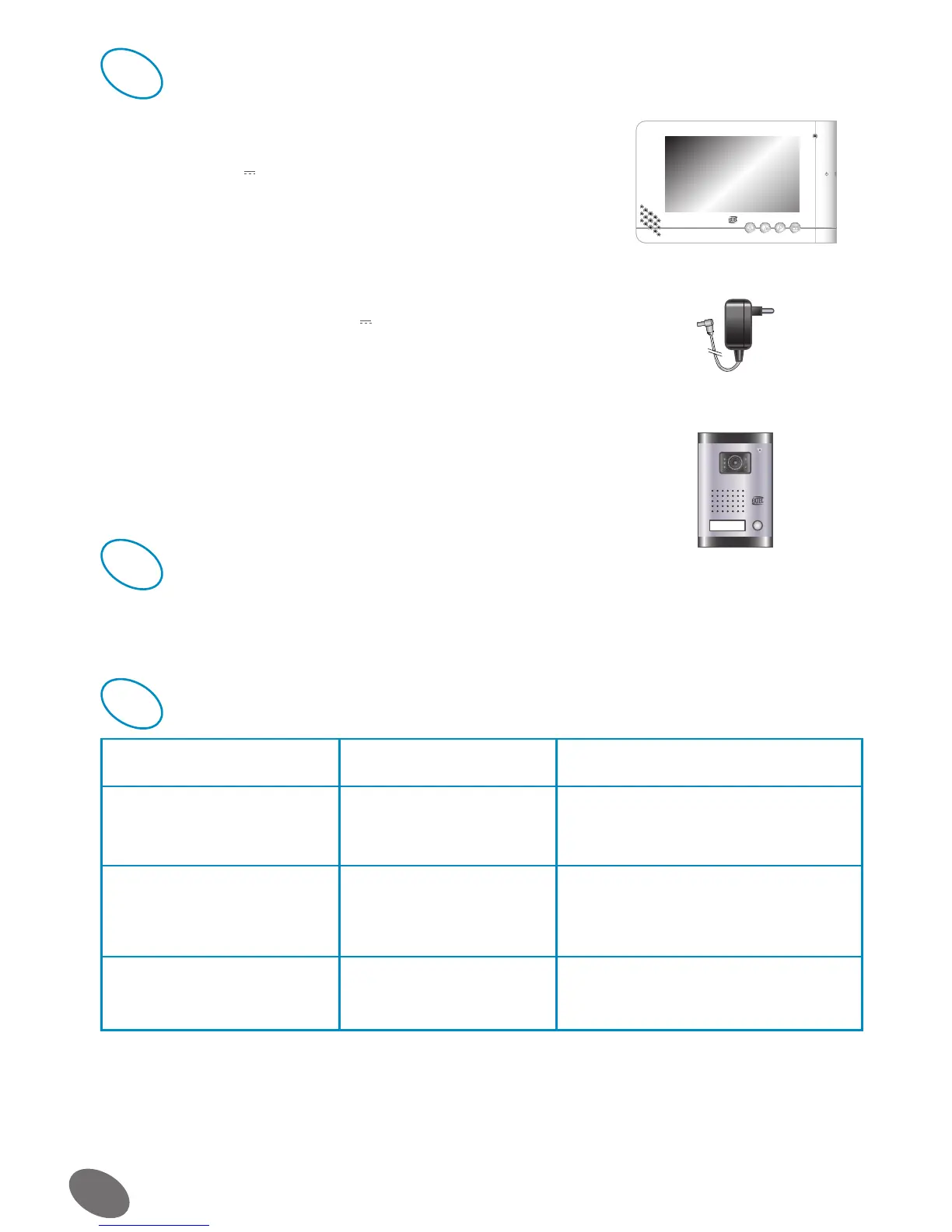

TECHNICAL SPECIFICATIONS
7
a. Monitor (MN LENA 18)
• Reference : 810218
• Power supply : 17 V
• Consumption : 11 W
• Screen : 7" - 18cm
• Resolution : 480 x 234dots
• Measurements (mm): 230x140x22
b. Power supply
• Adaptor : 100-240 V~, 50/60Hz ; 17 V , 1.5A
If the power supply cable has to be cut, ensure that the colour coding of the wires is
maintained when reconnecting.
c. Camera (PL LENA 18)
• Reference : 820218
• C-MOS colour video camera
• Viewing angle:77°
• Operating temperature (approximate): from -10°C to + 45°C
• Luminous sensitivity : Approx. 0,5 Lux (on night, use an additional lighting)
8
OPTIONS
• All Extel electric catches
• All Extel electric locks
• All Extel mechanisms
9
TECHNICAL ASSISTANCE - GUARANTEE
Problems Possible Causes Remedies
• The monitor doesn’t light up • No power is reaching the
monitor
• Check that the adaptor plug is correctly
pushed home.
• Poor image and/or sound • Installation location •
Check that the cables used are the correct
thickness and that the videophone connec-
tion cables are not in the same cable sheath
as 230 V cables.
• Image too bright •
Position of the video camera
• Do not point the video camera directly
at the sun or at reflecting surfaces.
If necessary, our technical website is at your disposal www.cfi-extel.com
HOTLINE : 0892-35-00-69 €WWFPLQ
Last version of the dowloadable manual in color on : www.cfi-extel.com
